In mechanical, I am showing the deformation on a constraction surface and turned on the wirefirm on display. However, it not only show the edge on the constraction surface but also show the edge out of the plane for the whole body.

How to only display the edge on the constraceion surface?

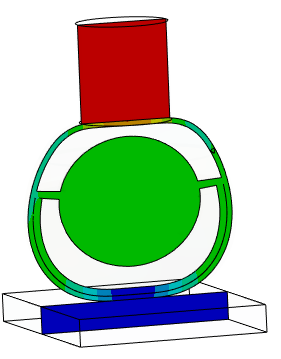

Like this:

[Sourabh Upadhyay]

Hi,

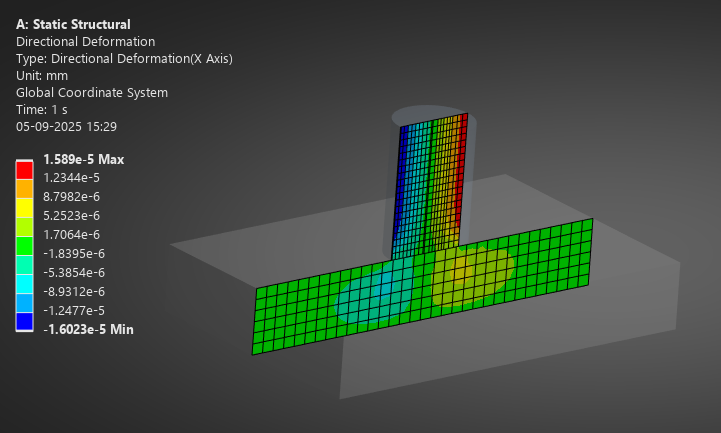

You can turn off the wireframe view option and try to see if the edges are showing. At my end it is working fine, as shown in image below:



Regards,

Sourabh

[jianing2016]

Hi, Sourabh,

Thank you for you reply, I think you are showing elements on the result like follwing setting on Result tag:

However, I want to only show the deformed edge on this construction surface. This is my setting:

on Display tag

on Result tag

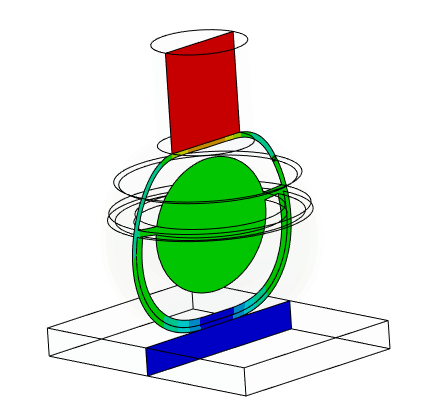

Then I got this

or Like your model

Looking forward your reply.

Thank you very much!

J
