Continuous Integration (CI) and Continuous Deployment (CD) are critical in modern software development. In a previous article, we covered ways of setting up CI/CD pipelines with Ansys SCADE.

Today, we will dive into the GitHub flavor of this process, using our open-source Ansys SCADE Actions for GitHub. We will set up and run a GitHub Actions pipeline on the Cruise Control example model provided with the SCADE Suite product, using a self-hosted runner to perform automated actions.

Prerequisites

Before setting up the GitHub workflow, ensure that you have:

• A GitHub repository containing a SCADE Suite model
• Basic knowledge of GitHub Actions
• A self-hosted runner with SCADE Suite installed (this will be used to launch SCADE in batch mode to perform automatic actions on the model).

Setting up the self-hosted runner

Ansys SCADE requires a self-hosted runner so that the GitHub Actions pipeline can run automated actions by invoking SCADE in batch mode.

Follow these steps to set up your runner:

• Navigate to your GitHub repository and go to Settings > Actions > Runners.
• Select New self-hosted runner and choose your operating system.
• Follow the provided instructions to install and configure a Windows runner.
• Ensure that SCADE Suite is installed and accessible from the runner environment.

Creating a single self-hosted runner is enough to get started. As you scale up your SCADE CI/CD activities and the volume of jobs increases, you may want to create additional runners to spread the workload.

SCADE Suite GitHub Actions workflow

We will now create a GitHub Actions workflow, stored under .github/workflows/scade-ci.yml that automates the process of checking, analyzing, and testing a SCADE model.

Our workflow will perform four sequential tasks on our model. Each of these tasks launches SCADE in batch mode on our model and produces a report that is archived on the workflow run for later reference. Here is the sequence of actions:

• scade-check: validate the integrity of the SCADE model.
• scade-metrics: compute model complexity and quality metrics.
• test-execute: run automated model tests.
• suite-report: generate human-readable documentation detailing the model’s architecture and structure, down to individual operator inputs and outputs.

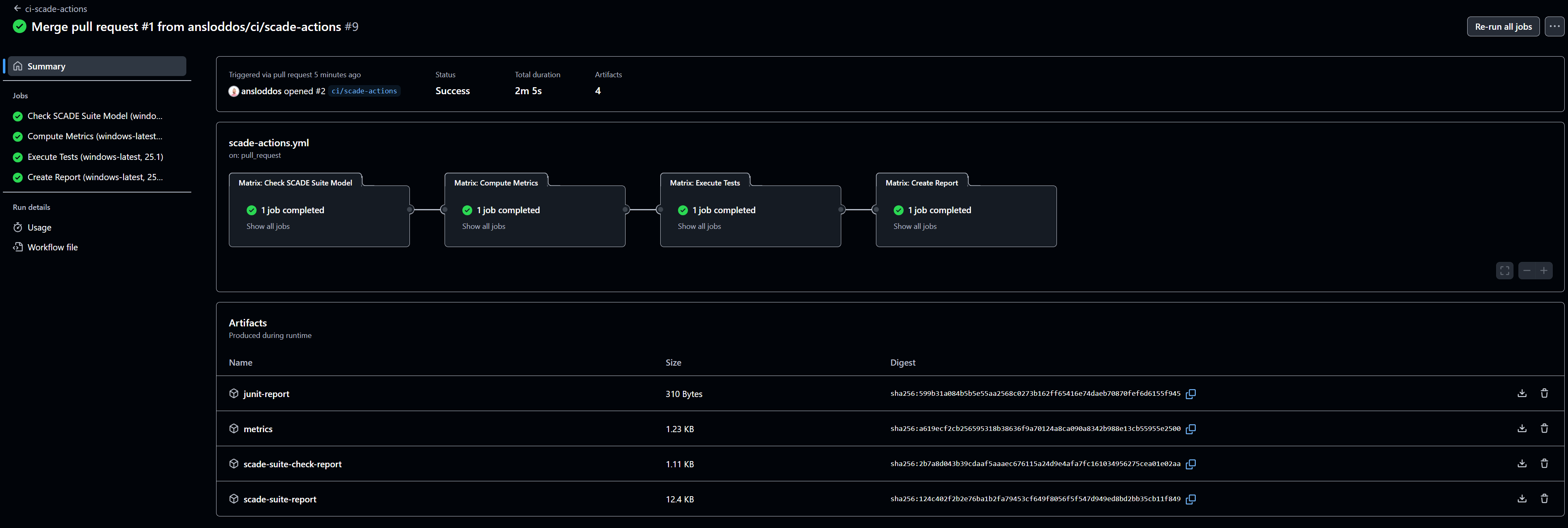

Below is a screenshot that shows a successful run of this workflow on the CruiseControl example model provided with SCADE Suite. Notice the artifacts attached to the workflow in the bottom half of the image:

And here is the complete YAML file describing the workflow:

name: ci-scade-actions

on:
  pull_request:
  push:
    tags:
      - "*"
    branches:
      - main
  workflow_dispatch:

jobs:
  scade-check:
    name: "Check SCADE Suite Model"
    outputs:
      scade-directory: ${{ steps.get-scade-dir.outputs.scade-directory}}
    runs-on: [self-hosted, 'SCADE']
    strategy:
      matrix:
        os: [windows-latest]
        scade-version: ['25.1']
      fail-fast: false

    steps:
      - name: "Clone Project"
        uses: actions/checkout@v4
      - name: "Get SCADE Installation Directory"
        uses: ansys/scade-actions/get-scade-dir@v2
        id: get-scade-dir
        with:
          scade-version: "25.1"
      - name: "Check Model"
        uses: ansys/scade-actions/suite-check@v2
        id: suite-check
        with:
          scade-dir: ${{steps.get-scade-dir.outputs.scade-directory}}
          project: "CruiseControl/CruiseControl/CruiseControl.etp"
          configuration: "KCG"
      - name: "Upload Checker report artifacts"
        uses: actions/upload-artifact@v4
        with:
          name: "scade-suite-check-report"
          path: "${{ steps.suite-check.outputs.report}}"
          retention-days: 7
          if-no-files-found: error

  scade-metrics:
    name: "Compute Metrics"
    runs-on: [self-hosted, 'SCADE']
    outputs:
      scade-directory: ${{ needs.scade-check.outputs.scade-directory}}
    strategy:
      matrix:
        os: [windows-latest]
        scade-version: ['25.1']
      fail-fast: false
    needs: [scade-check]

    steps:
      - name: "Compute Metrics"
        uses: ansys/scade-actions/suite-metrics@v2
        id: suite-metrics
        with:
          scade-dir: ${{needs.scade-check.outputs.scade-directory}}
          configuration: "MetricRule"
          project: "CruiseControl/CruiseControl/CruiseControl.etp"
      - name: "Upload Checker report artifacts"
        uses: actions/upload-artifact@v4
        with:
          name: "metrics"
          path: "${{ steps.suite-metrics.outputs.report}}"
          retention-days: 7
          if-no-files-found: error

  test-execute:
    name: "Execute Tests"
    runs-on: [self-hosted, 'SCADE']
    outputs:
      scade-directory: ${{ needs.scade-metrics.outputs.scade-directory}}
    strategy:
      matrix:
        os: [windows-latest]
        scade-version: ['25.1']
      fail-fast: false
    needs: [scade-metrics]

    steps:
      - name: "Execute Tests"
        uses: ansys/scade-actions/test-execute@v2
        with:
          scade-dir: ${{needs.scade-metrics.outputs.scade-directory}}
          configuration: "Test"
          test-project: "CruiseControl/CruiseControl_Test/CruiseControl_Test.etp"
          results-project: "CruiseControl/CruiseControl_Result/CruiseControl_Result.etp"
          junit-report: "junit-reports/Model.xml"
      - name: "Upload JUnit report to artifacts"
        uses: actions/upload-artifact@v4
        with:
          name: "junit-report"
          path: "junit-reports\\Model.xml"
          retention-days: 7
          if-no-files-found: error

  suite-report:
      name: "Create Report"
      runs-on: [self-hosted, 'SCADE']
      strategy:
        matrix:
          os: [windows-latest]
          scade-version: ['25.1']
        fail-fast: false
      needs: [test-execute]

  steps:
    - name: "Create Report"
      uses: ansys/scade-actions/suite-report@v2
      id: suite-report
      with:
        scade-dir: ${{ needs.test-execute.outputs.scade-directory }}
        project: "CruiseControl/CruiseControl/CruiseControl.etp"
        configuration: "RTF"
    - name: "Upload the document to artifacts"
      uses: actions/upload-artifact@v4
      with:
        name: "scade-suite-report"
        path: "${{ steps.suite-report.outputs.report }}"
        retention-days: 7
        if-no-files-found: error

Let’s break down the contents of this file.

First, we define a name for our workflow in the name: section. We’ll simply call it ci-scade-actions.

Next, we define what triggers our workflow in the on: section. We want it to run on:

• Pull Requests: ensures changes are validated before merging.
• Push Events: any push to the main branch or to a tag.
• Manual triggers: Through workflow_dispatch. This allows manual triggering via the GitHub web interface, API or CLI (useful for testing).

Finally, we get the main part: listing the jobs that compose the workflow and how they chain together (jobs: section). Each job in the sequence depends on the previous one (needs: section). This means it won’t run unless the previous job is finished and successful.

Below is some detail on the steps performed by each job:

• scade-check:
  • Clone the repository onto the runner machine.
  • Determine the SCADE installation directory (get-scade-dir).
  • Verify semantic correctness of the SCADE model (suite-check on the main operator, CruiseControl.etp).
  • Upload validation report for archival.
• scade-metrics:
  • Compute metrics using configuration “MetricRule”, defined inside the model.
  • Upload the generated metrics report for archival.
• test-execute:
  • Execute tests (test-execute).
  • Store results in JUnit XML format.
  • Upload test results for archival.
• suite-report:
  • Create a model documentation report using the “RTF” configuration, defined inside the model.
  • Upload the report as an artifact for archival.

Conclusion

In this article, we used Ansys SCADE Actions for GitHub to automate the verification, testing, and reporting of a SCADE Suite model in a CI/CD pipeline. Such pipelines ensure that safety-critical software is rigorously validated with every code change, improving development efficiency and reliability.

Ready to get started on your own models? Visit the Ansys SCADE Actions documentation.
