Why cylindrical coordinate system is rotated

    • February 19, 2026 at 4:57 am
      vickyvignesh.offi
      Subscriber

    • February 19, 2026 at 4:59 am
      vickyvignesh.offi
      Subscriber

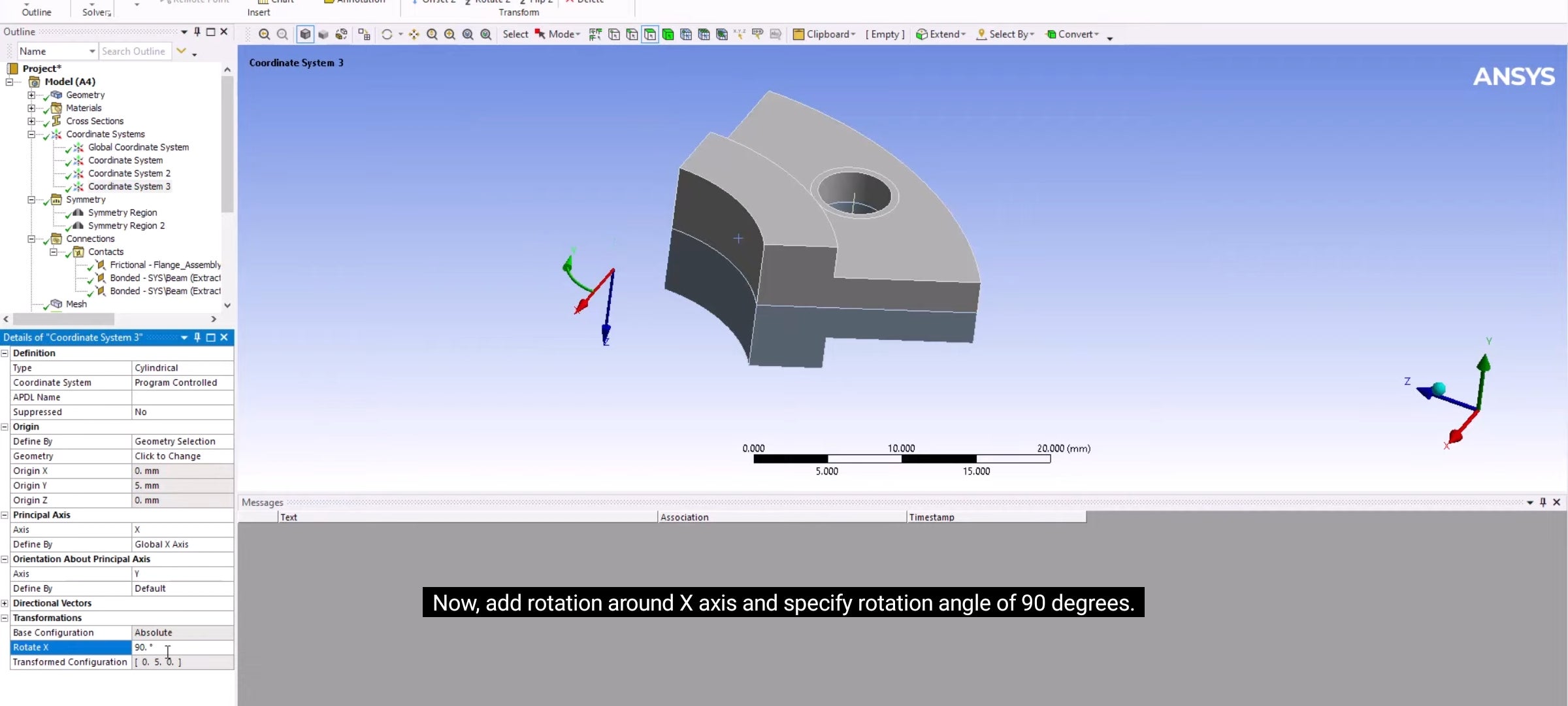

      It is said that cylindrical CS should match with axis of symmetric model, but even after rotating it doesn't match, why it is done ?

    • February 19, 2026 at 5:01 am
      vickyvignesh.offi
      Subscriber

      This is in When to take advantage of symmetry in ANSYS mechanical Youtube video

    • February 19, 2026 at 10:59 am
      Deepak
      Ansys Employee

      Hi,
      After rotating the angular coordinate (y-axis), is matching with geomtery.

      Thanks,

      Deepak

    • February 19, 2026 at 11:16 am
      vickyvignesh.offi
      Subscriber

      No, in mid of video, they have assigned a co-ordinate system for the symmetric plane, but this cylindrical coordinate system and symmetry plane assigned coordinate system didn't match
