Racetrack coil primative for dipole

- December 10, 2021 at 5:24 pm

  sda
  Subscriber

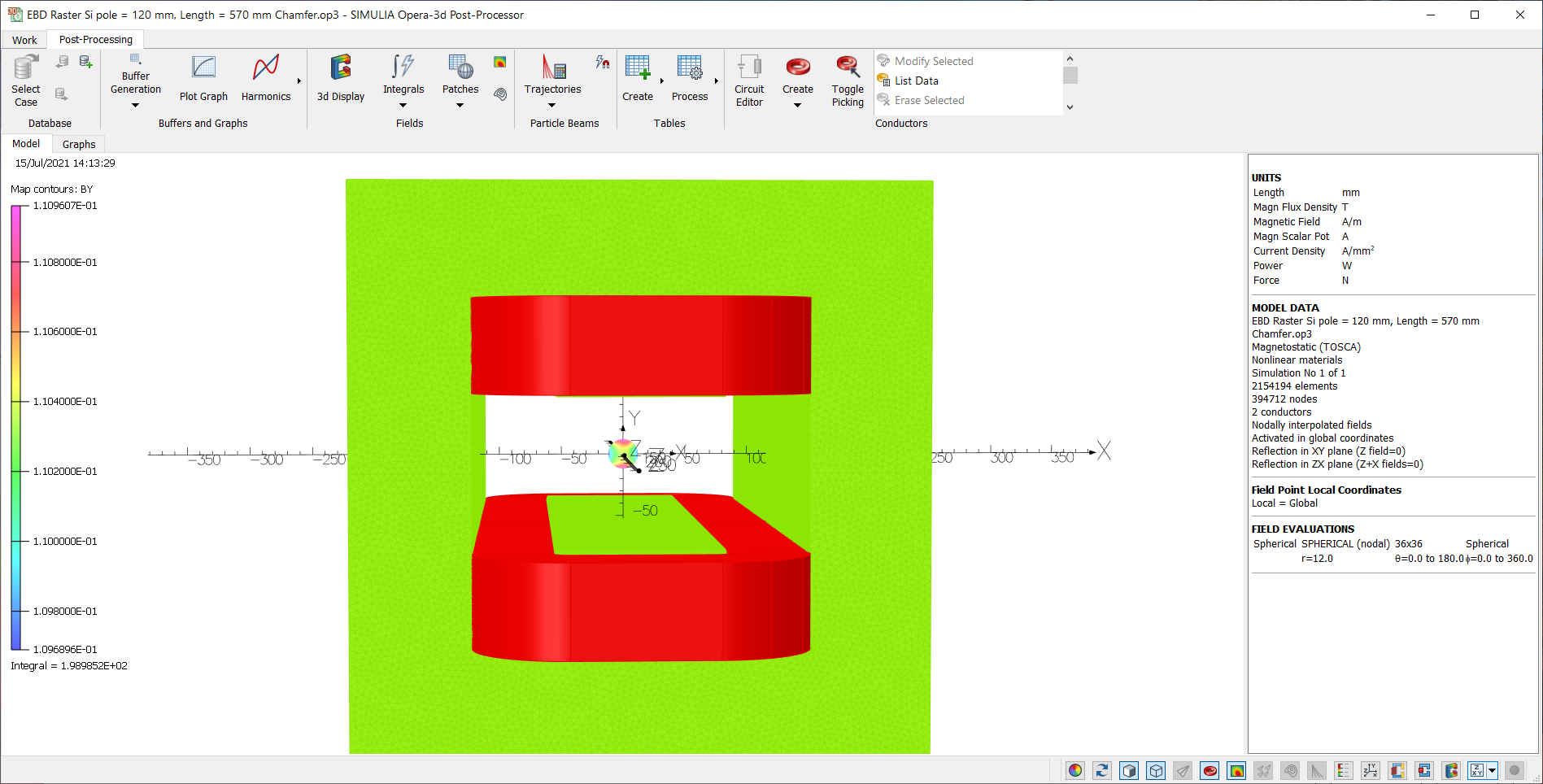

  I was wondering if anyone has made or knows where I can get a Maxwell primative for a racetrack coil for a accelerator dipole? This is a very common coil used for accelerator dipoles. It looks like the coil in this model.
- December 13, 2021 at 5:09 am

  Praneeth
  Ansys Employee

  Please let us know which Ansys tool and its version that you are using to help us serve you better.
  Best regards.
- December 13, 2021 at 4:28 pm

  sda
  Subscriber

  I'm using the latest version of Maxwell.
- December 14, 2021 at 2:01 pm

  Navya Chode
  Forum Moderator

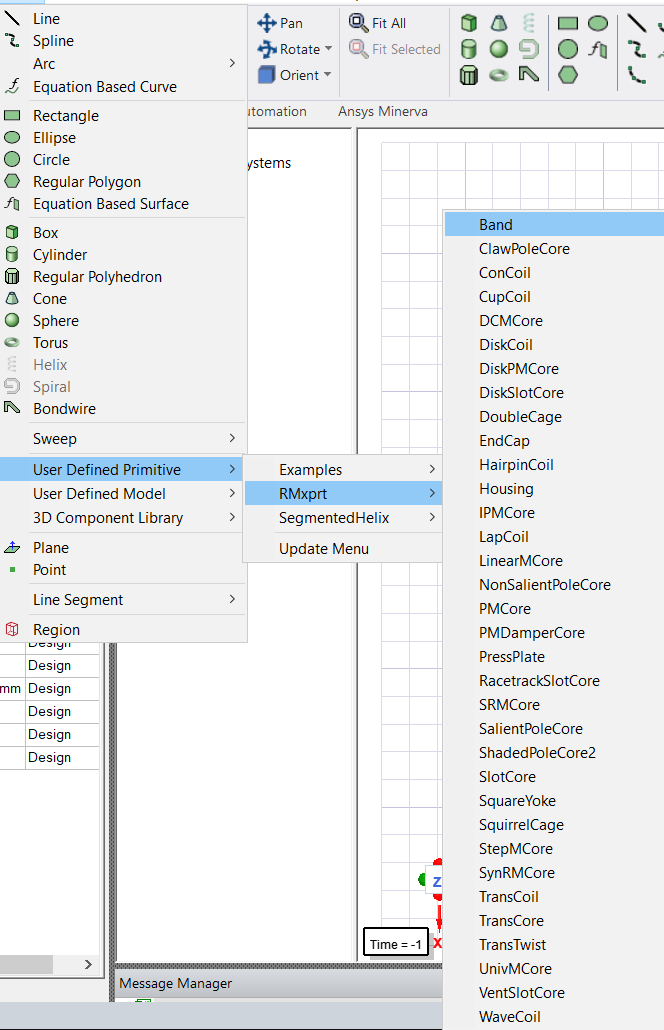

  There are only UDPs that are under Draw>User defined Primitives in the Maxwell.

  There is no pre-defined UDP for the Application you said.
  However, you may be able to build it with the coils in the UDPs or draw one using 3D modeler draw options.

  Regards Navya
- December 14, 2021 at 4:10 pm

  sda
  Subscriber

  That is too bad. This is a very basic coil design that is used in most accelerator mangets and it would be nice to have this an UDP. If I did have this I could use Maxwell instead of Opera. Thanks for the info.
- December 29, 2021 at 8:01 pm

  HDLI
  Ansys Employee

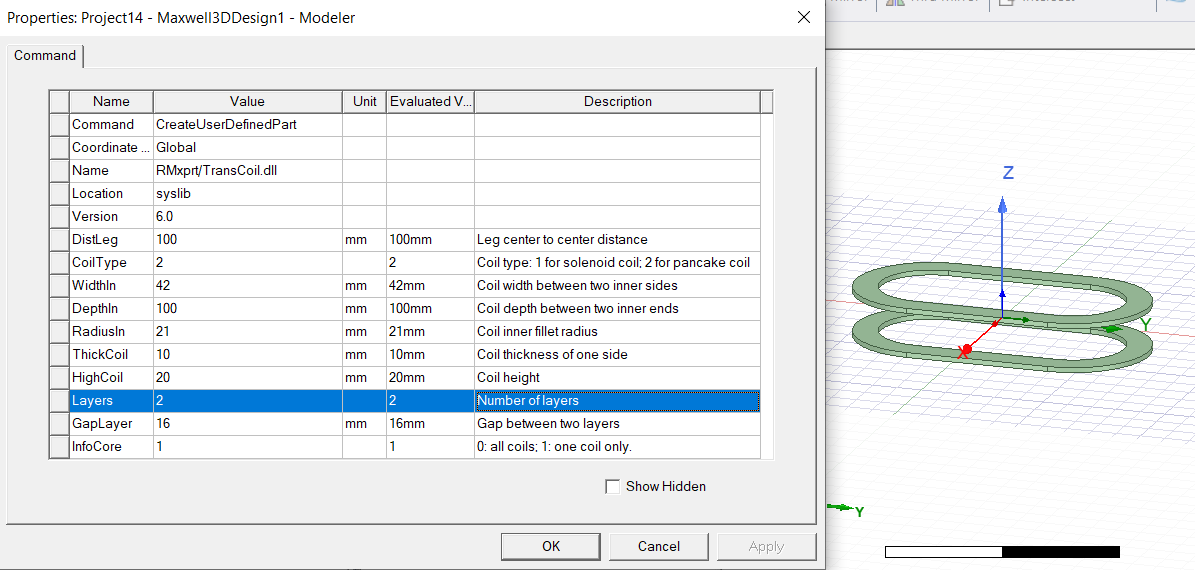

  You could use UDP (User Defined Primitive) to create the racetrack coil for the simulation when using "TransCoil". Additionally, it is easy to use Maxwell draw tools, SpaceClaim or other CAD to build the FEA model's geometry. Thanks.
  HDLI
- January 25, 2022 at 6:16 pm

  sda
  Subscriber

  Thanks, the TransCoil is what I've been looking for.
