[minusunny]

Hi,

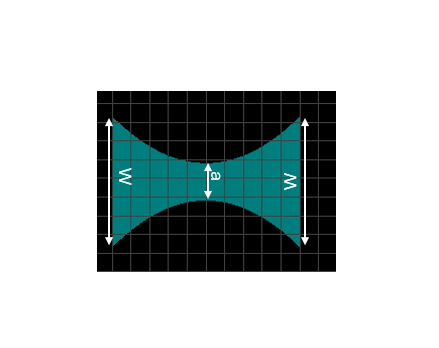

I am trying to draw a structure like this as an SWG width as W and a in the middle. May i know how to do this with a custom structure as a lumerical script.How do i describe this in the code? Is it possible to get a  sample code for this arrangement?





Minu

start = 0e-06;

mm = N*period;

 for(i = 1:N)

{

stop = start + period;

 edge = stop - dc*period;

addlen = (W_2-factor*W_2)/N;

addrect;

set('name','seg_mm'+num2str(i));

set('x max',stop);

 set('x min',edge);

set('y',0);

set('y span',factor*W_2+addlen*i);

set('z',0);

set('z span',T);

set('material',coremat);

addtogroup('mm');

start = stop;

}

I have this code but needs to be arranged in parabolic shape as shown above. How can i modify this

[Niki Papachristou]

Hi Minusunny,

Thank you for reaching out to us! We have this object in our libery and there you can see the equation that is used to be built:

I believe that if you use the script commands, addcustom - Script command, you will be able to built this structure.

Kind Regards,

Niki
