Meshing problem for circular and twisted geometries in Maxwell

    • Vedant Sane
      Subscriber

      Hello,

      I am basically faing the issue with proper meshing for 3D-Litz wire in Maxwell.

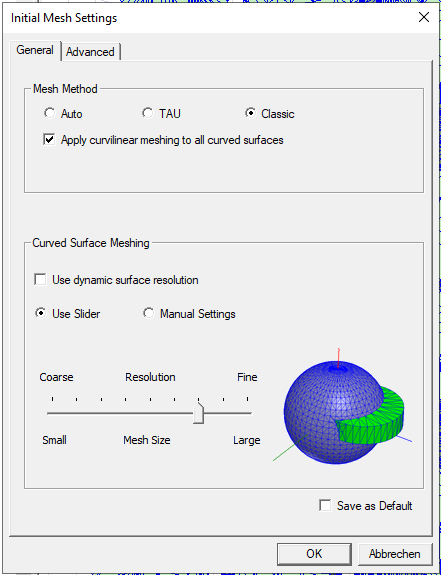

      I used the following mesh settings:

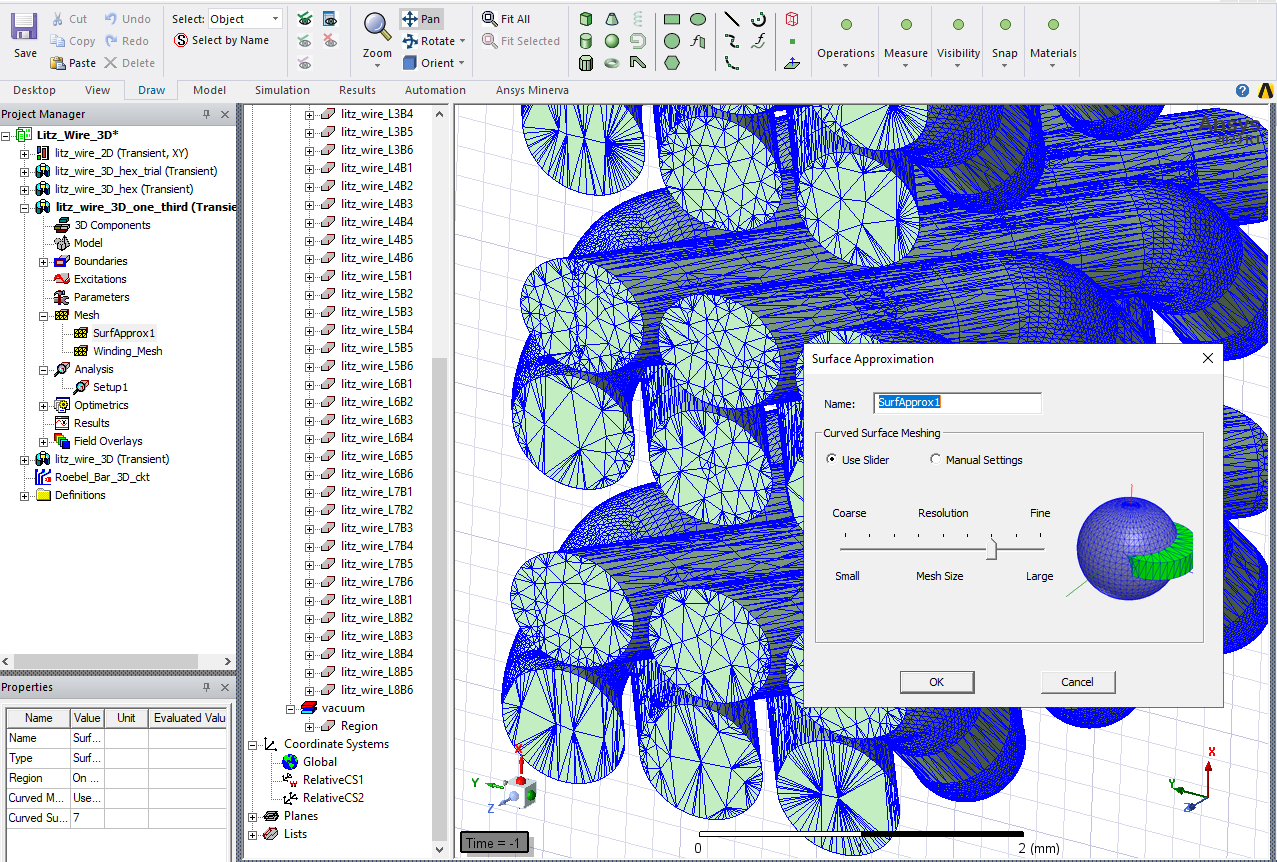

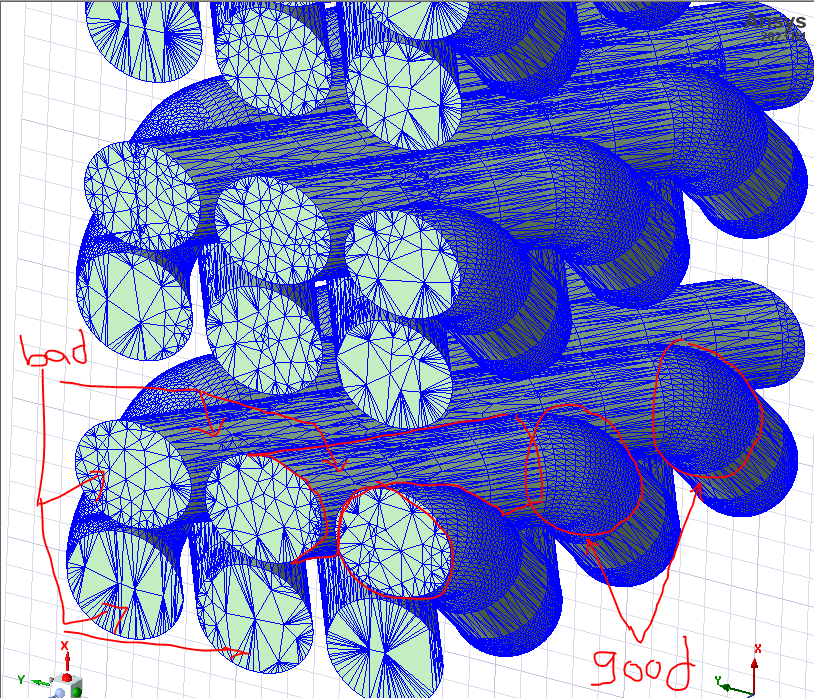

      As you can see in the above image, mesh quality is actually good at the bends. However, it is not meshing properly on the straight curvilinear surface and on the cross-sectional faces of the wires. I hv also tried meshing with skin depth but it does not seems to be work out. Any inputs for this problem would be much appreciated. Thanks!

    • Ivonne Marti
      Ansys Employee

      Hello Vedant,

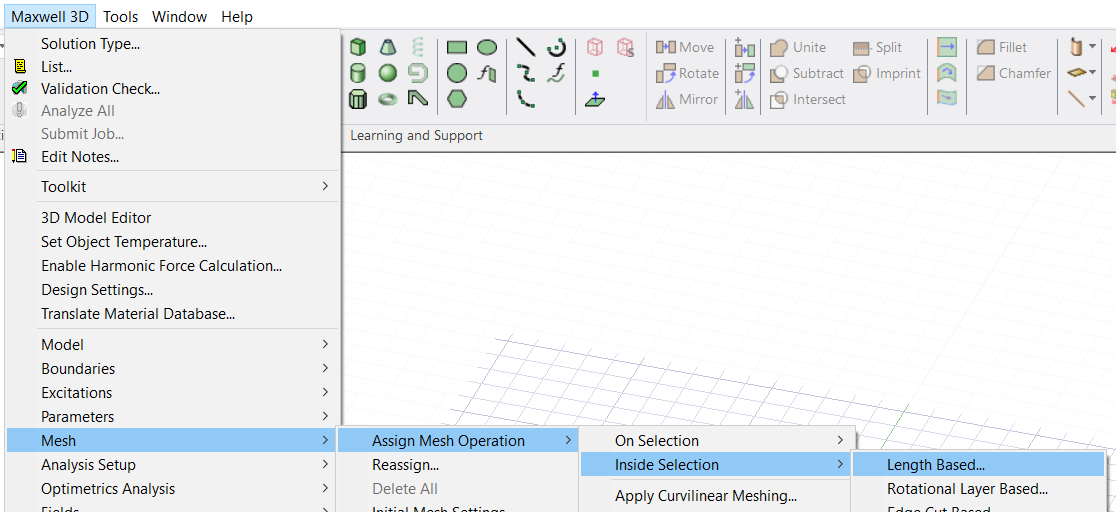

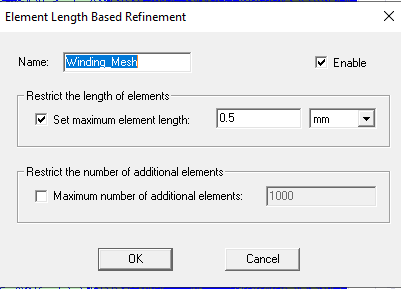

      The Surface Approximation mesh operation allows you to control the mesh element size on the surface of the object. If I look the “bad” mesh, I can see that you are pointing the inner part of the cable. So, to control the mesh element size inside the object you should use the Inside Selection/Length Based mesh operation (see image below). I would suggest combining both mesh operations in order to get a “good” mesh. Ivonne



    • Vedant Sane
      Subscriber

      Hello Ivonne,

      I actually tried meshing with inside selection. However, it does not seem to work. Is there any way by which I can send you the model? Would it be possible for you to have a look at it?

      Thanks!

    • Ivonne Marti
      Ansys Employee

      Hello Vedant,

      If you want that we check the model, then you need to open a support ticket. We will be more than happy to help you.

      Kind regards

      Ivonne

    • Vedant Sane
      Subscriber

      Hello  Ivonne,

      Can you pls guide me how to raise a support ticket?

    • Ivonne Marti
      Ansys Employee

      Hello Vedant,

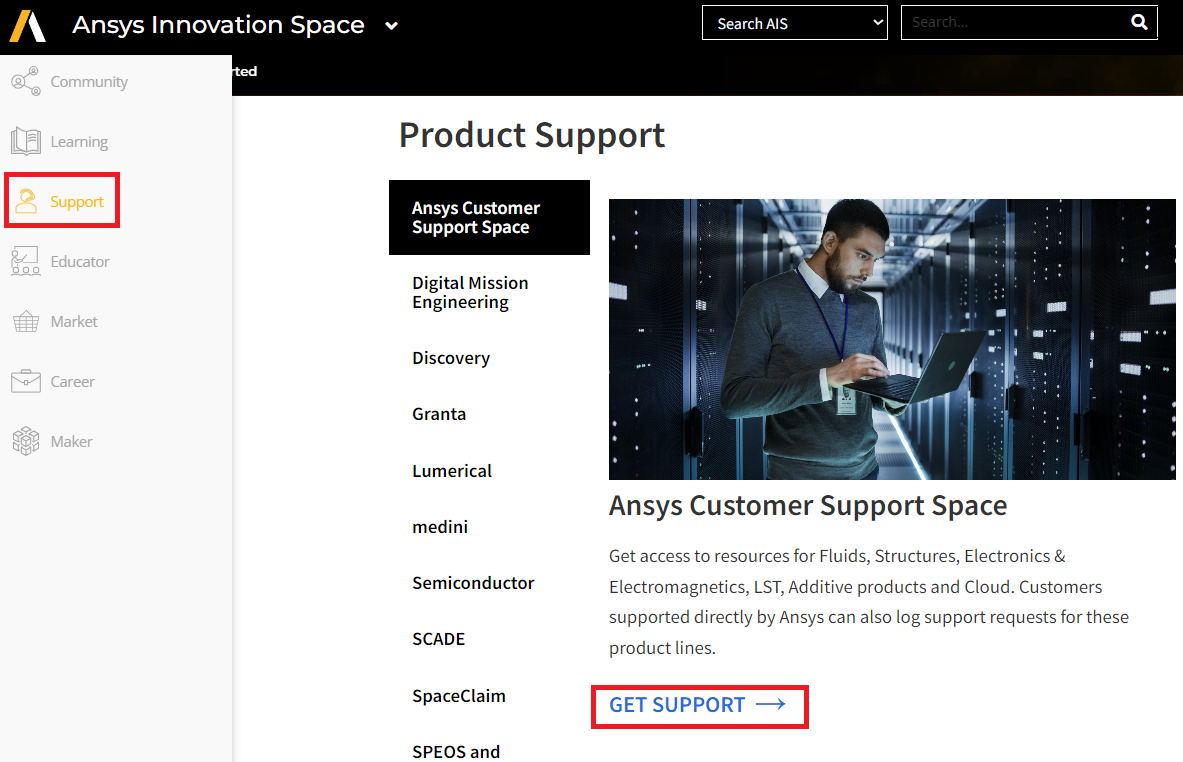

      Sure, if you want to raise a support ticket you need to select Support on the left side of the screen and then select Get Support (see below), another way is via the Ansys Customer Portal. Ivonne
