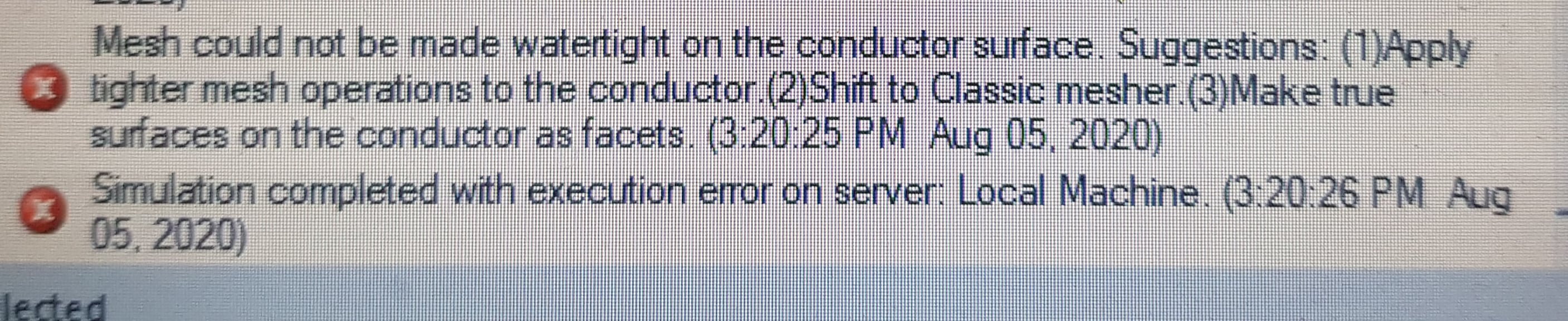

Mesh could not be made watertight on the conductor surface

- August 5, 2020 at 11:28 am

  sarathmail63
  Subscriber
- August 5, 2020 at 12:27 pm

  Karthik Remella
  Administrator

  Hello,nWhich tool are you using? Is this Icepak?nThanks.nKarthikn
- August 5, 2020 at 5:19 pm

  sarathmail63
  Subscriber

  I'm using Maxwell3Dn
- October 22, 2020 at 11:49 am

  sarathmail63
  Subscriber

  Waiting for response. Lemme know the exact reason for this.nThanks in advance.nn
- October 22, 2020 at 1:43 pm

  Navya Chode
  Forum Moderator

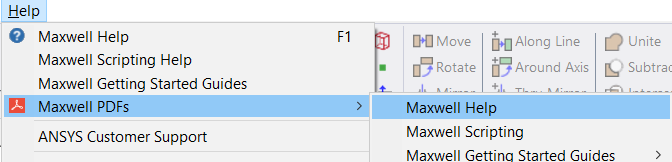

  Hi,nThis can happen when you have curved surfaces with sharp bends.nSince you haven't provided any details about your mode, try the following.n1)If you have any cylindrical objects in model (like conductors/coils) model them using a regular polyhedron. This makes the objects faceted rather than curved true surfaces.n2) Go to Maxwell>Mesh>Initial mesh settings and change to classic and move the slider on to more fine mesh.n3) Additionally, you can refer to Maxwell help topics on meshing quick linksnn nBest RegardsnNavya
- October 23, 2020 at 12:53 pm

  AndyJP
  Subscriber

  HFSS mesher is veeery bad on curved surfaces. It does not support vertex coherency on adjoint surfacesnNever use 3D-curved conductors in HFSS. Either import prebuilt mesh, or set a numbet off vertices for every curve.n
