Hello,

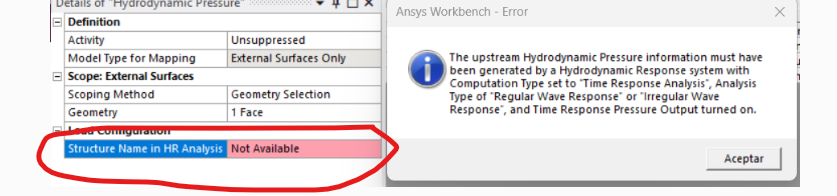

I am trying to use HD outputs in Static Structural but I am getting this error:

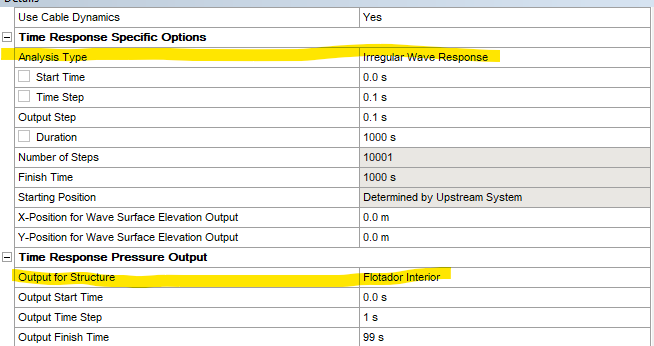

Even if HR Irregular Wave Response is used and Pressure Output turned on.

Thanks,

[Nanda]

Hello Eugenio,

Can you check why your "structure name in HR Analysis" is not set. When your Hydrodynamic Diffraction analysis contains more than one structure, you must select the name of the structure (in the Hydrodynamic Diffraction system) that you intend to map loads from using the Structure Name in HD Analysis option.

8.1.4. Importing Hydrodynamic Diffraction Pressures and Loads to Mechanical (ansys.com)

Regards,

Nanda.

Guidelines for Posting on Ansys Learning Forum

How to access ANSYS help links



[Eugenio Baita Saavedra]

Hello Nanda,

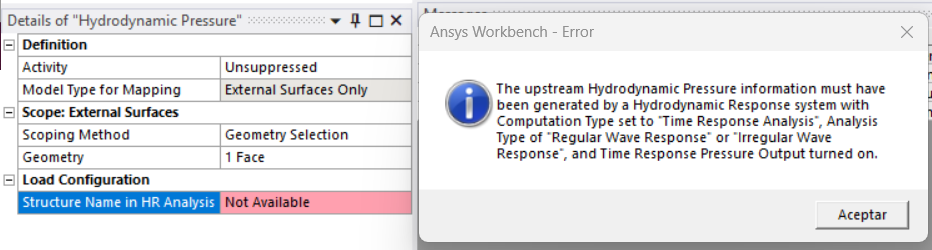

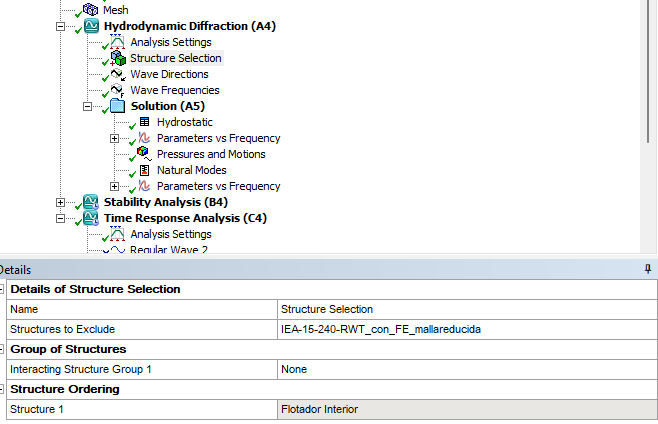

I dont know where to select the name of the structure in the HD system you are referring to. Only 1 structure is selected:

I am correctly having the Time Domain Pressures in HR System, but can not select the Strcuture Name in HR Analysis

Regards,

Eugenio

[Nanda]

Hello Eugenio,

In the first screenshot you shared, it should be scoped to geometry where you're intending to apply the load (As the Ansys help document suggests). I'm not familiar with your workflow, perhaps sharing more data like your model screenshots and what you're trying to accomplish would help other engineers solve your issue.

All the best,

Nanda
