Hi everyone,

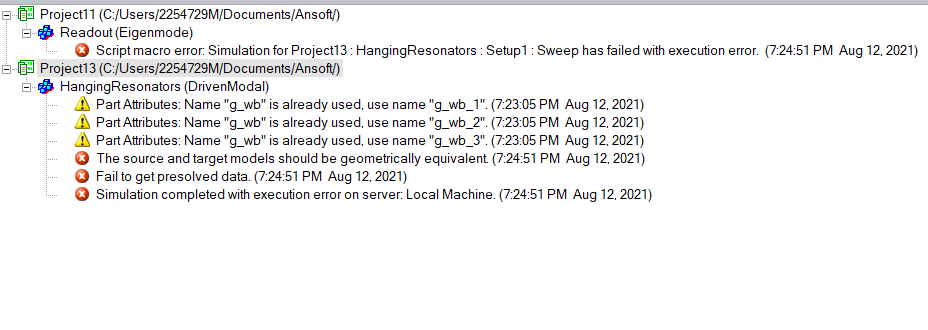

I am trying to import a mesh from an eigenmode solution into a drivenmodal solution. The design is a coplanar waveguide resonator coupled to a feedline. The method I am trying with the drivenmodal setup is HFSS->Analysis Setup->Add Solution Setup...->Advanced->Import Mesh. The current result of the mesh is shown below and the wanted mesh from the eigenmode solution is shown last. I have also added the error I retreive from analysis which is the first below. Any help is much appreciated.

[Ashish Khemka]

This is a duplicate post. I have moved your earlier post to the Electronics category.

Regards Ashish Khemka

[Praneeth Munaga]

Answer to this post is being provided here HFSS seed mesh from eigenmode to drivenmodal ÔÇö Ansys Learning Forum.
I am closing this one as this is duplicate and kindly refrain from creating such duplicate posts in future.
All the very best.
