Ansys Maxwell cosimulation with simplorer

- August 23, 2023 at 7:23 am

  Sampath kumar A V N
  Subscriber

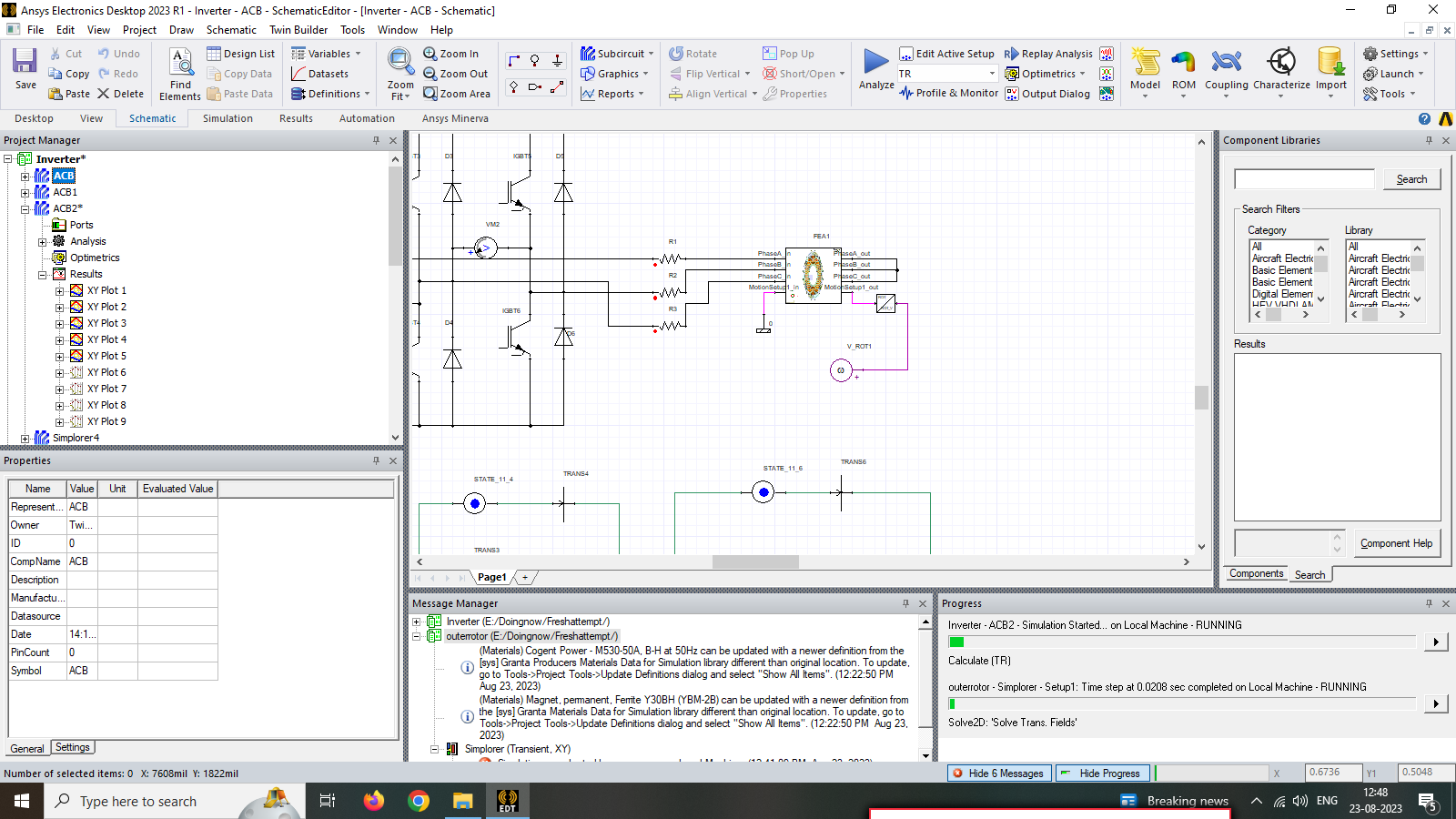

  I need to analyse the performance of synchronous reluctance motor with load torque. May i know the arrangement... Find the circuit in the attachment
- August 24, 2023 at 7:48 pm

  Vedant Sane
  Subscriber

  Hey, I am working on similar topic. I might help. Could you able to send me your model?
- August 25, 2023 at 3:08 pm

  HDLI
  Ansys Employee

  Hello All,
  Please find an example for PM motor in "C:\Program Files\AnsysEM\v232\Win64\Examples\Twin Builder\Applications\PowerSystem\PMSM_SpeedControl_EMI.aedt".
  You could use torque component, mass or generator as a load. You may need to use speed control and keep exciation' frequency is synced with speed in the model.
  HDLI
- August 30, 2023 at 1:00 am

  Sampath kumar A V N
  Subscriber

  Hi vedant....thanks for the information....can I have your email details
- August 30, 2023 at 9:24 am

  Vedant Sane
  Subscriber

  vedant.sane@outlook.com :D
- September 4, 2023 at 8:52 am

  Sampath kumar A V N
  Subscriber

  Hi....
  I need to include damping coefficient to the simulation setup...Can anyone please suggest me how to connect damping
- September 18, 2023 at 7:53 am

  Vedant Sane
  Subscriber

  Hi Sampathkumar,
  In mechanical library you will find the damper which you can then connect to your motor model. Have you already shared your model with me? I did not received your email.
  Thanks!
