Why the surface mesh is of bad quality?

- May 19, 2021 at 7:59 pm

  _aryaman
  Subscriber

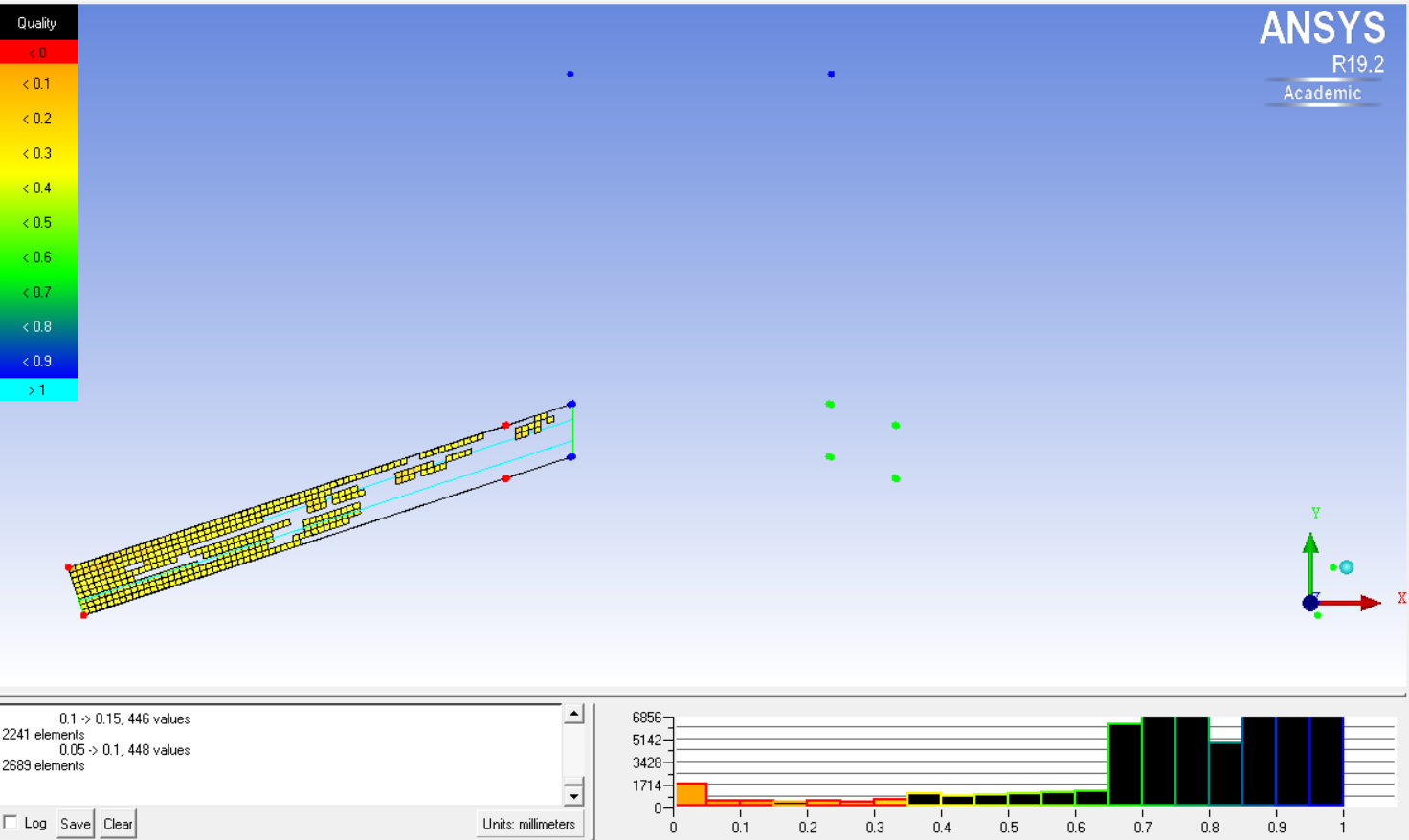

  I'm trying to mesh a rectangular duct like structure that has one face curved and other as flat surafces. I'm using ICEM CFD and trying to make a block-structured hex mesh, but the quality of elements on the surface are quite poor.

  What can be the reason for it?
- May 20, 2021 at 6:13 am

  Keyur Kanade
  Ansys Employee

  Is it surface mesh or volume mesh?
  Make sure that you also assign faces.
  Insert image of the premesh.
  What quality criteria you are using?
  If geometry is simple, please check if you can use Ansys Meshing.
  Please check following videos

  Ansys Meshing Sizing:
  https://www.youtube.com/watch?v=w4q6q8nKF3U

  Ansys Meshing: Meshing Methods:
  https://www.youtube.com/watch?v=nEOC8rDnnRo

  Ansys Meshing: Inflation:
  Regards Keyur
