why my geometry is error when i creating the enclosure body???

TAGGED: , , , ,

    • February 13, 2022 at 1:15 am
      alghifaryasta
      Subscriber
    • February 14, 2022 at 3:09 am
      Keyur Kanade
      Ansys Employee

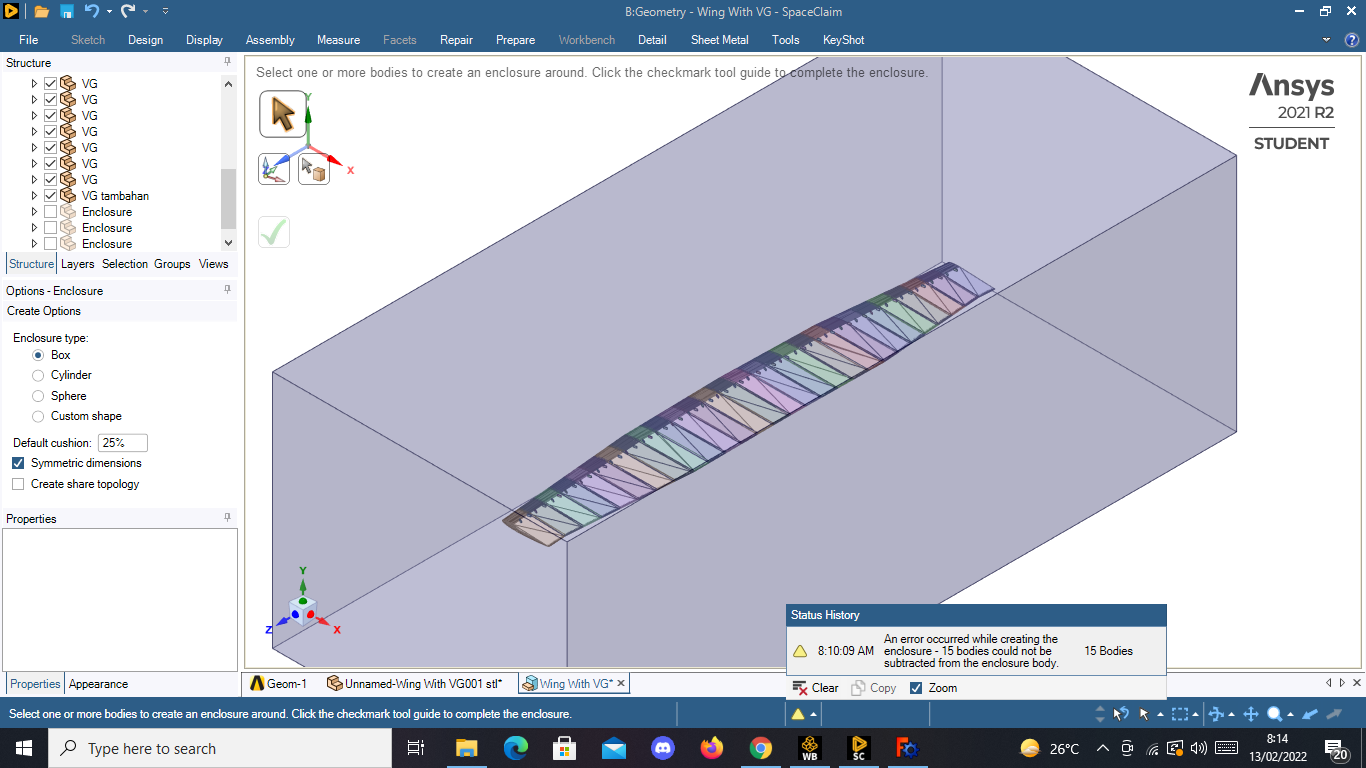

      As error suggests subtraction is failing.
      Please check geometry in SpaceClaim.
      Select geometry in structure tree --> Use right click --> Select Check Geometry.
      The geometry should be error free to proceed.
      If geometry has any errors, please modify/recreate geometry at those places.
      If geometry has any line or point contacts, please remove them and make sire that geometry is intersecting each other at those points.
      Please go through help manual for more details
      Regards Keyur
