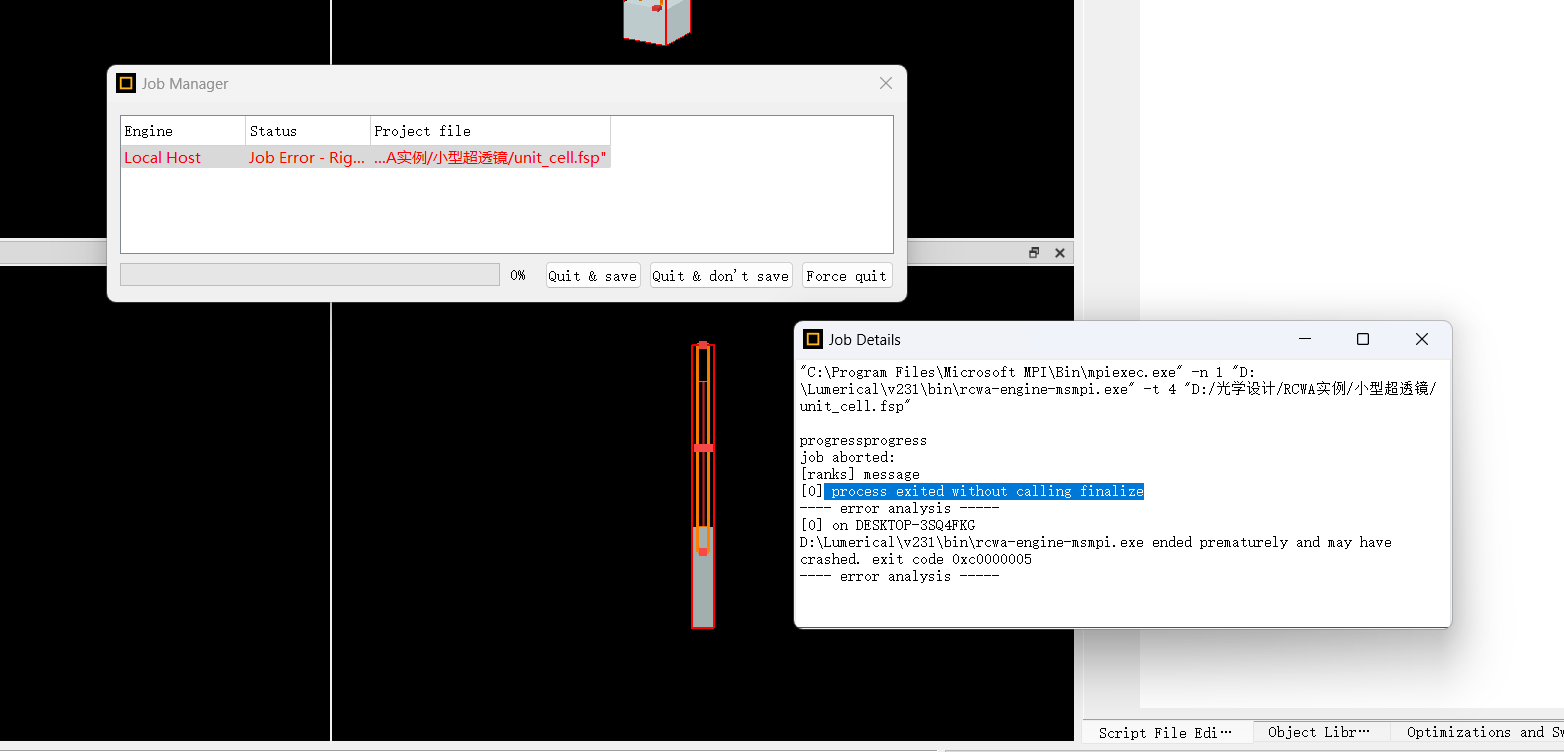

I have reinstalled Microsoft's MPI program and the Luminary program, but the below error still occurs,The above error only occurs when I check 'report tangent vector field' in the RCWA solver, and the program can run normally when not checked.

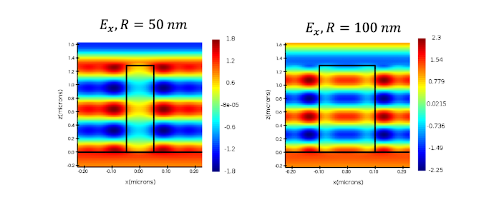

Besides, I also want to ask,How can I obtain the following calculated values in the case study，’Visualize the '$E_p$' from the "xz_field" monitor results. Repeat the same for the radius value of '100' nm‘. Thank you very much for your help

[Dev]

Hello,

Are you reffering to any of your previous forum question? Please copy the link here or reopen the same post.

Thank you

[qiji ch]

Reference Cases:Small-Scale Metalens – Field Propagation – Ansys Optics,

Reference answer热量错误代码0xc0000005 (ansys.com)

[qiji ch]

and this FDTD仿真中，改变入射光的波长和改变材料 (ansys.com)

[Dev]



Hello,

The “tangent vector field” option should only be used with mesh refinement set to conformal variant 0, 1 or 2. That might be the reason you are getting error.

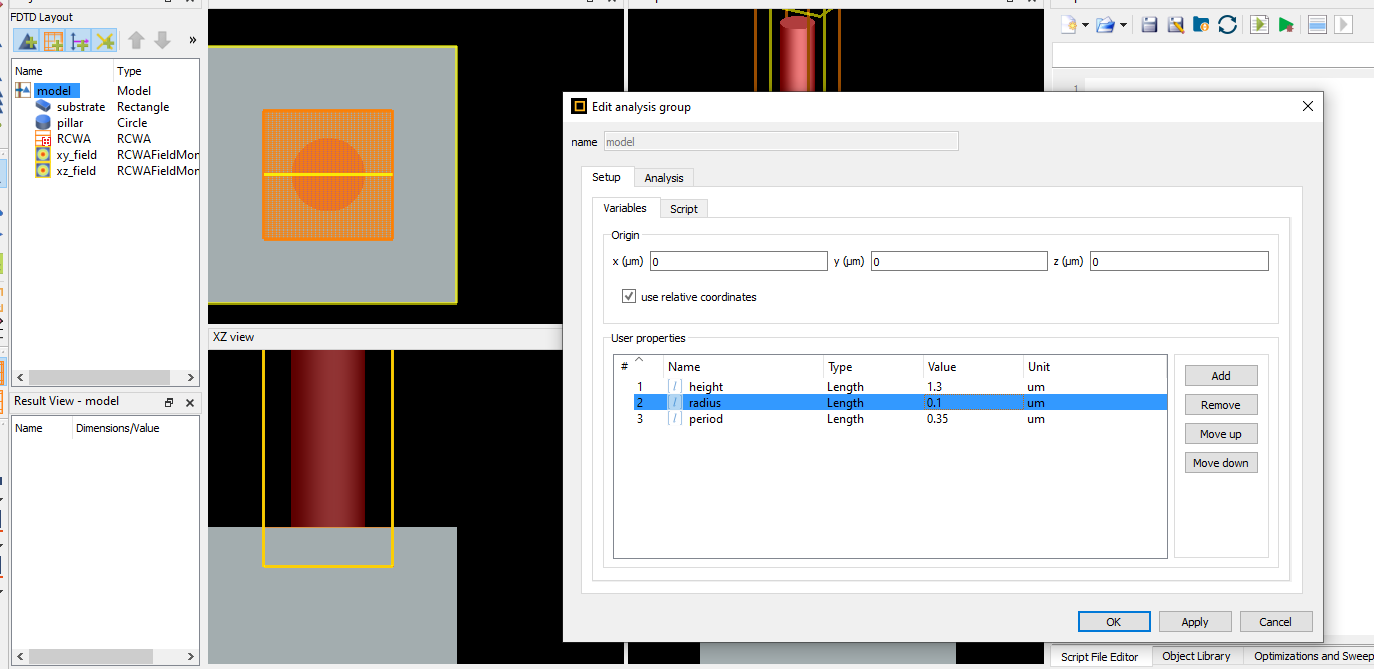

For the second question: Change the radious of “model” to 100 nm and rerun the simulation. Then visualize Ep from xz_filed. The results in website will be updated soon.

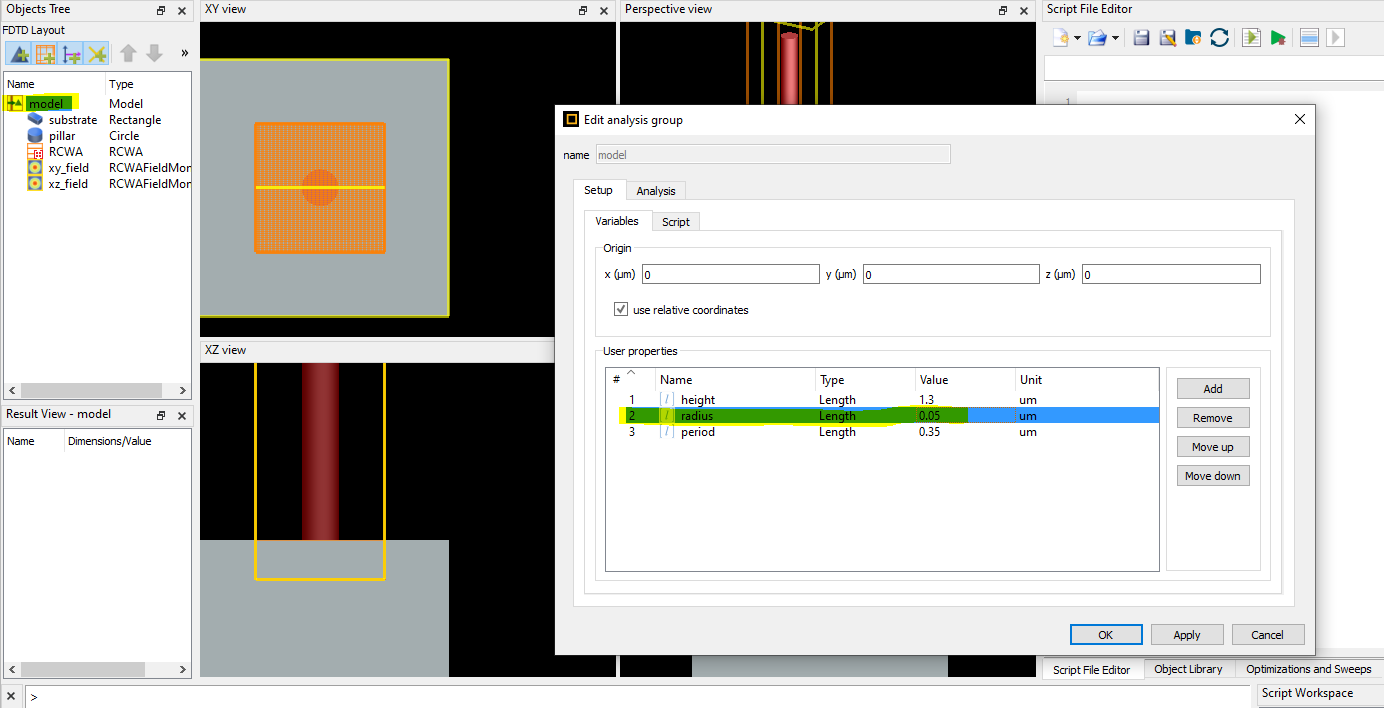

50 nm:

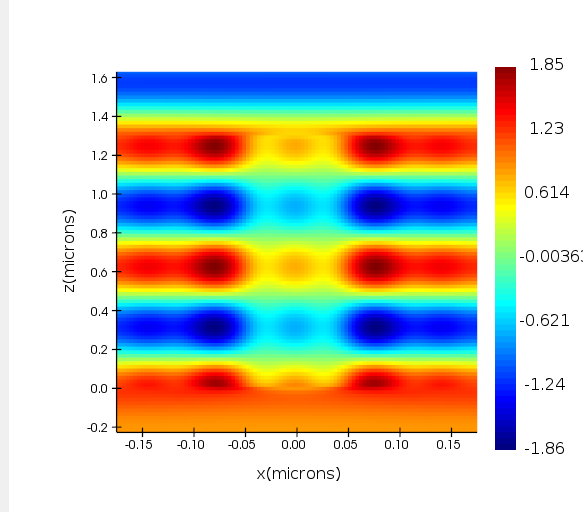

=======>'Ep”>Ep’ from the “xz_field”



100 nm:

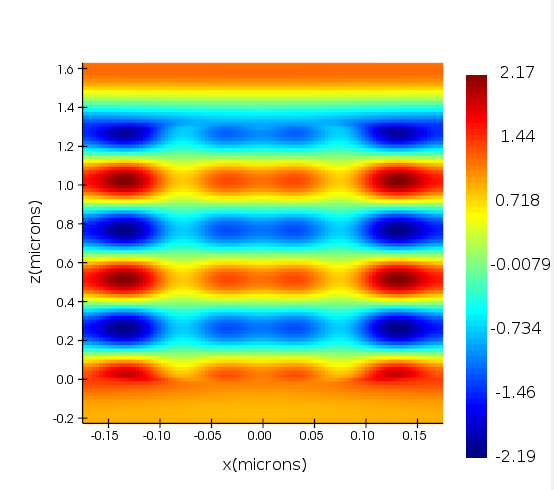

=====>'Ep”>Ep’ from the “xz_field”





Note: Try to post one question per post. It will be easy to resolve and avoid confusion in attached screenshots. Ansys Insight: Ansys Innovation Space–Forum and Feed

Thanks and regards

Devika



[qiji ch]

thankyou so much ，i will fix my bad next time,thank u sir

[Dev]

You are welcome. Hope this resolve the issue. Thanks for using the forum.
