What are the units of “mag” when plotting graphs?

- July 24, 2024 at 1:08 pm

  Tenyu Aikawa
  Subscriber

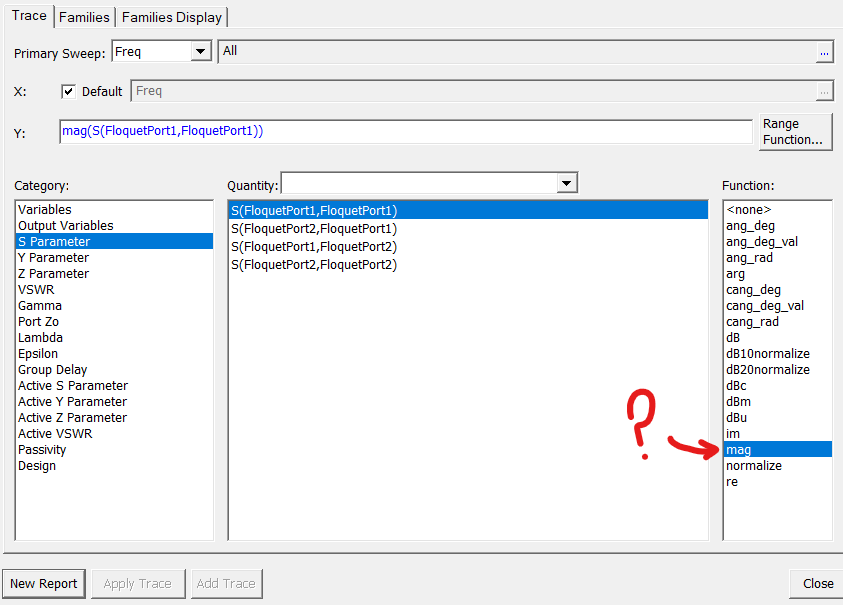

  My input power is 1 watt. Is the "mag" also in units of watts?
- July 26, 2024 at 7:54 am

  Praneeth
  Forum Moderator

  Hi Tenyu,
  Thank you for reaching out to the Ansys learning forum.
  Please note that the scattering (S) - parameters are unitless as they are defined as the ratio of powers or voltages. Kindly go through this free AIS course on S-parameters for better understanding - Basics of S-parameters | Ansys Innovation Courses.
  Best regards,
  Praneeth.
- July 27, 2024 at 1:24 pm

  Tenyu Aikawa
  Subscriber

  So, if they are dimensionless, that means I can multiply them by the input power of 1 Watt to get the power transmitted and reflected. Would that be correct?
  The unit of "mag" is also present if you want to plot the passivity, so what is this unit representative of?

Viewing 2 reply threads

The topic ‘What are the units of “mag” when plotting graphs?’ is closed to new replies.
