Im doing Modal Analysis of a system with many point masses.

In the visualisation of the solution (in Mechanical) I only see the displacement of the grid, but not the displacements of the individual point masses.

Is there any simple way to visualize the displacement of these point masses?

[Akshay Maniyar]

Hi Otso,

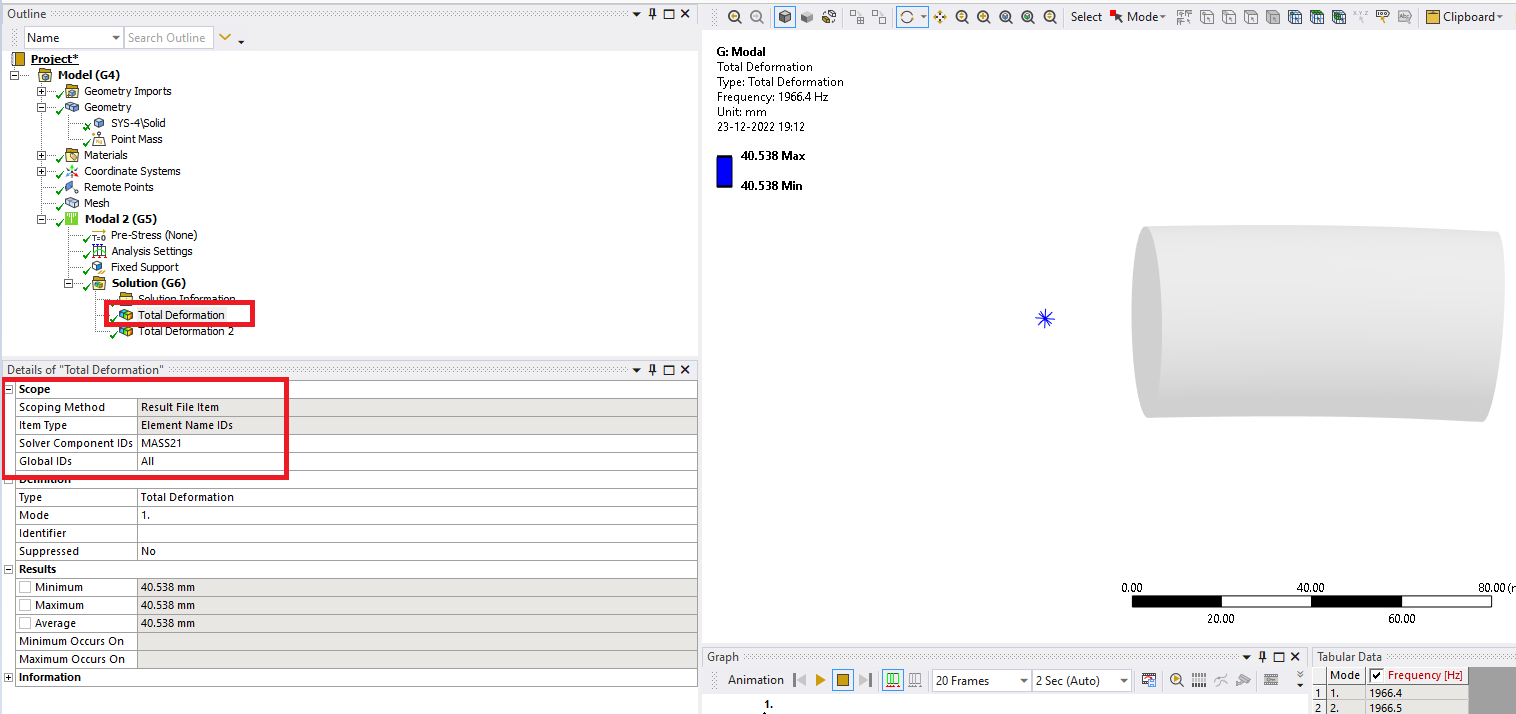

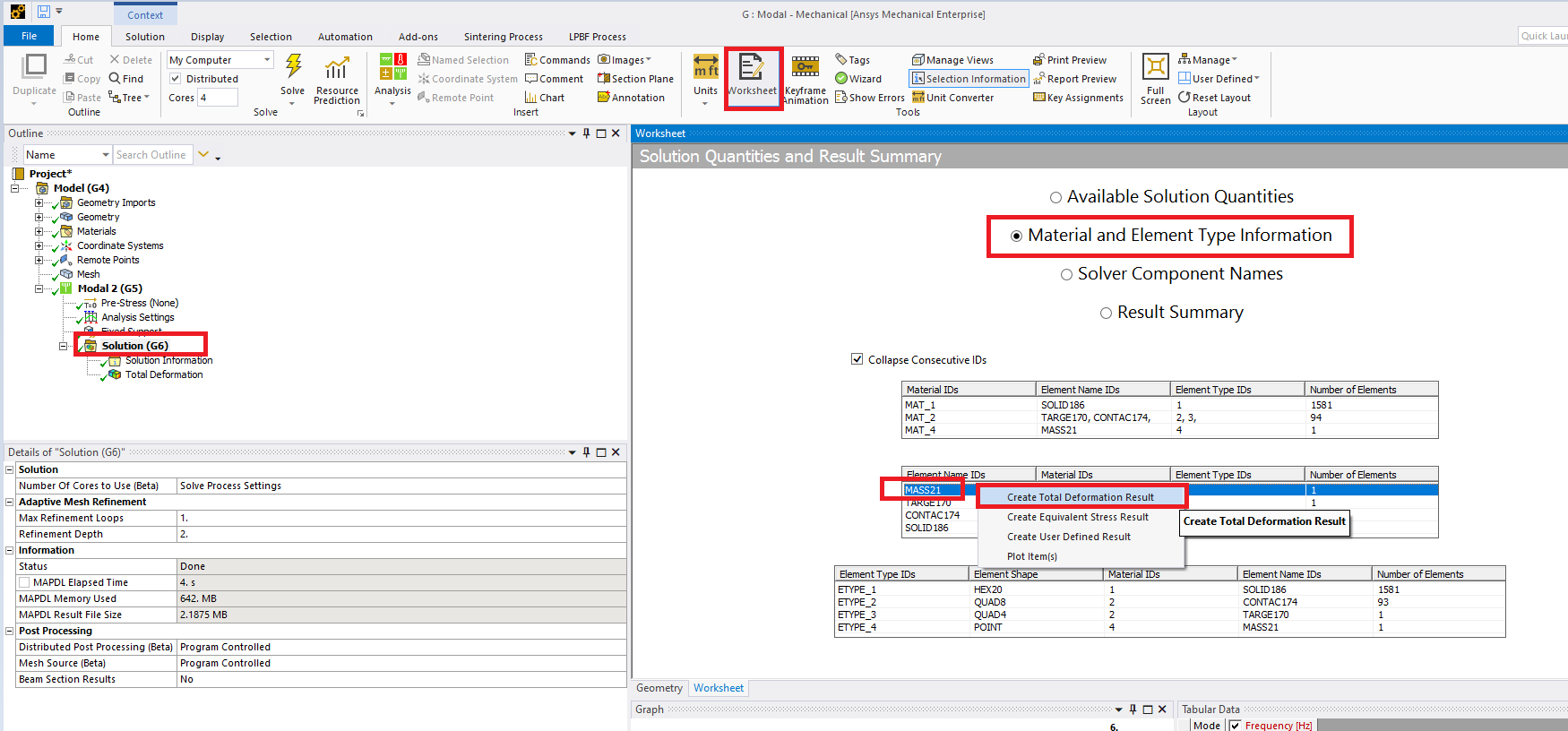

Yes, you can plot. Please check the below image to plot deformation of point masses. Go to Solutions < worksheet < Material and element type information and right click on MASS21 to plot deformation for point masses.

Please check if it solves your issue.

Thanks,

Akshay Maniyar

[Otso Gächter]

Hi Akshay

Thanks for your detailed and easy to follow response

Is there any way to combine this visualisation with the deformation of the other geometry (meshed)?
