Hello everybody,

I am trying to follow an example that you can find in the following website:  https://www.youtube.com/watch?v=l3naQu46NgI

My problem is that my spaceclaim generates a surface automatically from the made lines if they are in a closed form, I would like to keep my lines without generating a surface. Do you know if it is possible? (please see the problem in the attached video).

If I remove the surface, I removed the lines too. ¿Is it possible to remove a surface keeping the sketch?

Thank you so much.

Kind regards.

Anchel



[anchel]

sorry, I can not upload the video (I dunno which video extension is allowed) I copy some pictures





[raul.raghav]

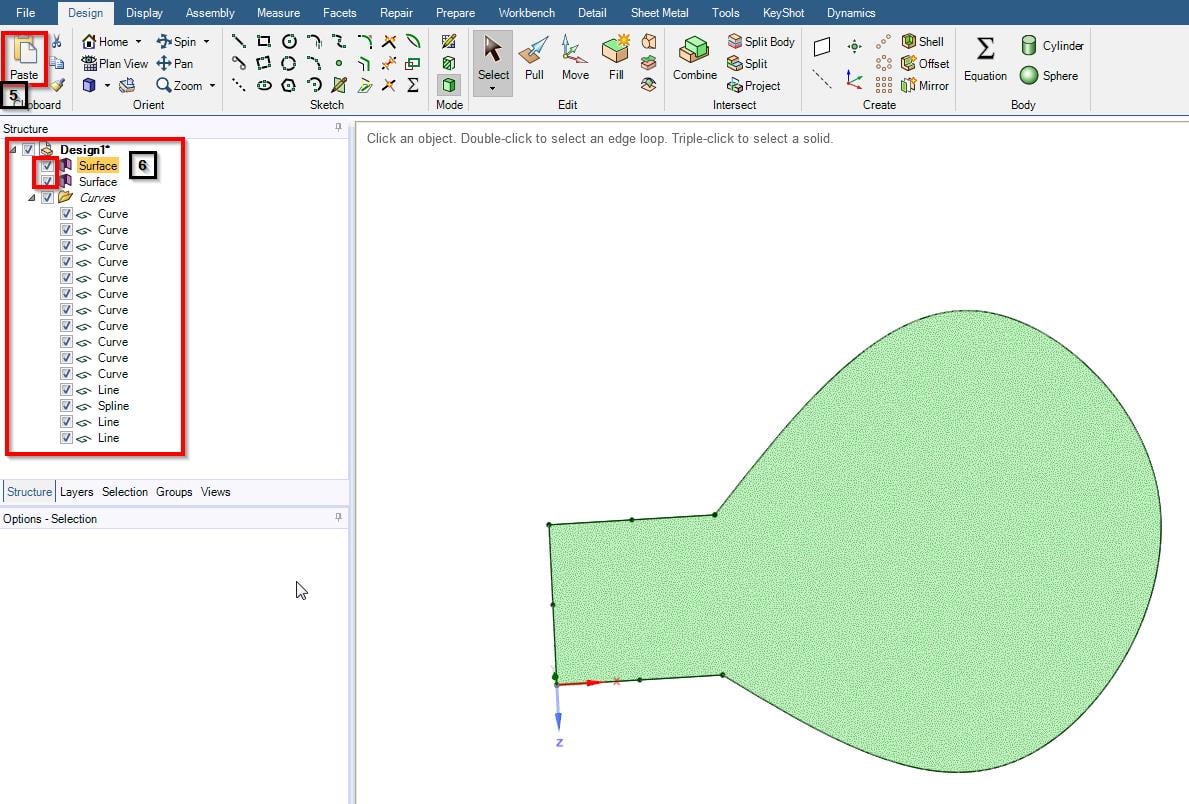

Refer to the attached images to check if that is what you want.

[anchel]

Thank you so much Rahul for your anwser.

I see that it is not straightaway but your procedure is valid for me. I could not understand how spaceclaim generates automatically the surfaces even if you do not want.

Have a good day!



[deepmech.maurya]

Hello Anchal

                    Video link is attached to draw curve.

just change the setting in option> create layout curve CHECK MARK IT.

https://youtu.be/yEeqcaZk3SA

Enjoy

Deepak

[peteroznewman]

Thanks Deepak, I learned something new about SpaceClaim!

[deepmech.maurya]

hello Peter sir,

                         i learned from you how to  play with Ansys tools.

thanks

[FrankD]

SpaceClaim curves (in general) are assumed to be temporary, in the sense that as soon as they are closed and brought to 3D, they are discarded and replaced with a surfaces whose edges are the curves. Similarly, surfaces that are extruded become solids, with no memory or retention of the surfaces they once were (since the more impactful notion of them is as a face of a solid.)

If you don't want that to happen, for whatever reason, you can either create your 2D curves as Layout Curves, or convert them to Layout Curves, and then they will not Fill themselves in that way, and retain their curve-ness.
