      How can I change my legend to smooth in contour plot?

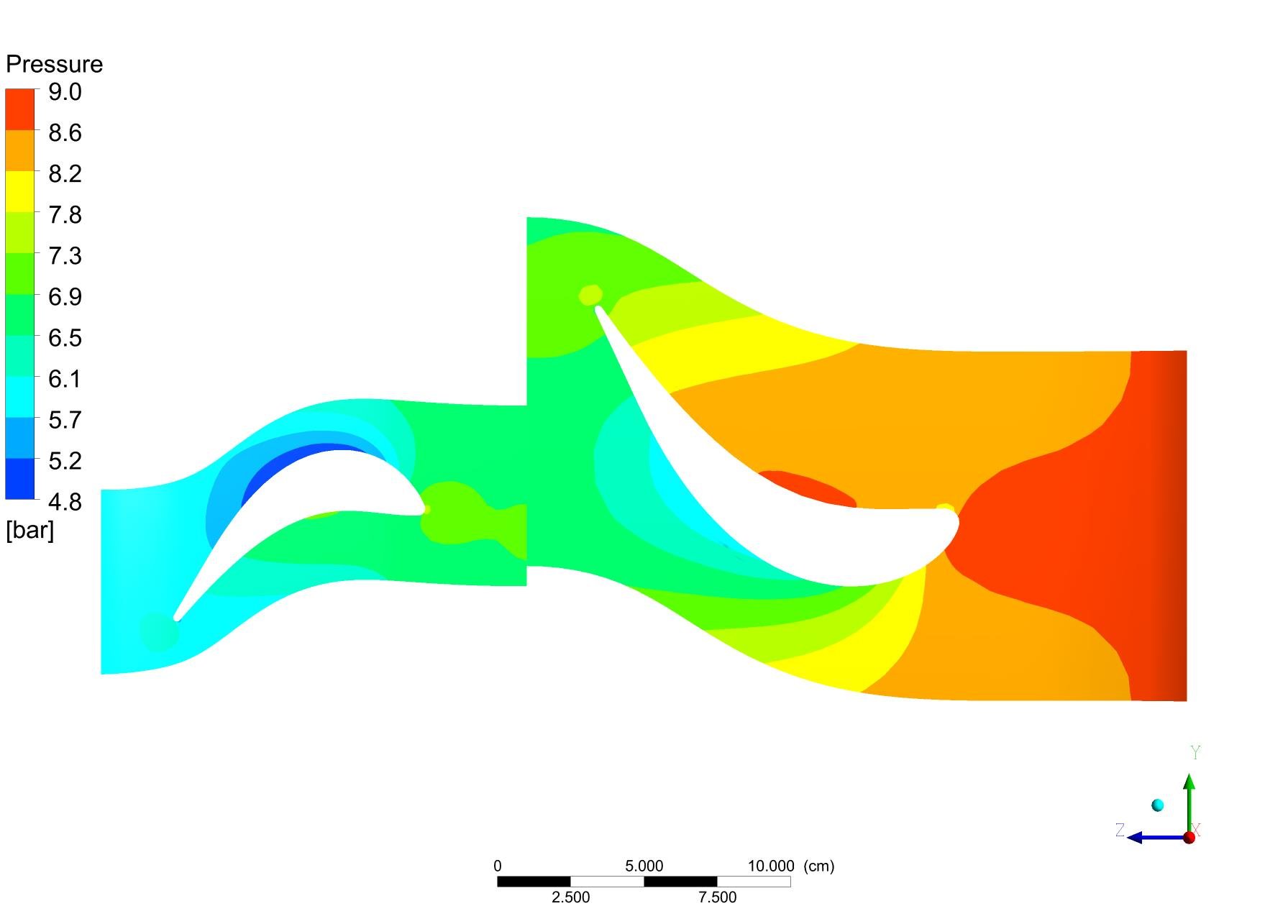

      Non Smooth contour plot


      And convert to something like this


    • July 24, 2020 at 1:04 pm
      Rob
      Forum Moderator

      Have a look in the contour options, remember the option could be to turn off banded.

    • July 24, 2020 at 3:40 pm
      HMHassan
      Subscriber

      I,ve 4 tabs in contour options and none have this option I think...


      Can you please elaborate it a bit.


      Thanks in Advance


    • July 27, 2020 at 5:43 am
      Keyur Kanade
      Ansys Employee

      Please check under render.


      also please increase # of contours.


      Regards,


      Keyur





      If this helps, please mark this post as 'Is Solution' to help others.
