Is there any reference to set parameters and add construction group using script?

[Amrita Pati]

Hello,

Please refer to the following link and let me know if you have any questions:Structure Group.

Regards,
Amrita

[minusunny]

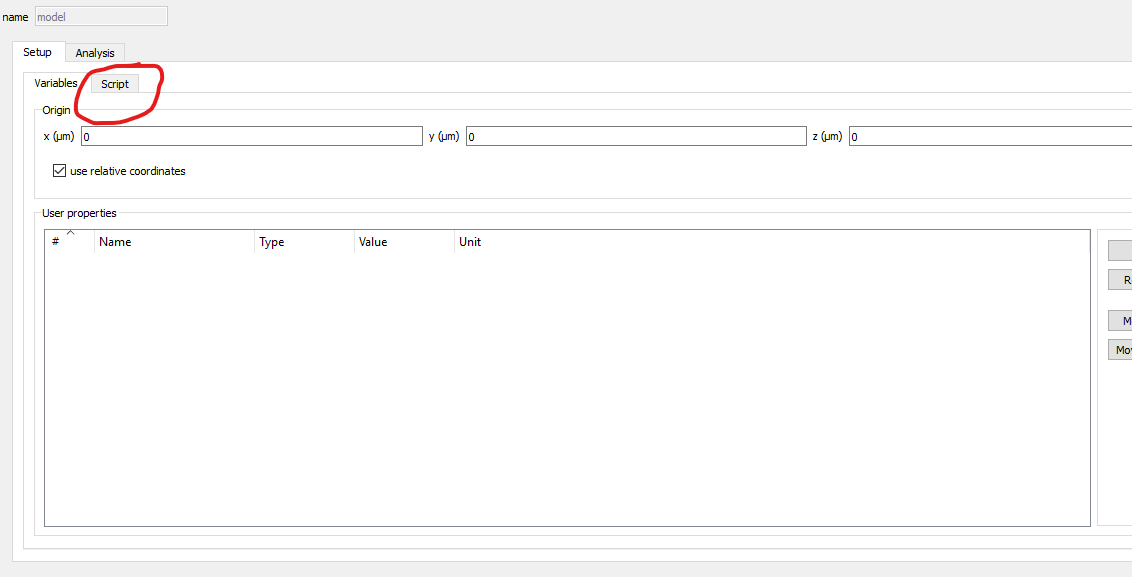

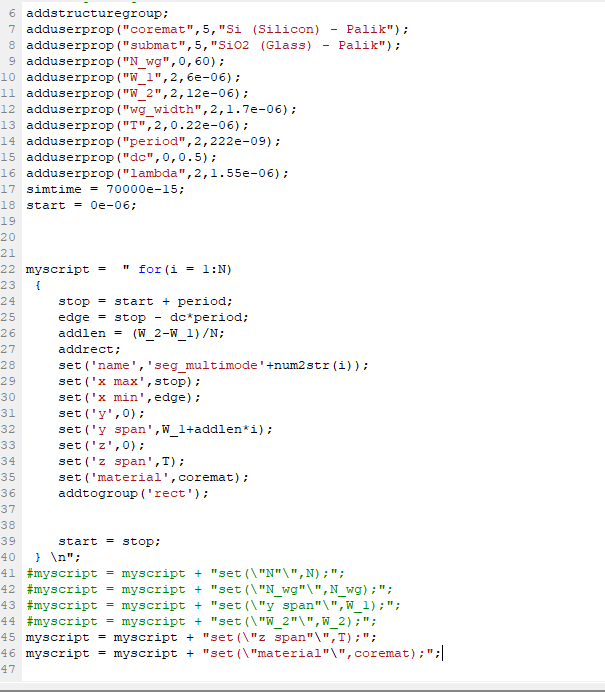

I tried this but it is giving me error the lines 45,46.

[Amrita Pati]

Hello,

Thanks for sharing more information. Would you be able to copy and paste the script (instead of screenshots) in your response? This would allow me to test the script much faster.

Regards,
Amrita

[minusunny]

addstructuregroup; adduserprop("coremat",5,"Si (Silicon) - Palik"); adduserprop("submat",5,"SiO2 (Glass) - Palik"); adduserprop("N_wg",0,60); adduserprop("W_1",2,6e-06); adduserprop("W_2",2,12e-06); adduserprop("wg_width",2,1.7e-06); adduserprop("T",2,0.22e-06); adduserprop("period",2,222e-09); adduserprop("dc",0,0.5); adduserprop("lambda",2,1.55e-06); simtime = 70000e-15; start = 0e-06; myscript = " for(i = 1:N) { stop = start + period; edge = stop - dc*period; addlen = (W_2-W_1)/N; addrect; set('name','seg_multimode'+num2str(i)); set('x max',stop); set('x min',edge); set('y',0); set('y span',W_1+addlen*i); set('z',0); set('z span',T); set('material',coremat); addtogroup('rect'); start = stop; } \n"; #myscript = myscript + "set(\"N"\",N);"; #myscript = myscript + "set(\"N_wg"\",N_wg);"; #myscript = myscript + "set(\"y span"\",W_1);"; #myscript = myscript + "set(\"W_2"\",W_2);"; myscript = myscript + "set(\"z span"\",T);"; myscript = myscript + "set(\"material"\",coremat);";

[Amrita Pati]

Hi,

Thank you for sharing your code. Here is the modified version. Please let me know in case it does not work.

addstructuregroup;

adduserprop("coremat",5,"Si (Silicon) - Palik");

adduserprop("submat",5,"SiO2 (Glass) - Palik");

adduserprop("N_wg",0,60);

adduserprop("W_1",2,6e-06);

adduserprop("W_2",2,12e-06);

adduserprop("wg_width",2,1.7e-06);

adduserprop("T",2,0.22e-06);

adduserprop("period",2,222e-09);

adduserprop("dc",0,0.5);

adduserprop("lambda",2,1.55e-06);

simtime = 70000e-15; start = 0e-06;



myscript = " for(i = 1:N)

{

stop = start + period;

edge = stop - dc*period;

addlen = (W_2-W_1)/N;

addrect; set('name','seg_multimode'+num2str(i));

set('x max',stop);

set('x min',edge);

set('y',0);

set('y span',W_1+addlen*i);

set('z',0);

set('z span',T);

set('material',coremat);

addtogroup('rect'); start = stop; } \n";





#myscript = myscript + "set(\"N"\",N);";

#myscript = myscript + "set(\"N_wg"\",N_wg);";

#myscript = myscript + "set(\"y span"\",W_1);";

#myscript = myscript + "set(\"W_2"\",W_2);";

myscript = myscript + "set(\"z span\",T);";

myscript = myscript + "set(\"material\",coremat);";





set('script',myscript);

Regards,
Amrita

[minusunny]

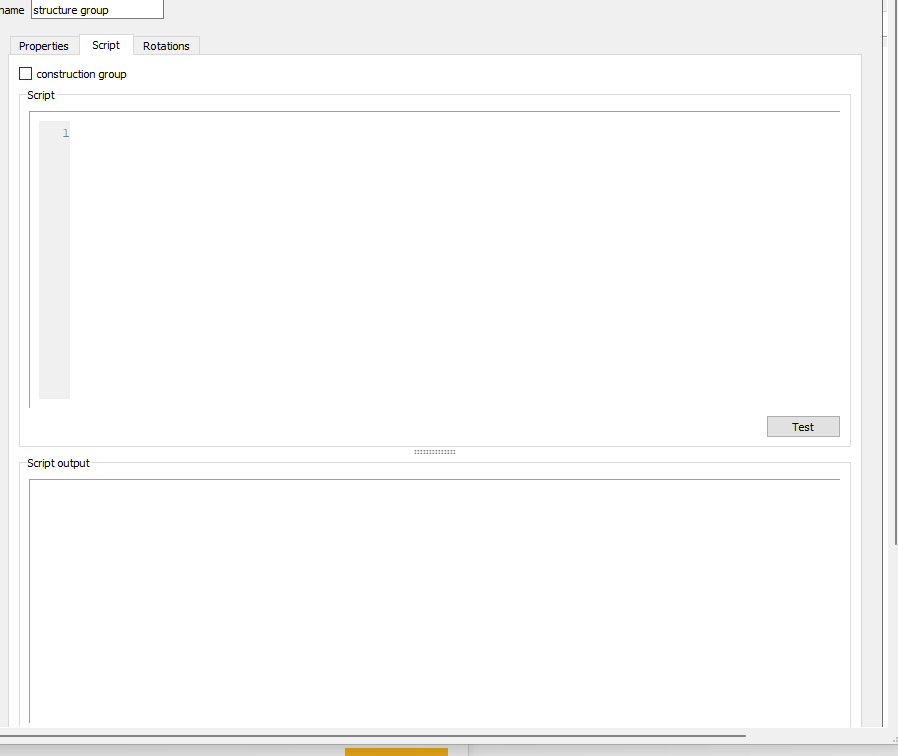

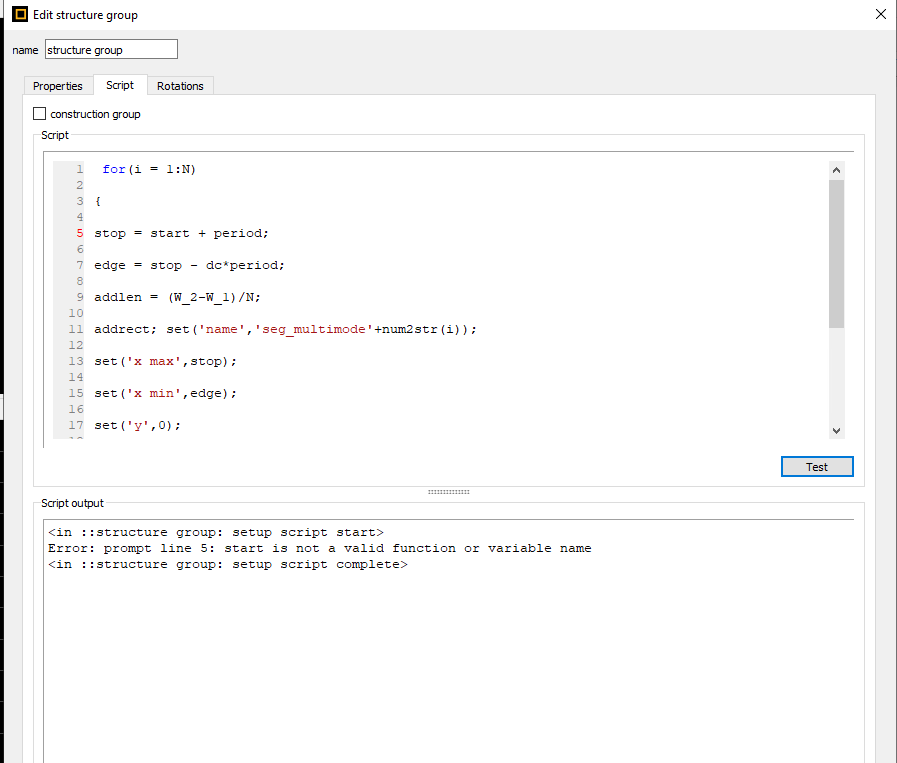

It didn't work unfortunately. It is setting up the properties as it did before, but not in the script part



[Amrita Pati]

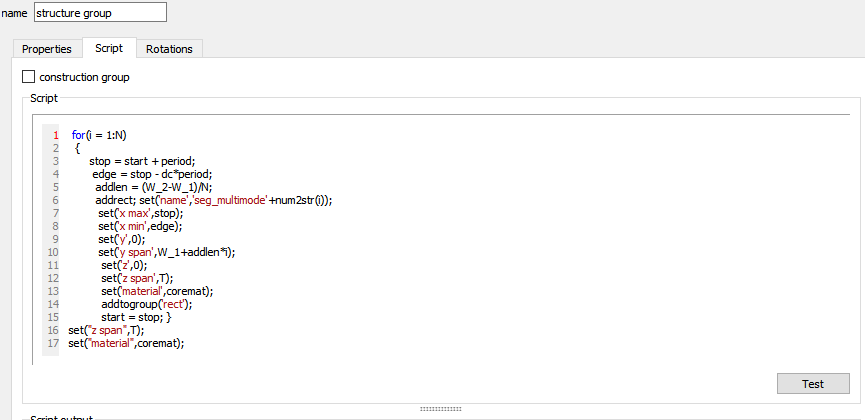

That is a bit strange because I am able to set the script as well:

Is the last line: set('script',myscript); executed successfully or is it throwing any error?

Regards,
Amrita

[minusunny]

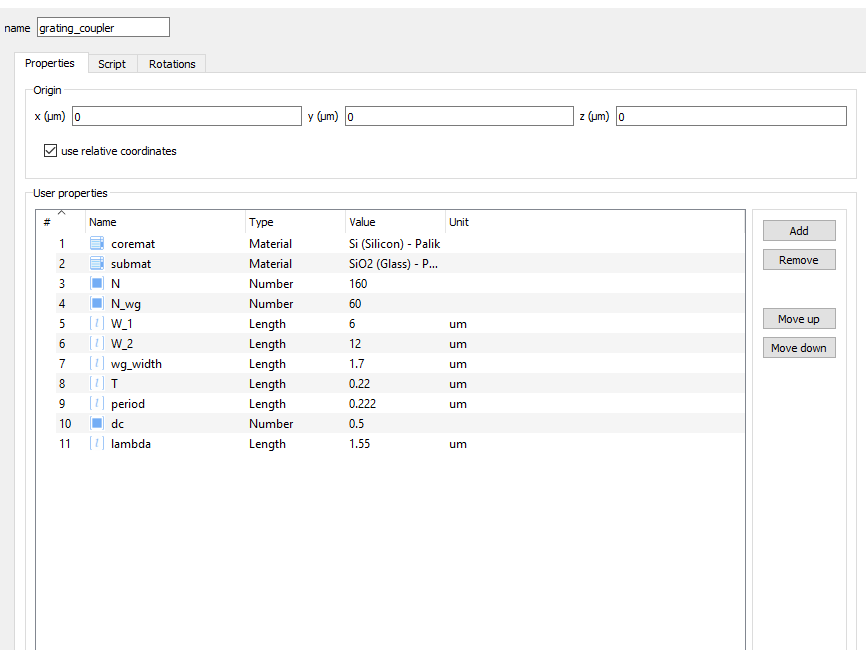

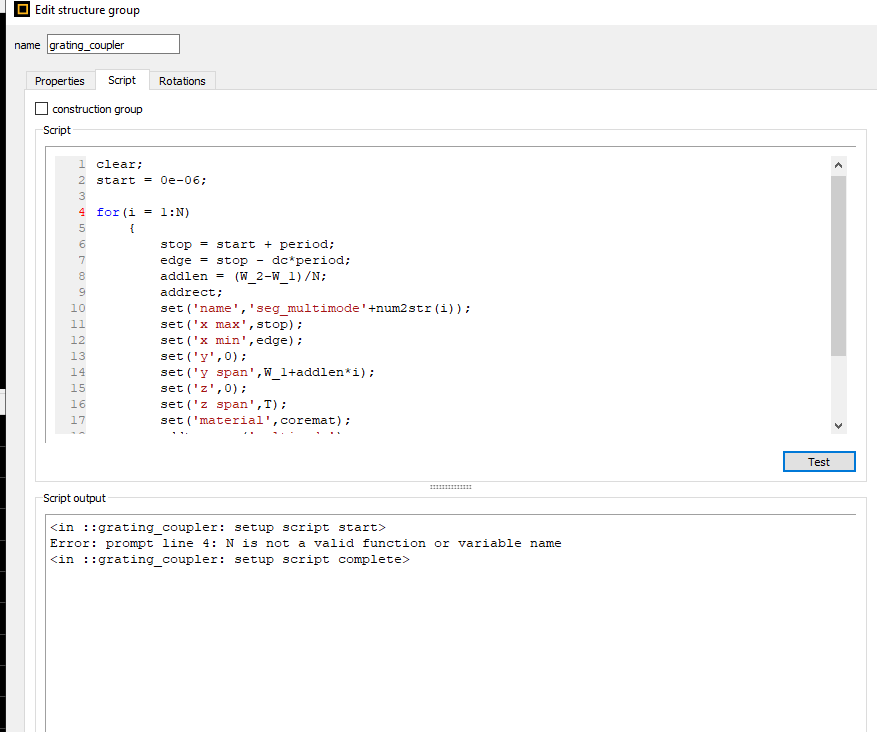

N was not added as user property, now this is the error i am getting.

[Amrita Pati]

That is beacause you haven’t assigned any value to N before using it in the for loop. I also do not see N being input as a user property in the code.

Regards,
Amrita



[minusunny]

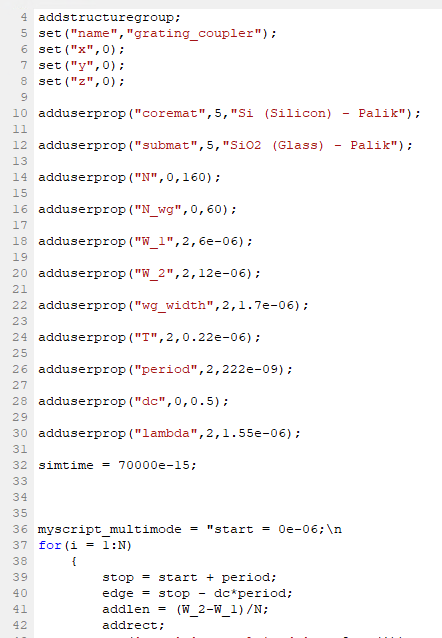

Yes I did.



[minusunny]

I figured it out. It was indentation error
