Repair self-intersection using Share Topology was not sucessful. Carefully examine model in SCDM

- May 18, 2021 at 8:25 pm

  ahmedeng
  Subscriber

  hi there
  can someone help me with this problem
  i do meshing with fluent mesher on Horizontal axe wind turbine with two cylindrical domain on rotational and other one is stationary

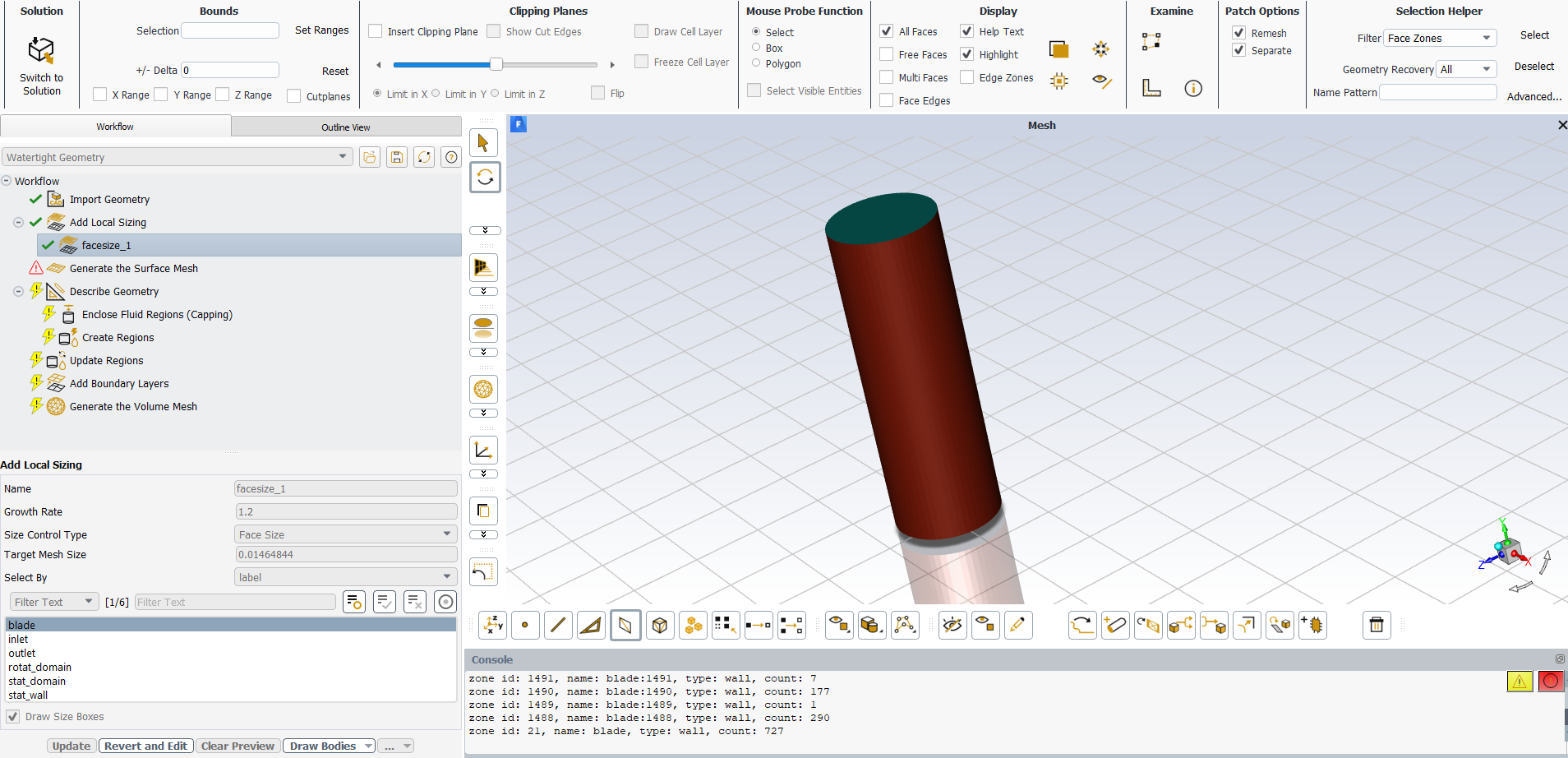

  and i found this problem "Repair self-intersection using Share Topology was not sucessful. Carefully examine model in SCDM" when i generate the surface mesh
- May 19, 2021 at 5:17 am

  Keyur Kanade
  Ansys Employee

  This means share topology operation in SpaceClaim is not successful.
  Also it gives some intersecting faces/edges in Fluent Meshing.
  You will need to share topology in SpaceClaim and use smaller sizing in Fluent Meshing.
  Please check following videos

  SpaceClaim Share topology:
  https://www.youtube.com/watch?v=h43E1YO1LiM

  Fluent Meshing Watertight Workflow:
  https://www.youtube.com/watch?v=aBxbYRVoRLo
  Regards Keyur
