Hello,

the reinforcement in my model refuses to solve and I do not know why

I am a beginner on ansys and I do not know if I am doing the right thing

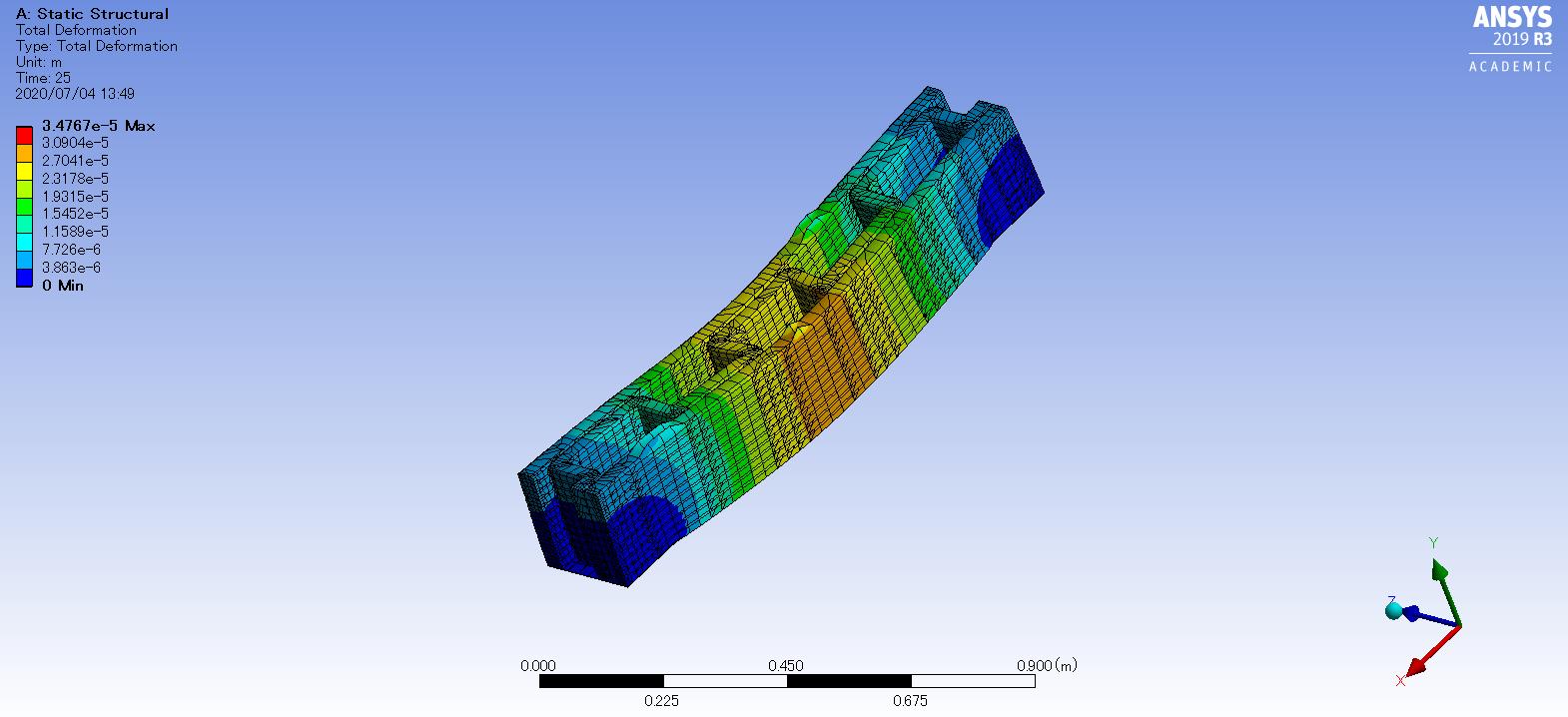

This is a reinforced 3D printed concrete beam I modeled and imported into ansys workbench

the reinforcement bars are embedded between the layers. all bodies are labeled so i assigned the concrete and structural steel materials accordingly

i treated it as a simply supported beam,



only the hex dominant mesh worked for this model and it got solved but the rebars did not deform. I do not know how to use codes or APDL, but i copied the prep 7 code to try to bond the concrete to the steel but the solution output got stuck midway without progress for a long time

this is the material parameters I set for concrete (its a cementitious mortar actully) and I am using the default structural steel for the rebars



please help, it`s an emergency



[Wenlong]

Hello,

There are several posts related to the reinforcement element. Please refer to them:

/forum/forums/topic/error-with-reinf264-elements/

/forum/forums/topic/error-contact/

/forum/forums/topic/issues-with-ereinf-and-reinf264/

/forum/forums/topic/reinf264-shows-wrong-results/ (This one has a model attached that you can refer to)

Regards,

Wenlong



[Bukky1]

thank you very much for your response.

I do not know any codes, I am a beginner, however I found a solution thankfully.

I selected the affected contact bodies and changed the formulation setting to `Beam`

This was such a relief!



[saravanan]

Mr.Bukky 1 can you please tell the procedure how you change the formulation setting yo beam its very urgent can you please tell as soon as possiblen
