  3. Radiation Pattern Plot in Circuit

Radiation Pattern Plot in Circuit

TAGGED: ,

    • March 10, 2022 at 11:42 pm
      Shahzaib
      Subscriber

      Hi all,

      Actually I have an antenna in HFSS with gain and radiation pattern. I want to include measured SnP file of amplifier with it. what is did is to make a circuit file, export antenna there and attached a port with snp file. but it is not plotting the Radiation pattern.

      How can I debug this issue?

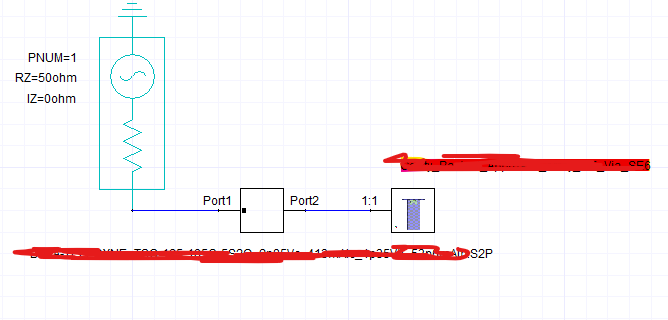

      Screen Shot is attched.

    • March 22, 2022 at 11:06 am
      Anchal Singh
      Ansys Employee

      You can go through the course Cosimulation Using Ansys HFSS and Circuit - Lesson 2 - ANSYS Innovation Courses. This may help you to achieve what you want.
      Hope this helps.
      Regards
      Anchal
