Plot the deformation in transient in an other coordinate system.

    • dimitri.hamelin
      Subscriber

      Dear all,

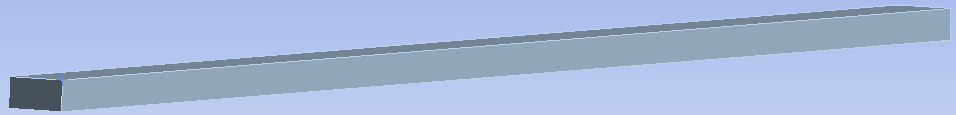

      I am doing an exercise with a beam in Transient structural after a modal analysis where I want to plot the deformation in the coordinate system of my fixed supportand not the global coorditate system (ie the deformation at the fixed support is always equal to 0).

    • peteroznewman
      Bbp_participant

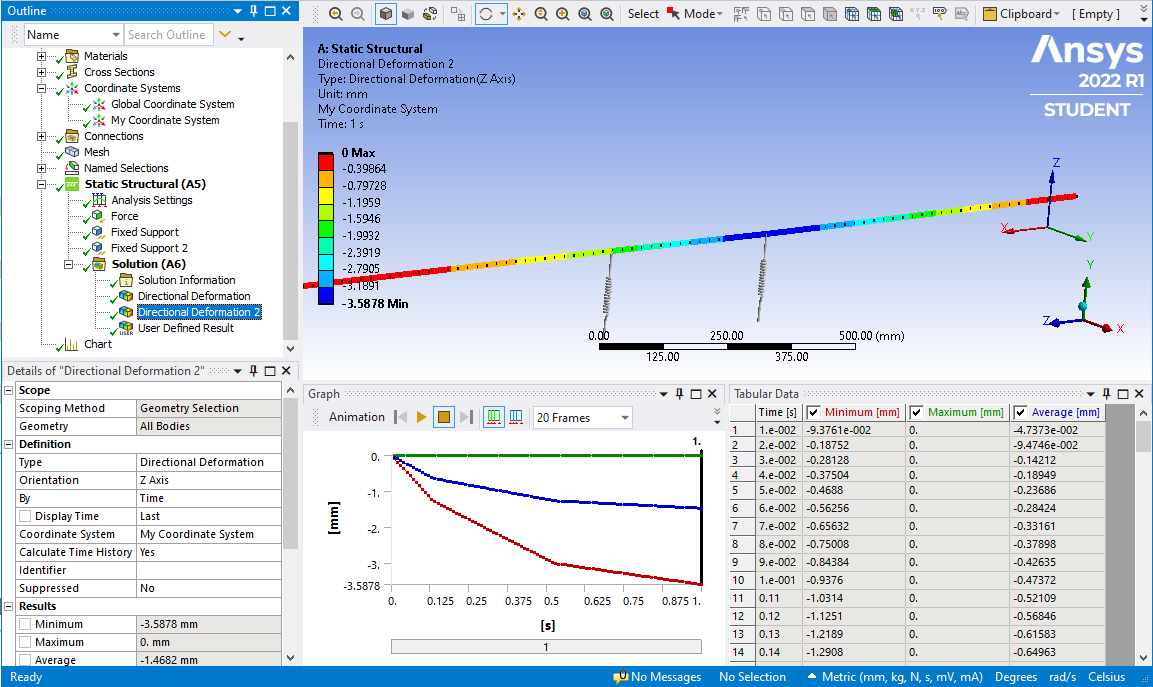

      Create a coordinate system, such as My Coordinate System. Insert a Directional Deformation. You can use My Coordinate System in that result.
