  3. Natural convection transformer cooling ducts

Natural convection transformer cooling ducts

    • May 21, 2024 at 1:58 pm
      Lukas Henninger
      Subscriber

      Hello guys,

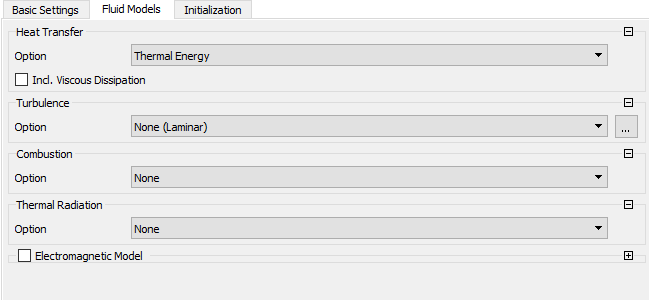

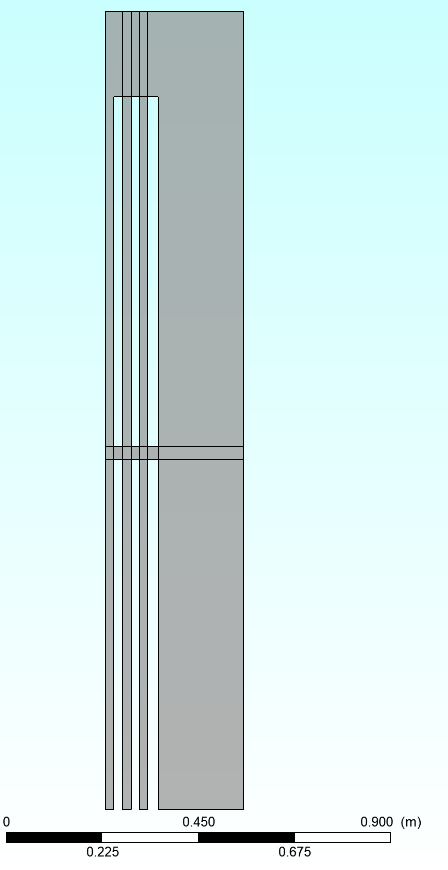

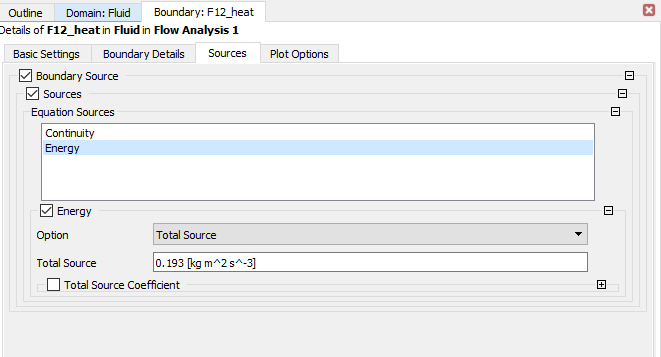

      i have a problem here, maybe anyone can help me out. In the left picture you can see the fluidvolume of a transformer with cooling ducts. I want to simulate natural convection on there. I gave the walls Energy sources and want to simulate the flow of air. I the other faces are openings, online the outer left one is a wall. Inbetween the cooling ducts, the faces are walls too. The probleme here is now, that the air is flowing downwards, which is not correct in reality. I added buoyancy. Anyone sees the problem?



    • May 22, 2024 at 3:12 pm
      CFD_Friend
      Ansys Employee

      Hi,

      Can you check if the geometry is aligned upright (that is gravity will be acting in the proper -ve z direction)?

    • May 24, 2024 at 6:20 am
      Lukas Henninger
      Subscriber

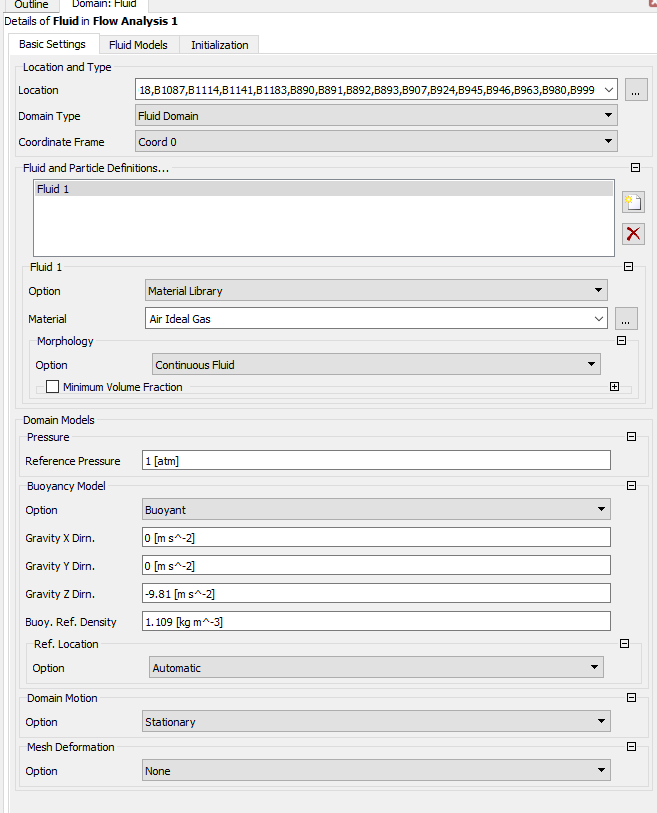

      Hey @CFD_Friend, i already found the problem. The density was not right. But now the question, why did this happen, with a density being to low in the domain. For the openings i selected reference Temp. 25°C. Did CFD calculate the density of the air, which is coming is from the opening? Being of  higher density it would "fall" in my domain. Is this the right assumption?

Viewing 2 reply threads
  • The topic ‘Natural convection transformer cooling ducts’ is closed to new replies.
