Modelling a Press Fit in Ansys Discovery

- January 23, 2023 at 3:12 pm

  Thanh Son Le
  Subscriber

  I am currently exploring Discovery to understand its capabilities and where it might fit in my team's workflow. A common simulation we do is a press fit, where a cylindrical plug is fit in an originally narrower clinydrical bore. Pre-Assembly dimensions:
  In Mechanical, it is possible to assemble the two components with a slight overlap, which gets automatically resolved by deforming the sleeve until the needle OD and sleeve ID are touching (no loads, defined only by a fixed support on top of the sleeve and a frictional contact between the sleeve ID and needle OD).

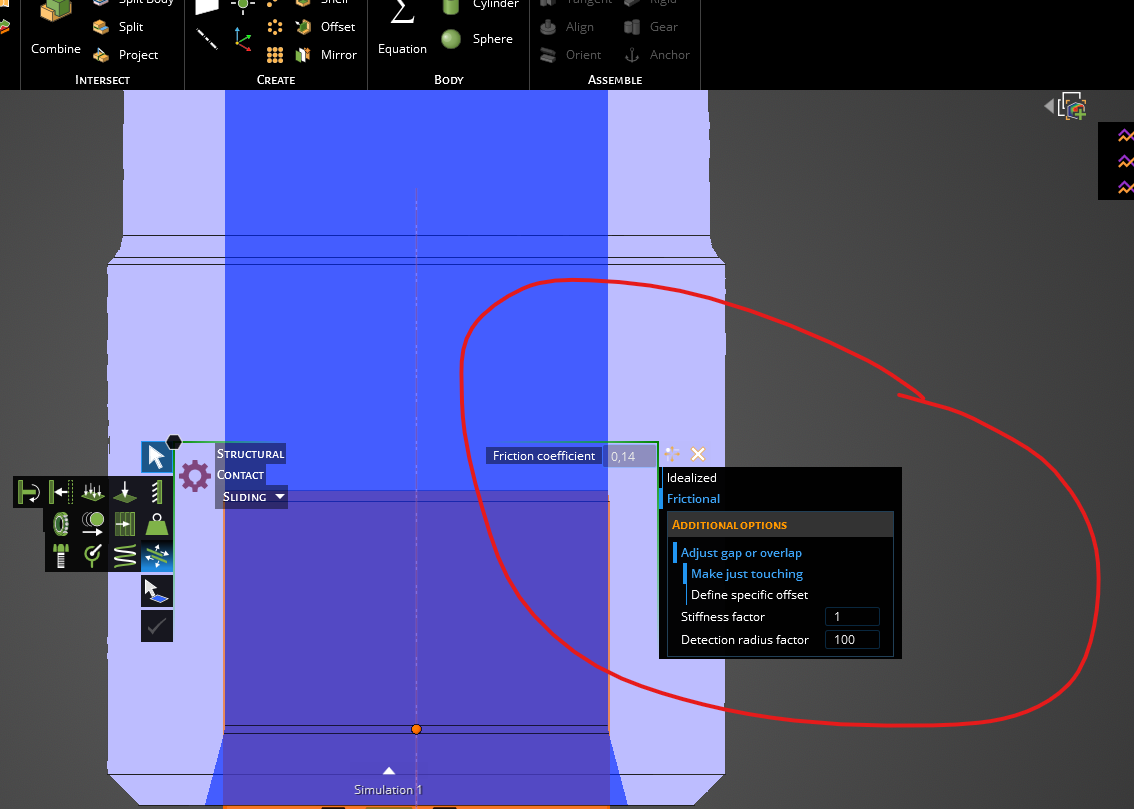

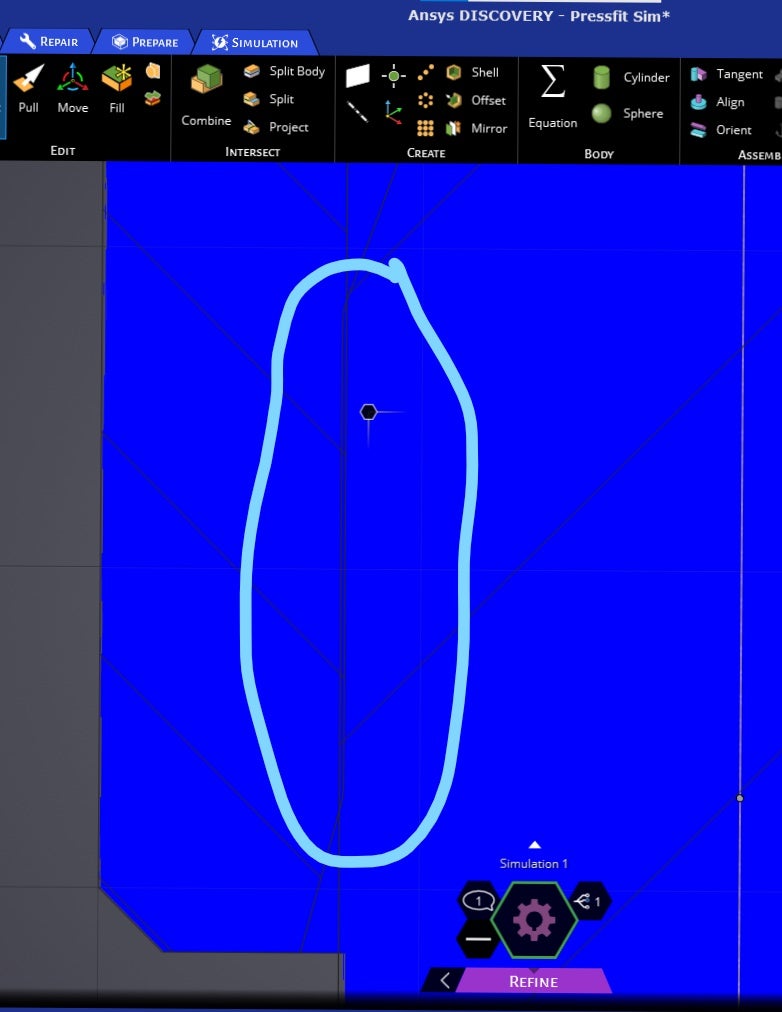

  In Discovery the overlapping geometry does not get resolved in the same way. I tried increasing the detection radius factor in the contact setting (1, 10, 50, 100), in case Discovery did not register the ID and OD as a contact pair, but the overlap remained. Is there a different way to simulate a press fit with a sleeve narrower than its plug in Discovery?
- January 23, 2023 at 3:40 pm

  Ankush Choudhary
  Ansys Employee

  Hi, Please follow the below Ansys tutorial.
  https://www.youtube.com/watch?v=5jH2Ox6-YkU
