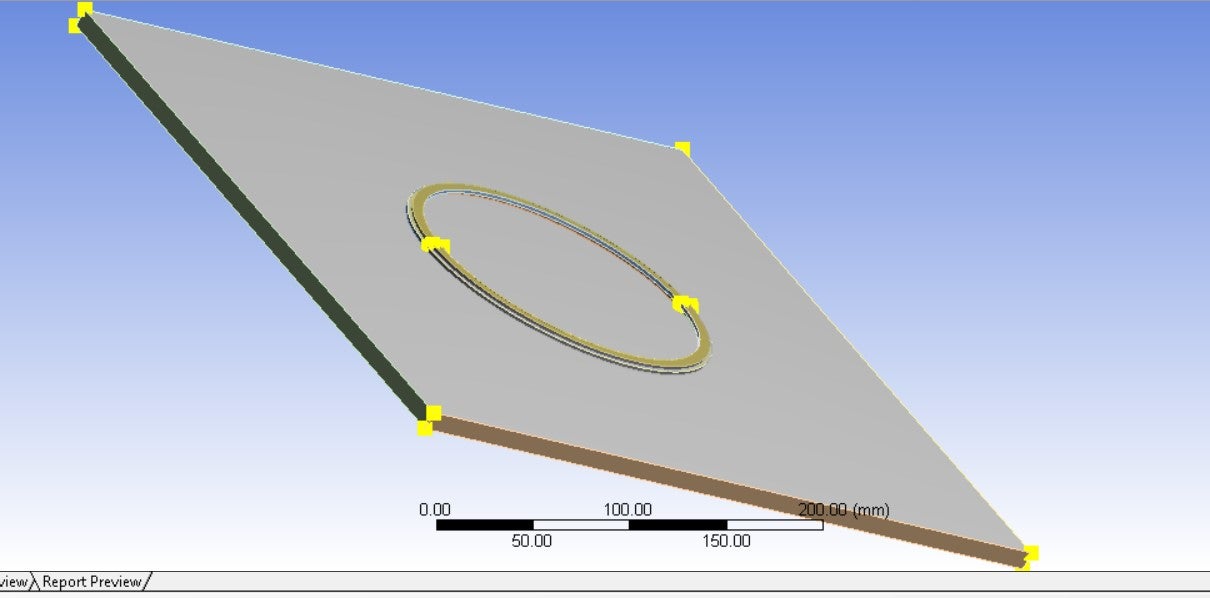

      i am trying to mesh this uploaded model. i have tried to mesh it by shared topology, it produces good connected mesh but then all the contact connnections are lost and also all 3 body parts are seperated into surfaces. kindly tell me how can i mesh it with all nodes connected and uniformly. model has three part. base plate, first circular bead and 2nd circular bead. kindly guide me for its meshing. nodes are not matching for any of the 3 bodies. kindly help with you advises.

    • Essence
      Ansys Employee

      Hello,

      Please check for the defects in the model. And try to repair them.
