Mesh generation of a rocket nose cone

- May 18, 2020 at 9:04 pm

  Mario95
  Subscriber

  Hello everyone,

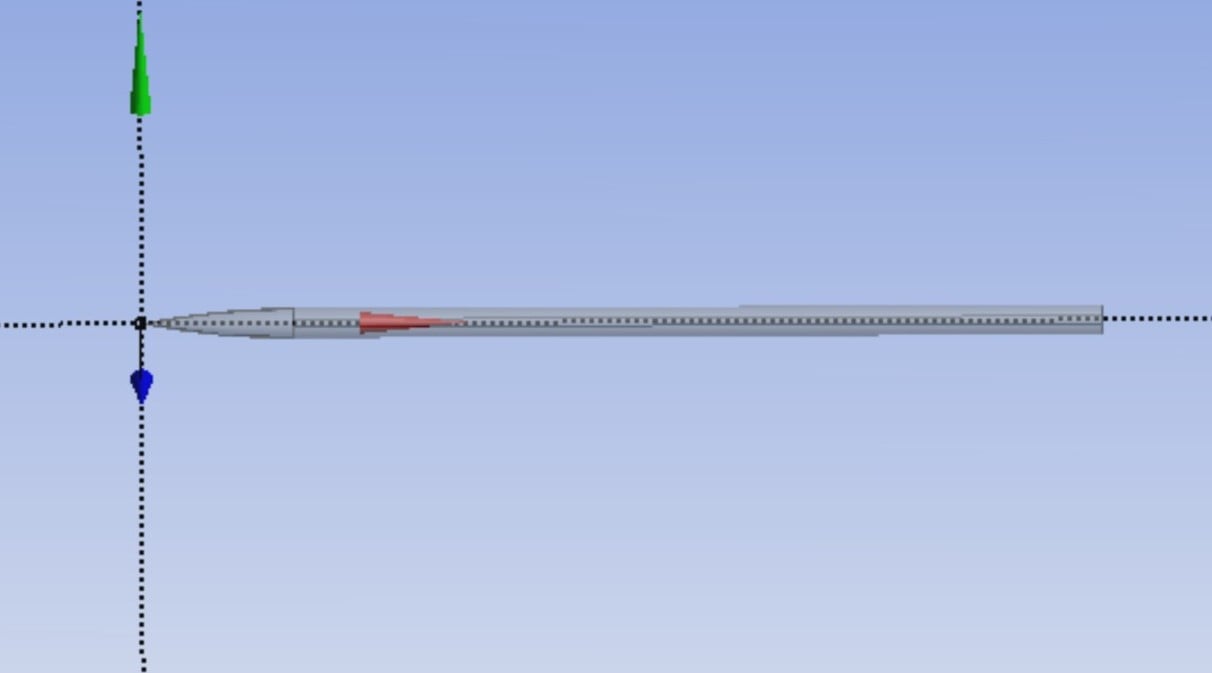

  I have been getting some troubles to mesh the tip of a rocket's nose cone. I need to run a 3-D CFD simulation with turbulent flow at supersonic speed and I cannot get a good quality due to the tip of the cone. I attach some picture of the geometry. Thanks for the help.
- May 19, 2020 at 5:19 am

  Keyur Kanade
  Ansys Employee

  There are certain videos on youtube about hex mesh for airfoil.

  use similar strategy for this model as well.

  you can use symmetry instead of full model.

  Regards,

  Keyur

  If this helps, please mark this post as 'Is Solution' to help others.

  Guidelines on the Student Community

  How to access ANSYS help links
- May 19, 2020 at 2:48 pm

  Mario95
  Subscriber

  Is there a way to make a structure mesh out of it?
- May 20, 2020 at 1:48 am

  Mario95
  Subscriber

  If I do symmetry I will not be able to model angle of attack because the flow will not be the same in both symmetry planes right?
- May 20, 2020 at 5:38 am

  Keyur Kanade
  Ansys Employee

  if it makes angle to y axis only then symmetry can handle it.

  Regards,

  Keyur

  If this helps, please mark this post as 'Is Solution' to help others.

  Guidelines on the Student Community

  How to access ANSYS help links
- May 20, 2020 at 1:34 pm

  Mario95
  Subscriber

  Perfect thanks for your time
