  3. Mechanical: layered sections for laminate plate

Mechanical: layered sections for laminate plate

TAGGED: , , ,

    • July 18, 2023 at 2:20 pm
      Robert Mehlig
      Subscriber

      Hi,

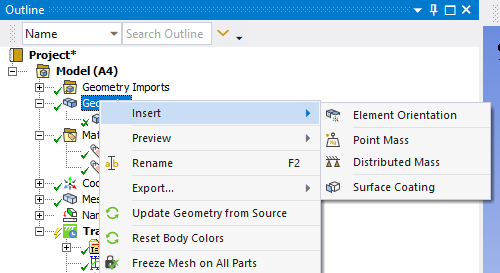

      I am simulating guided waves in a carbon fibre reinforced laminate plate in ANSYS Mechanical Transient Analysis. So far, I have defined the materialitic properties as homogenous throughout the plate, but now I want to use "layered sections" to define the fibre layers. I am unable to find the option under the "Geometry" tree.

      The model is a 500mm x 500mm x 2mm plate defined as a solid object. What could I be doing wrong?



      Thanks in advance,

      Robert

    • July 19, 2023 at 11:30 am
      Nanda
      Ansys Employee

      Hello Robert,

      Layered sections option is only available when the model has either midsurfaces or surface elemnts. Solid elements are not vaild to create layered sections.

      For more information on using layered sections, kindly refer to below link:

      Layered Section (ansys.com)

      Regards,

      Nanda.

      Guidelines for Posting on Ansys Learning Forum

      How to access ANSYS help links



      • July 20, 2023 at 9:21 am
        Robert Mehlig
        Subscriber

        Thank you, got it to work.
