Mapped Mesh around Aerofoil

    • April 19, 2024 at 8:12 am
      Tom Davies
      Subscriber

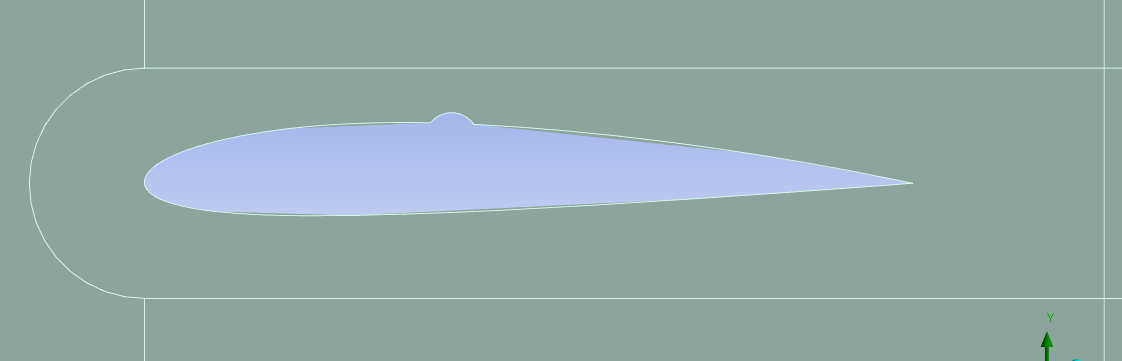

      Modelling an aerfoil with a cylinder protuding the top surface and I am struggling to get a mapped mesh around the aerofoil, I have tried different projection lines to split the mesh up but nothing worked, always failed around the cylinder. Any ideas?



    • April 22, 2024 at 1:55 pm
      Federico
      Ansys Employee

      Hello Tom,

      what sizing controls are you using? Do you get any specific message when it fails?

      • April 22, 2024 at 5:49 pm
        Tom Davies
        Subscriber

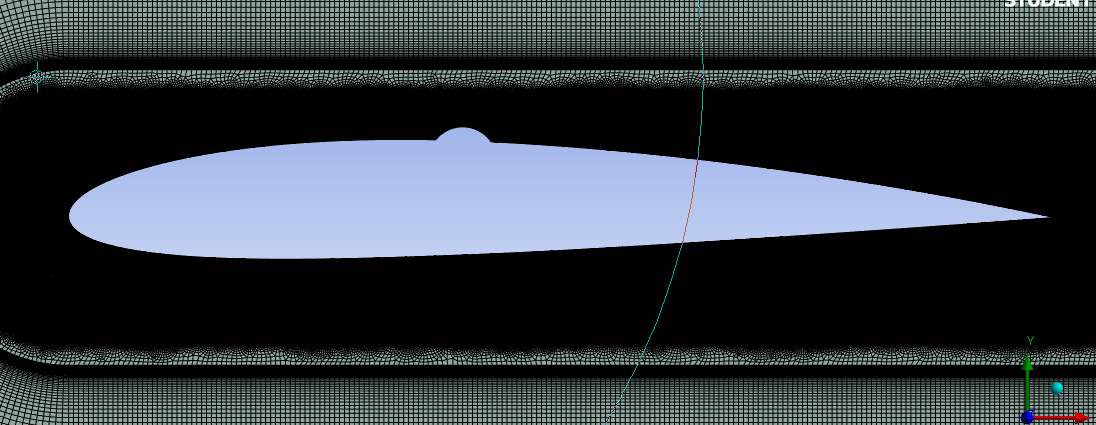

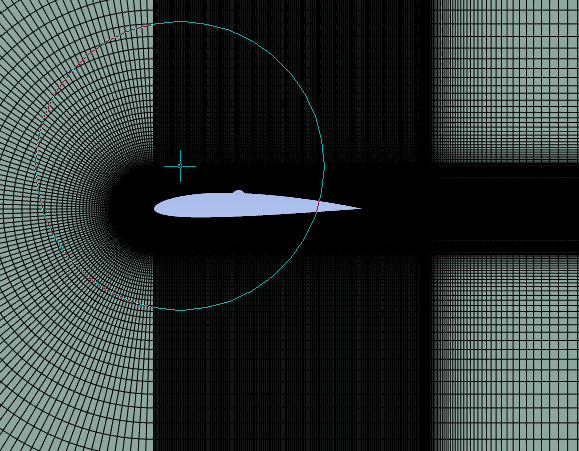

        Hello, I have tried a new approach, but still with same issue, unable to map mesh around the cylinder.

Viewing 1 reply thread
  • The topic ‘Mapped Mesh around Aerofoil’ is closed to new replies.
