Hello,

I’m using mat63 Crushable Foam for which lspp generates (fringe 81 mat063;pfringe ) “volumetric strain ln(v)” fringe map, which looks reasonable to me.

I was not able to find lspp GUI way to output the volumetric strain time-history for selected elements. Instead, I tried the “etime 81” command, which produced History Variable #1 graphs.

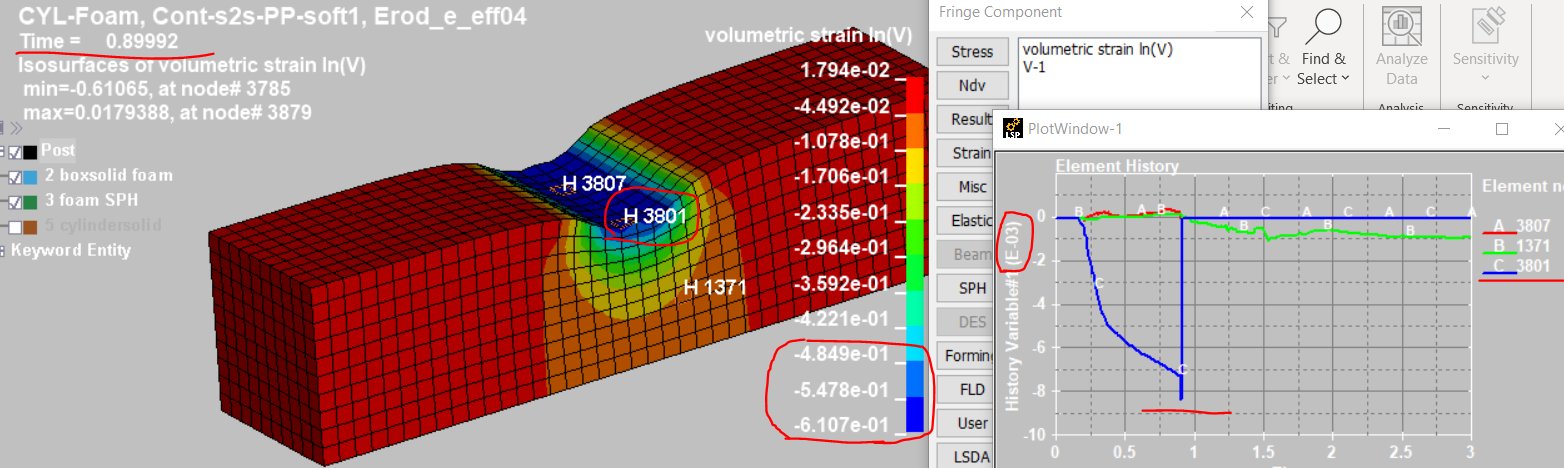

The issue I’m facing is a significant mismatch between fringe map and element history values (see Figure below).

Please advise on the right way to output history of “volumetric strain ln(v)”.

[Ushnish Basu]

You can output history for a particular element using one of the following two approaches:
Post -> History -> Element
First choose the appropriate fringe plot using Post -> Fringe, then use Post -> History -> Scalar to plot the history of that particular fringe
