Line Body, Surface Connections and offsets

- March 16, 2019 at 12:32 pm

  Ommm
  Subscriber

  Hey,

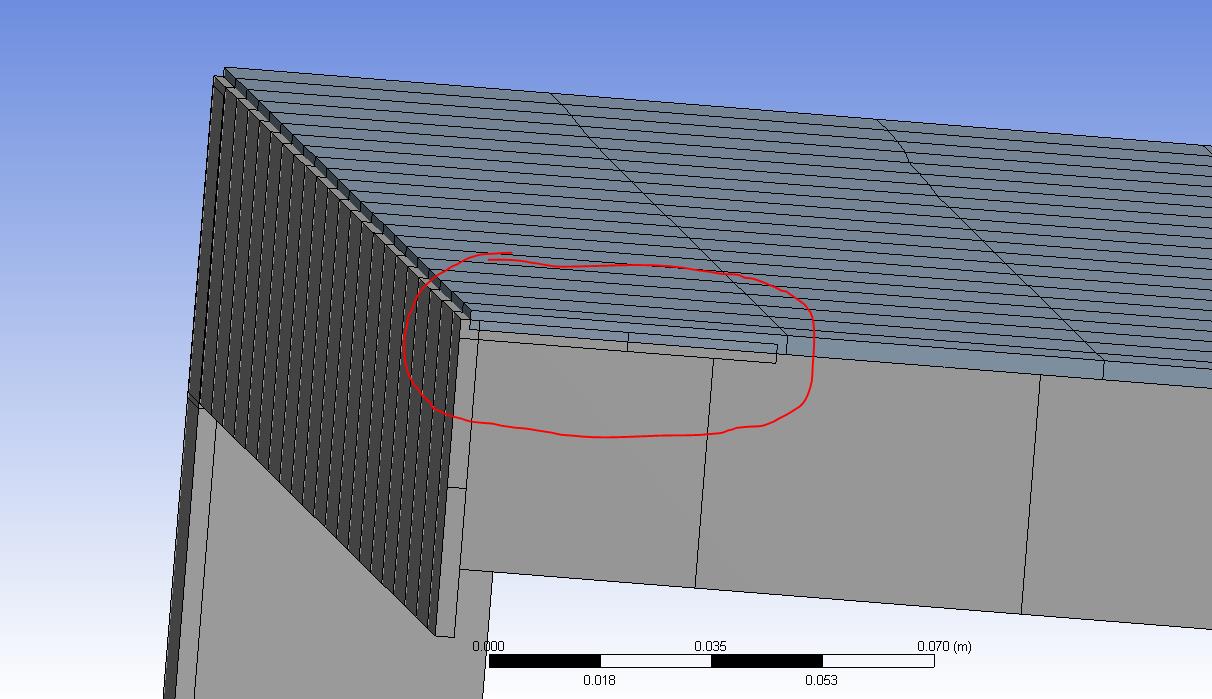

  I have created a line body structure, provided with a L cross section. And while putting surface of thickness around 3 mm. I am facing this issue where the line body and surface are overlapping each other

  I tried to change the "offset type" setting from " centroid" to "origin" for line body and "Bottom" in case of the surface body.

  But couldn't get the desired result. (As in reality sheet should be placed above the beams)

  Can someone help with this problem?

  Thanks and Regards

  OM
- March 20, 2019 at 4:02 am

  Sandeep Medikonda
  Ansys Employee

  Where are you providing the offset, in mechanical? If so, this will be applied at the solver level.

  Alternatively, you may alternatively try to use the part transform feature introduced in Mechanical 2019R1.

  Why not just take the model to SpaceClaim and move it as needed to account for the physical separation.

  Regards,
  Sandeep
