  3. Issue with Coordinate System

Issue with Coordinate System

    • July 3, 2023 at 10:30 am
      Michele De Giosa
      Subscriber

      Hello everyone,

      i created this structure in APDL. So, now i would like doing a homogeneization.

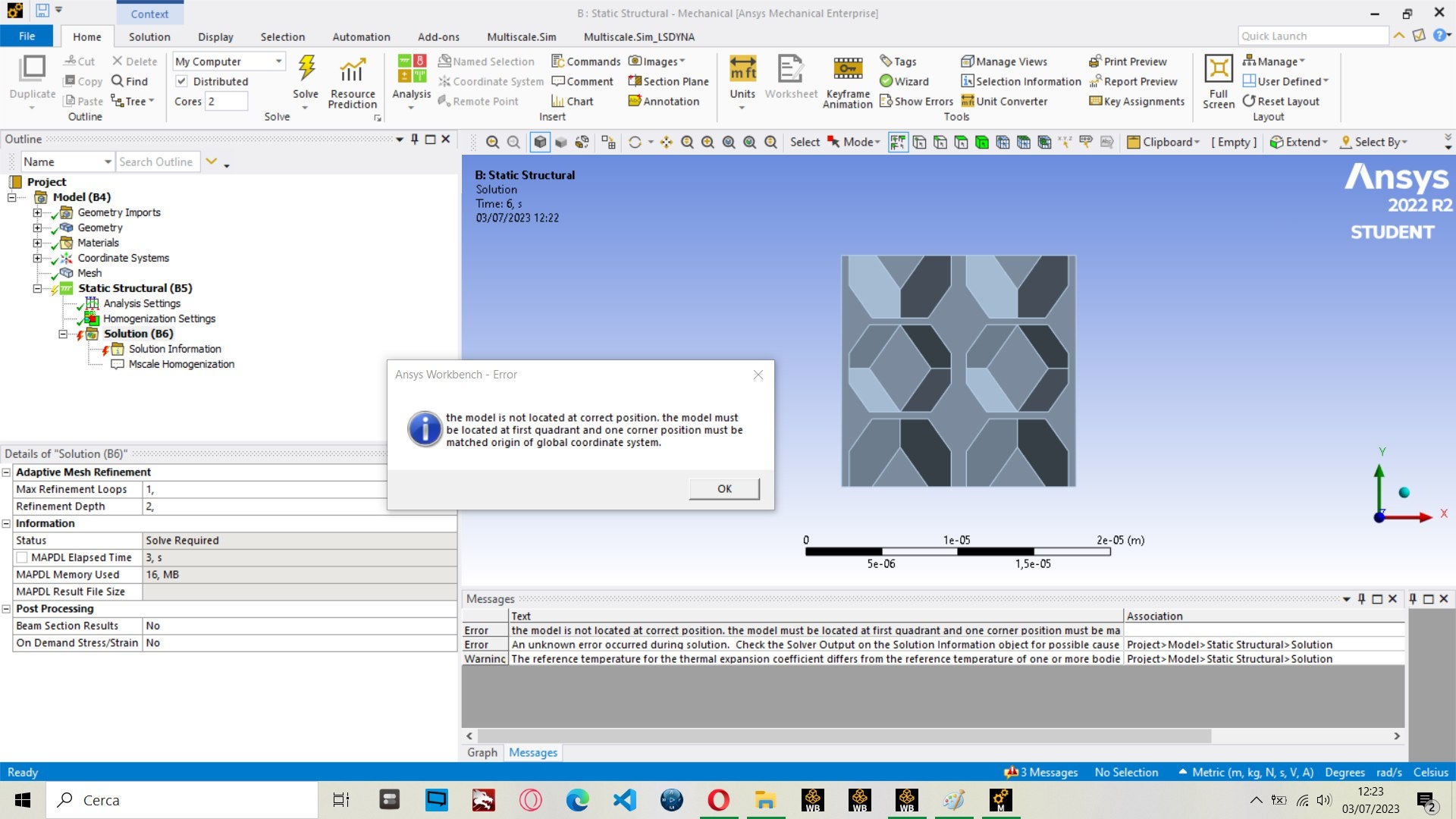

      I have this problem with geometry, but i don't know how to solve this issue.
      Someone can say me how to fix this problem? Thx for helping

    • July 4, 2023 at 12:32 pm
      Aniket
      Forum Moderator

      Have you checked if the origin lies on one of the corner of the lattice and the lattice is first quadrant of the global coordinate system as indicated in the error?

      Can you select and post an image with global coordinate system?

      -Aniket

      How to access Ansys help links

      Guidelines for Posting on Ansys Learning Forum

    • July 7, 2023 at 7:38 am
      Michele De Giosa
      Subscriber
      Hi Aniket,

      sorry for the delay, but I had to study before solving the problem, which was successful with one type of geometry, but not with the other! So I think I will have to change the geometry type to match the edge and angle, with the vertex of the coordinate system.

      Thank for support
Viewing 2 reply threads
  • The topic ‘Issue with Coordinate System’ is closed to new replies.
