Hi all,

I have been trying to work with iso-surfaces across time steps.

Here’s what I wanted to achieve:

·  At time t₁, I generate an iso-surface over a certain set of cells in my domain from time step 1.

·  At time t₂, I obtain another iso-surface from time step 2, which may overlap with or include different cells than at t₁.

·  After t₂, I want the total spatially integrated iso-surface to include all cells that were part of the iso-surfaces at t₁ and t₂.

Is there any specific method available to perform such operations. My simulation is a multiphase vof model.

Thanks in advance for your help.

[Rob]

You can have a look at surface export (possibly as a VRML file) and then import>imprint.

[sivaraman-s]



Hi Rob,

Thanks for responding. The surface imprint option works in .stl, .msh, .cas files if I understand right.

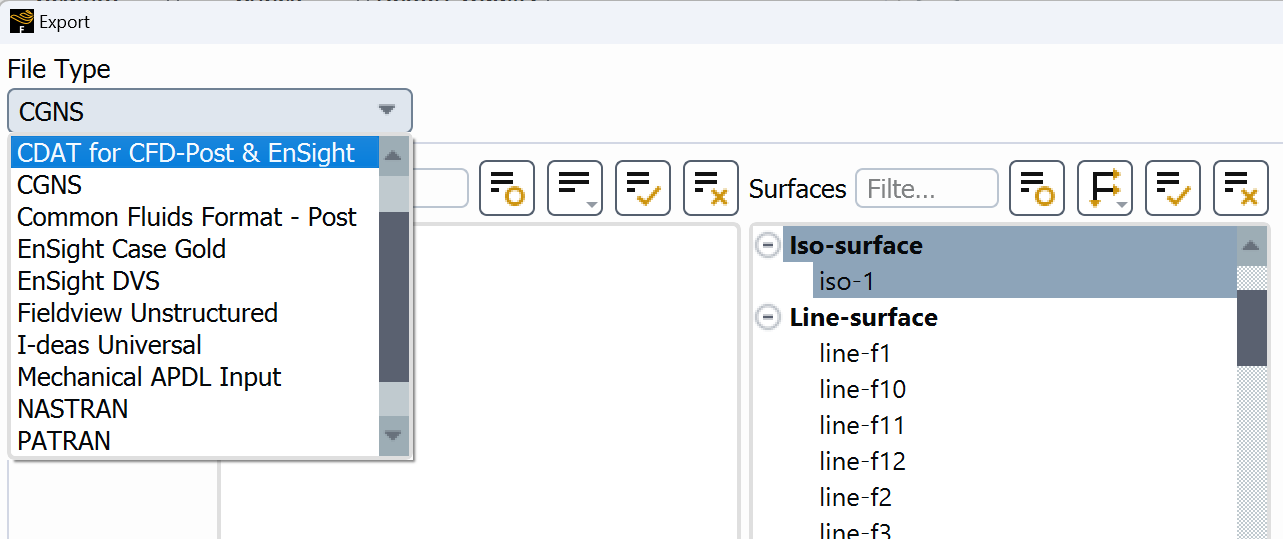

I want to, for example, export iso surface created in time step 1, for example as shown below. This way I have few formats of exporting the iso surface, so with this appraoch can I still use surface imprint to combine the iso surface from this time step with the second time step?



[Rob]

Ah, they've changed something. I've done something "clever" in older releases. I'll have a look, but may not be able to share immediately if it's really "clever".

[sivaraman-s]

Thanks Rob, looking forward to the response.
