Hello there,

I am using ANSYS Electronics 2022. I created a circuit by using Simplorer for a transformer. And I created .sph file by Maxwell Circuit -> Export netlist.

Whenever I try to import the circuit on Maxwell 2D by assigning excitation -> External Circuit -> Edit External Circuit -> Import Circuit Netlist, I get the error message saying "Error encountered in importing file. Invalid .SUBCKT format in netlist file."

[GLUO]

Hello,

The circuit picture you shared looks like most components are shorted by incorrect wires over them. Could you try removing those wires?

GL

[Ali Fırat Çobanoğlu]

Hi Gluo,

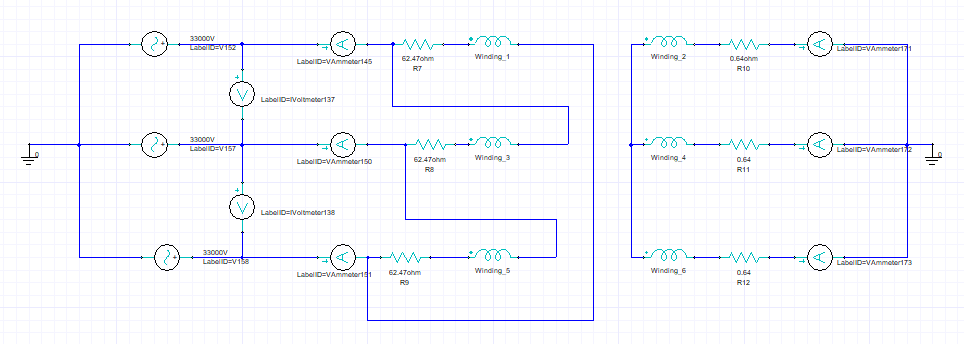

Thank you for reaching me out. Yes, you are right, I made a huge mistake but after I posted it, I believe I made the required changes and re-drew it properly. Here's the changed version:

But, the problem is not solved yet. I don't understand why.

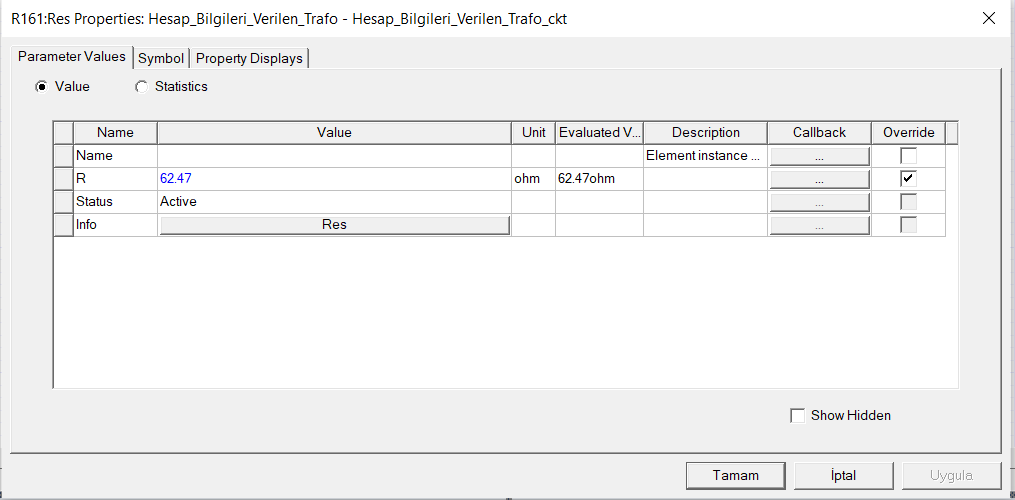

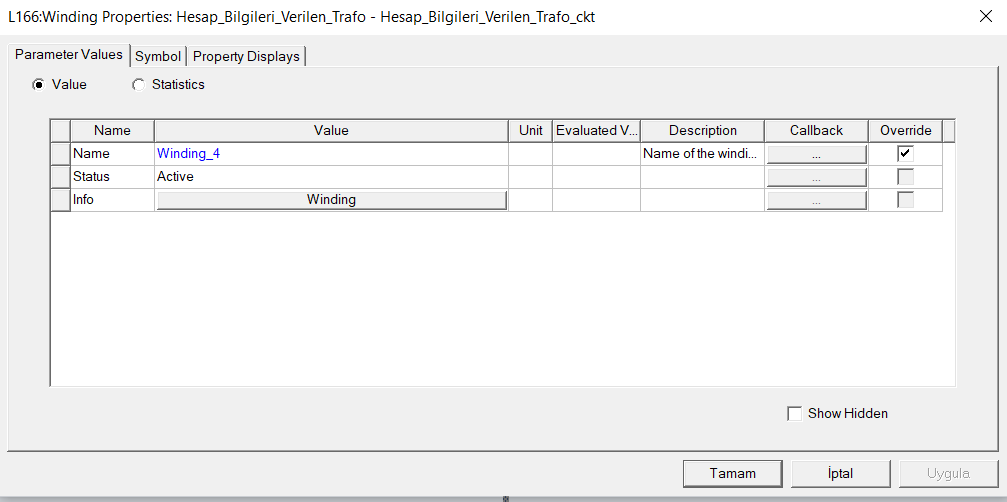

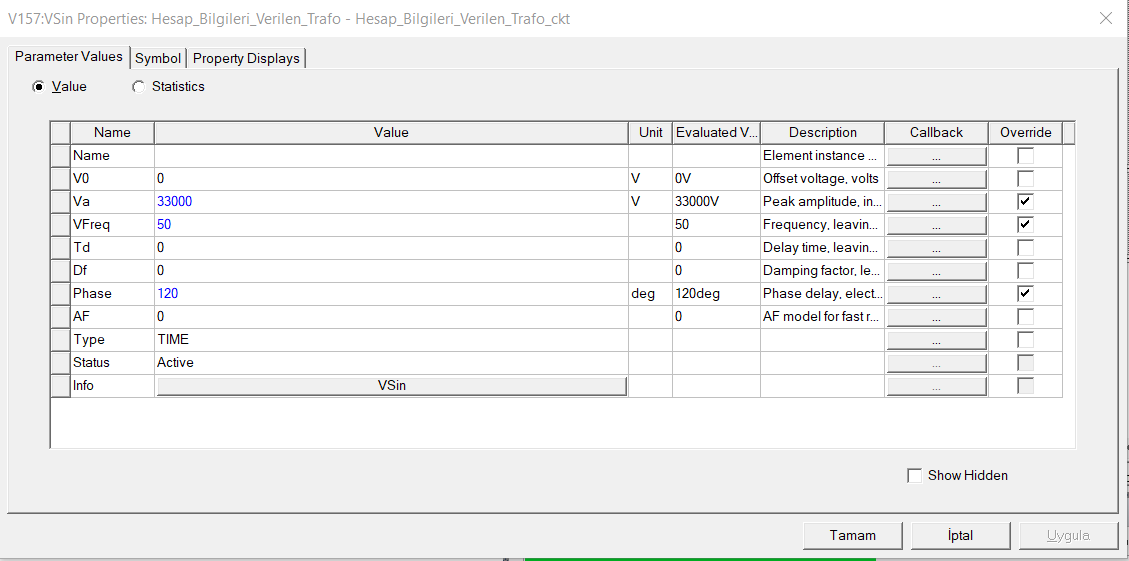

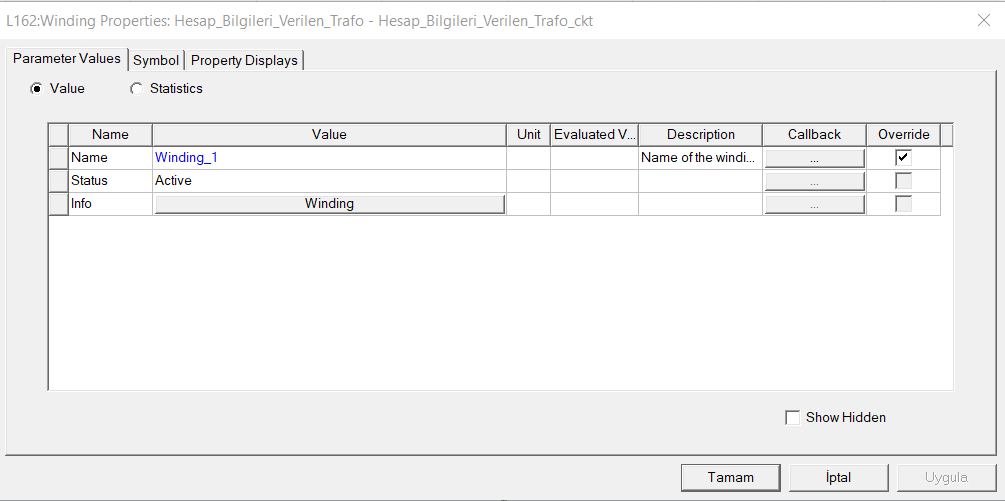

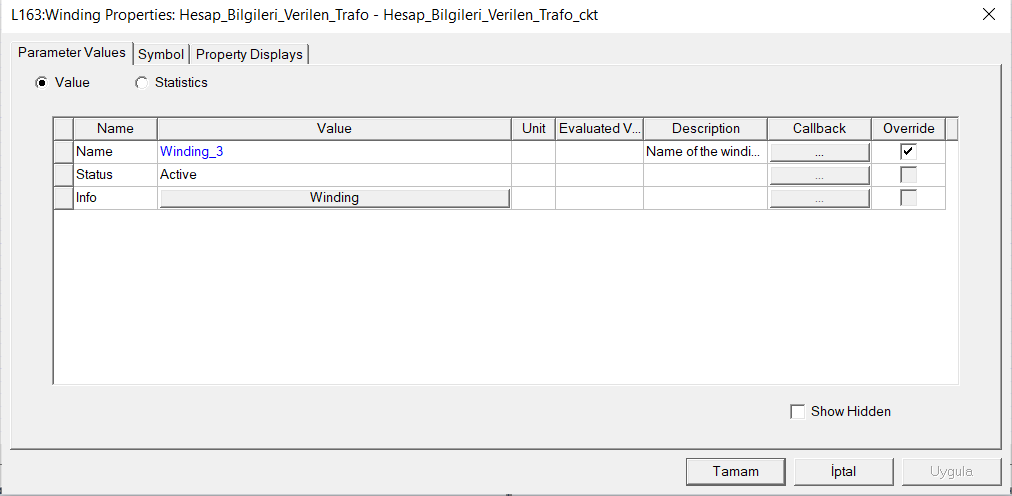

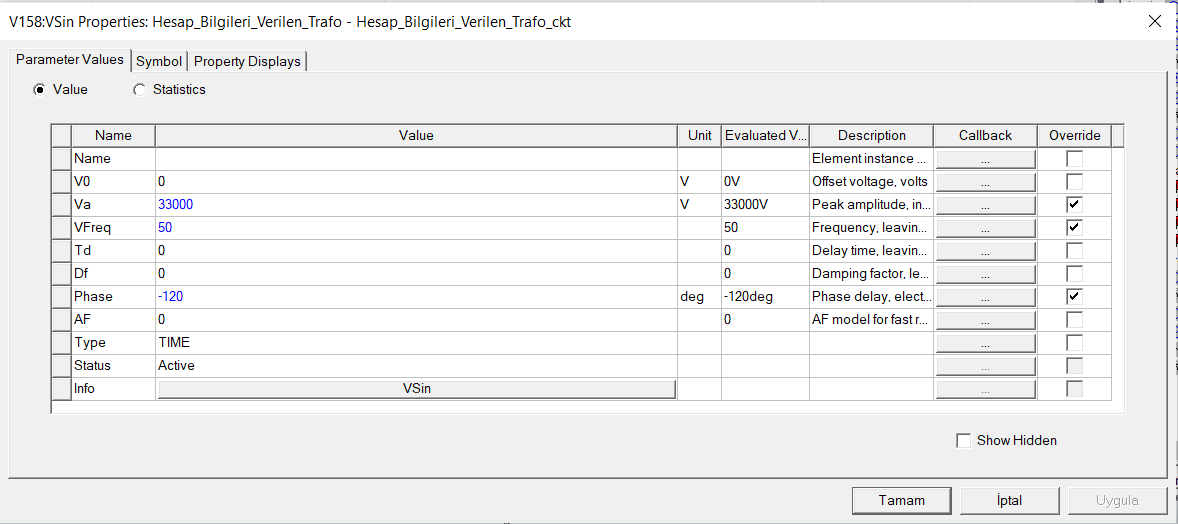

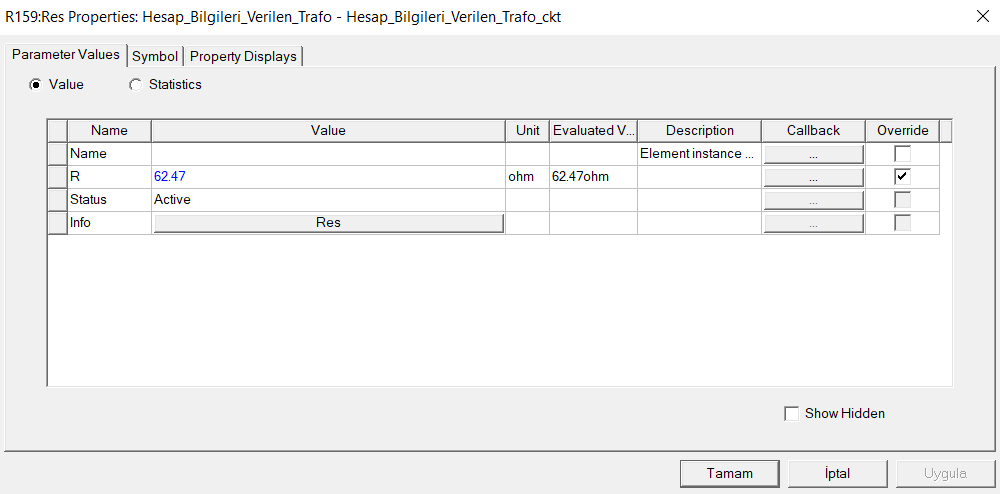

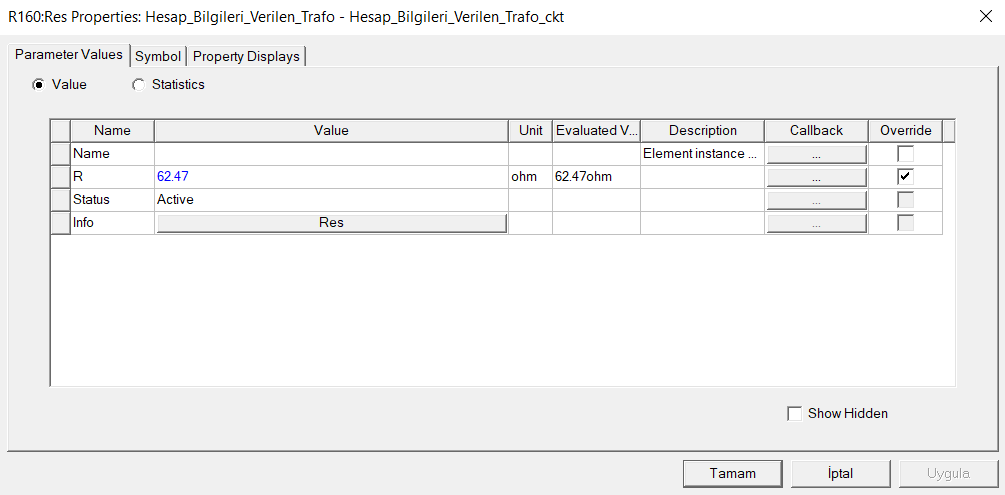

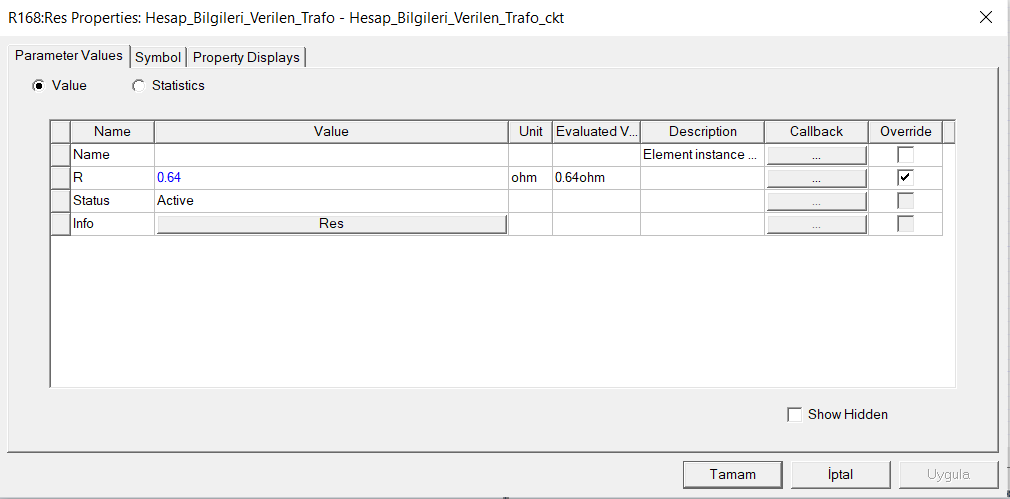

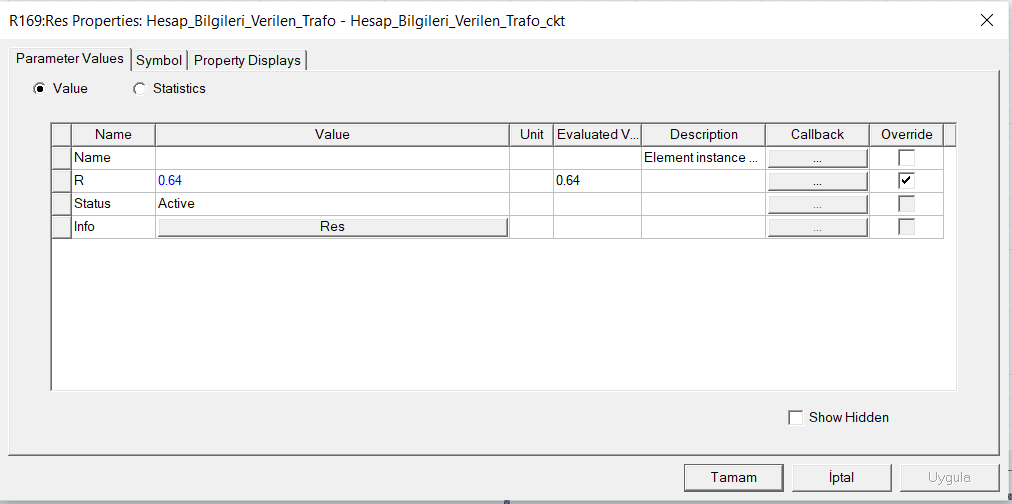

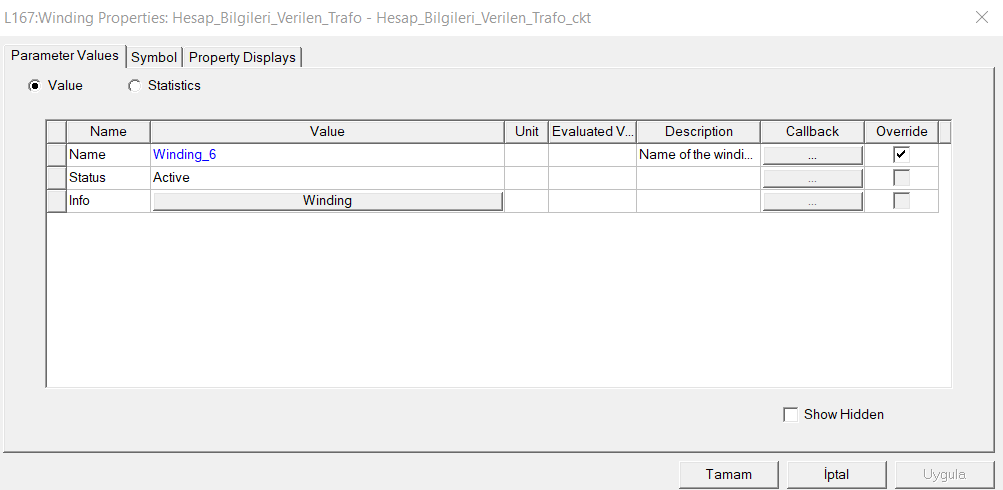

Here is the properties of each and every component that I used to draw the circuit.



And it shows nothing of course on Voltmeters and ammeters.
