inflation created stairstep mesh at some location

- January 6, 2019 at 3:45 pm

  Beni
  Subscriber

  how to solve this massage?
- January 7, 2019 at 9:16 am

  Rob
  Forum Moderator

  Stair step is caused when there's no space to fit all of the inflation into the model, or there's a problem with an angle. If the mesh is OK then there's no need to fix it. Otherwise (with poor mesh) locate the problem area and work out why that's the case: if you add images into the post we can help as staff can't open attachments.
- January 7, 2019 at 2:17 pm

  Beni
  Subscriber

  thank you sir rwoolhou for your respon.

  my mesh is ok but any warning like this(inflation created stairstep mesh at some location & element volume exceeds the warning limit. small element volume was encountered)

  And I don't know why I cant insert image in this discussion room
- January 7, 2019 at 2:33 pm

  Rob
  Forum Moderator

  Use the "insert image" option. Not sure why element volume would trigger a warning, can you post an image of the warning too?
- January 7, 2019 at 3:04 pm

  Beni
  Subscriber

  this my warning image
- January 8, 2019 at 3:53 am

  Keyur Kanade
  Ansys Employee

  if mesh orthogonal quality is is ok then you can proceed.

  make sure that min orthogonal quality is greater than 0.1
- April 3, 2023 at 7:21 am

  Kieu Truong
  Subscriber

  I encounter the same problem of element volume exceeds.
  Any hint for solving this problem?

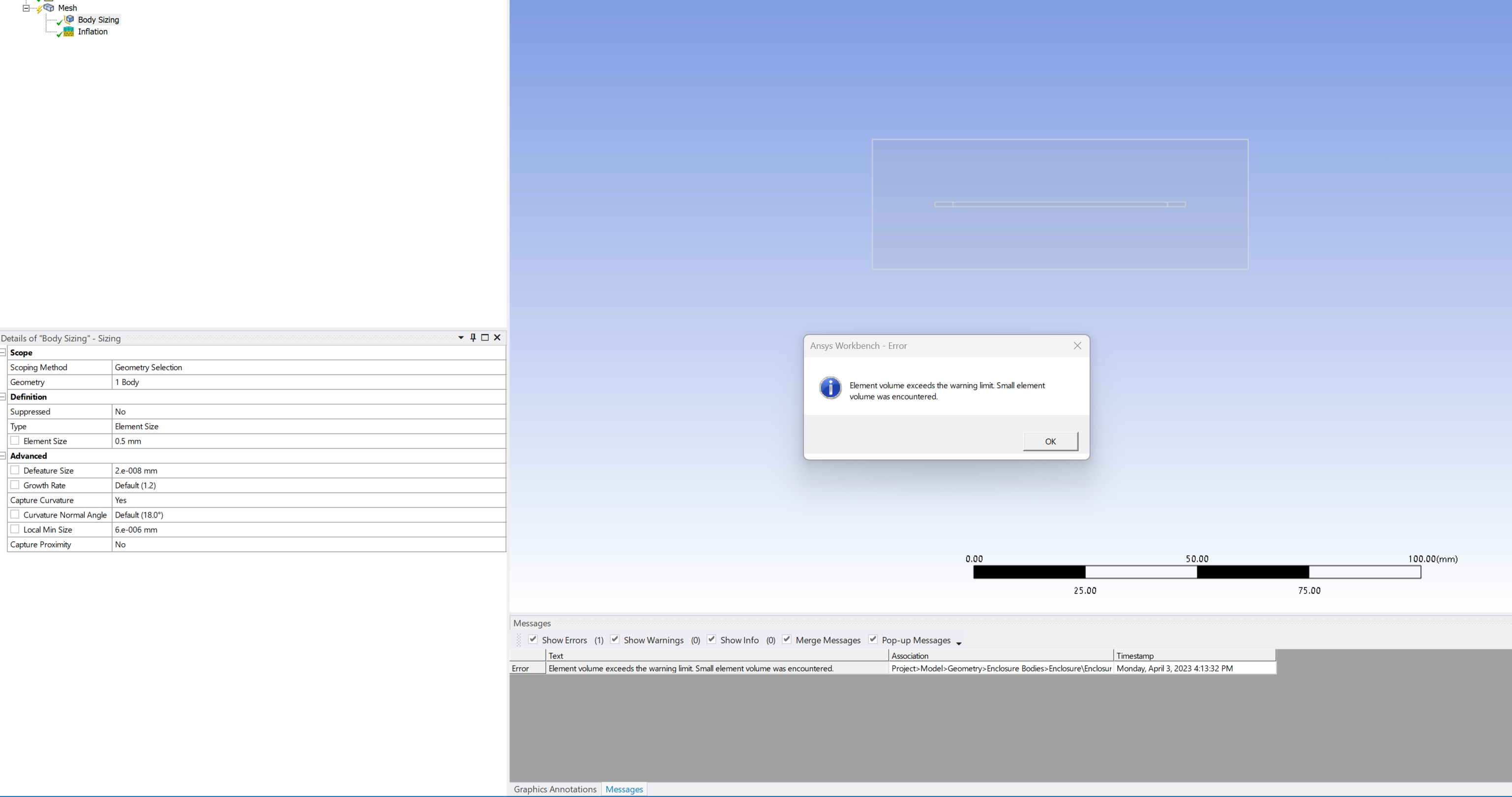

  Please find the attached photographs.
  Thank you.
