Hi,

I am a student how write my master thesis. I will model various bridge typs using mostly SHELL181 elements. However, I want an efficient way of creating and adjusting geometries into the ANSYS MECHANICAL ENTERPRISE. My intial idea was to creat geometries in Spaceclaim, export as .anf file and then using /input, gemotry.anf. This doesn´t work unfortunally.

In previoud example file i got they wrote sometinhg like this, however I noticed there can be some problems when using .igs files and that it is better to use .anf or .inp files:

! Wand 1

/AUX15

IGESIN, RhinoModell_W1, igs         ! Import Rhinomodell

/prep7

NUMMRG,ALL

asel,s,loc,z,-0.01,-100000

asel,u,loc,Y,2,100000

aovlap,all

NUMCMP,area

allsel

If someone could show me how to do that it would be healpfull.
Thanks beforehand.

[wrbulat]

Hello Filip,

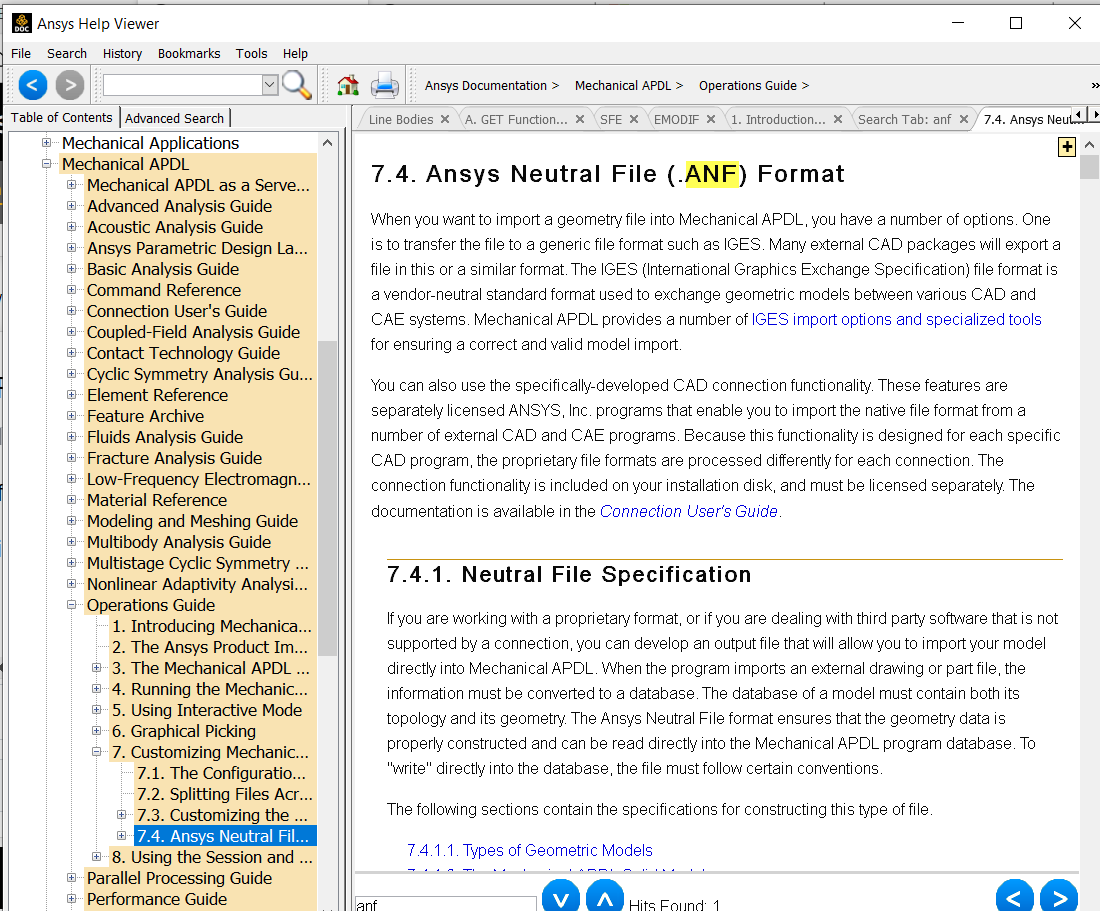

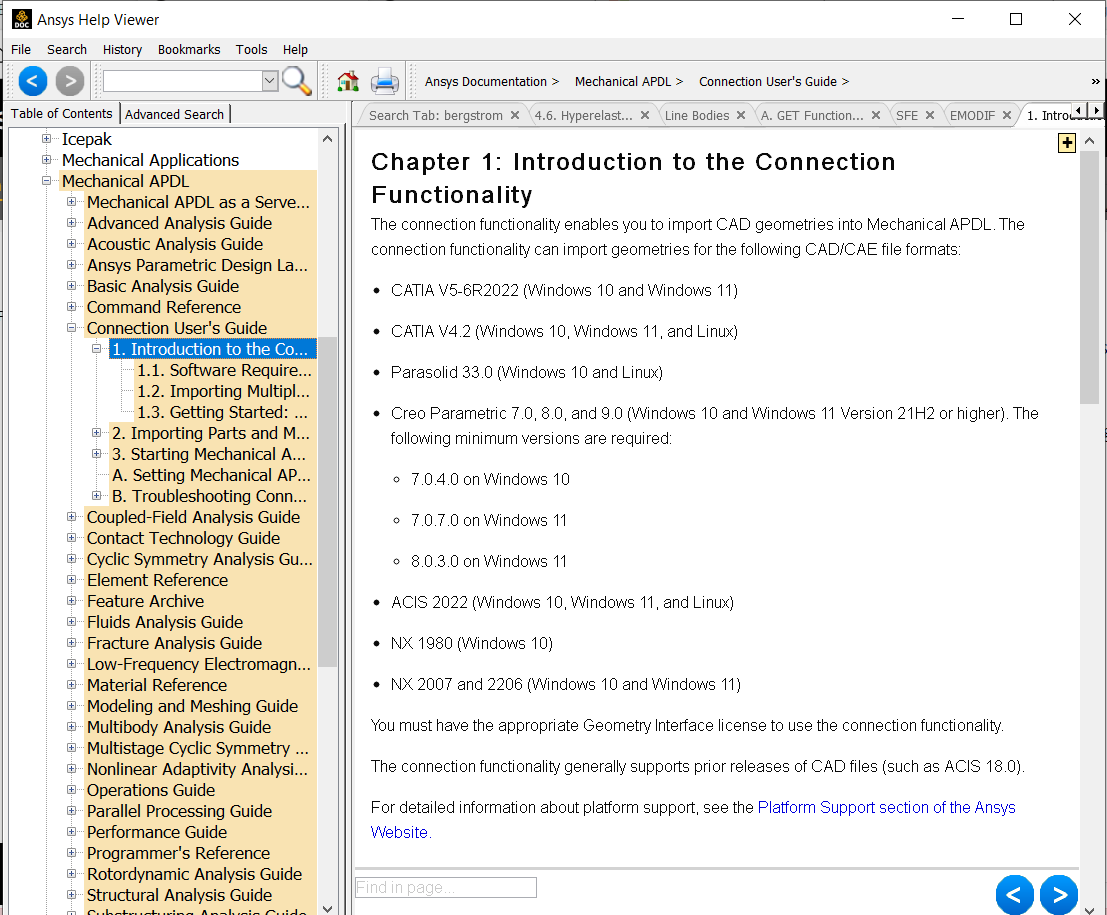

One thing you might consider is to locate the Help articles shown in the image below and try a number of different available options for importing geometry into MAPDL:

If you have an .anf file, I think all you need to do is to read it into MAPDL with the /input command:

/aux15

/input,filename,anf



The following Help article describes .anf file contents/format:



but I don't see the simple instructions regarding how to read it in. So I'm not 100% certain, but I suspect what I have above is correct.

Kind regards,



Bill
