  3. I succeed to extrude(cut material), but I cant see the profile.

I succeed to extrude(cut material), but I cant see the profile.

TAGGED:
    • September 7, 2023 at 1:46 am
      Woochan Lee
      Subscriber

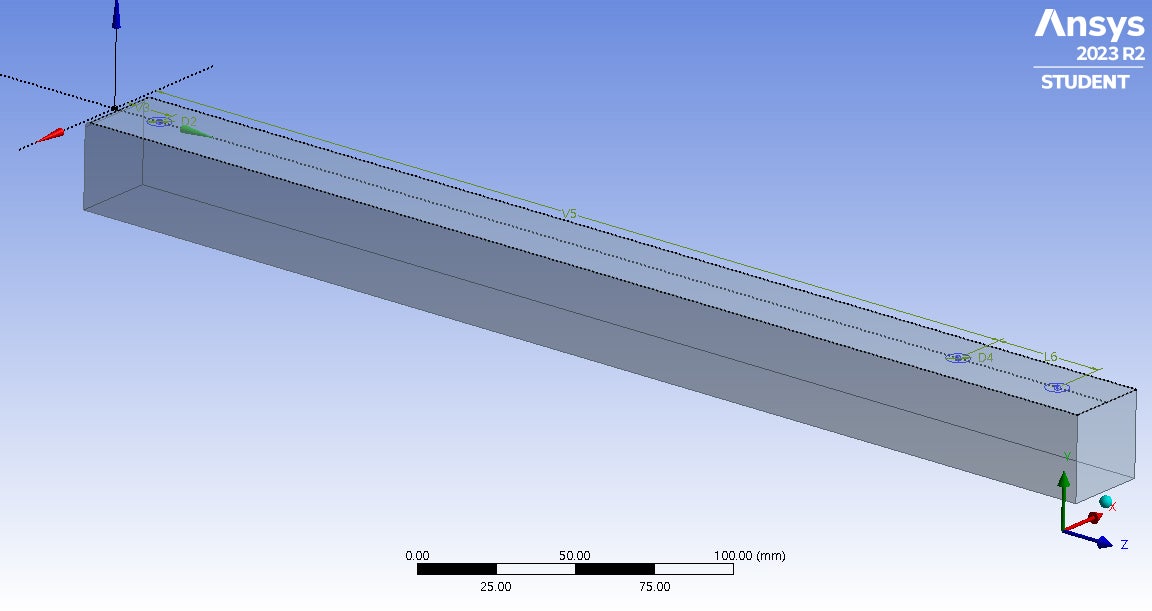

      I tried tu cut material from beam shown below, and I can see that it succeeded as you can see in the outline. However, I can't find the profile that's going through the beam. And I can't see any error messeges.

    • September 7, 2023 at 9:32 am
      Sampat Kumar
      Ansys Employee

      Hi
      Are you able to see the cut profile in the Design modeler?

      Regards,
      Sampat

Viewing 1 reply thread
