How to select each side of the surface body

    • Ji-Hyun Jeon
      Subscriber

      I would like to give heat flux and radiation conditions to both sides (top, bottom) of one Surface body in Transient thermal module.
      Previously, for example, a single layer with a thickness of 50 nm was divided into two surface bodies with a thickness of 25 nm and used after contact (bonded).
      In the multilayer thin film model, the existing method becomes cumbersome. So I wonder if it is possible to designate the top and bottom sides of the shell separately with the command (ADPL) function and give the heat flux/radiation to each side or is there another way.

      I use ANSYS 2022R2 version.

    • Sampat Kumar
      Ansys Employee

      HI Ji
      You may not find the options to select the different surfaces like top and bottom by using mechanical GUI in the 2022R2 version yet, but this can be possible with the ADPL command snippet in the Mechanical.



      Regards,
      Sampat





      • Ji-Hyun Jeon
        Subscriber

        Hello,

        Thank you for your reply.

        Yes, I want to know the ADPL command process.

        • Sampat Kumar
          Ansys Employee

          Hi Ji,
          You can follow the attached link to learn how to select the different surfaces in the Mechanical with the APDL command snippet.

          /forum/forums/topic/convection-coefficient-on-a-specifique-side-of-a-surface-bogy-shell/

          Let me know if you face any issues

          Regards,
          Sampat



        • Ji-Hyun Jeon
          Subscriber

          https://ansyshelp.ansys.com/account/secured?returnurl=/Views/Secured/corp/v231/en/ans_cmd/Hlp_C_SFE.html
          https://ansyshelp.ansys.com/account/secured?returnurl=/Views /Secured/corp/v231/en/ans_elem/Hlp_E_SHELL131.html

          Thank you for your help.

          Unfortunately, I don't have access to this link.

        • Sampat Kumar
          Ansys Employee

          Hi Ji,
          Please follow the link that I have attached below to get the information on how to access the Ansys help document.
          /forum/forums/topic/how-to-access-the-ansys-online-help/

          Regards,
          Sampat

        • Ji-Hyun Jeon
          Subscriber

          The problem of not having access to the document has been solved. Thank you.

          But I can't find only this link, can I know the search term?

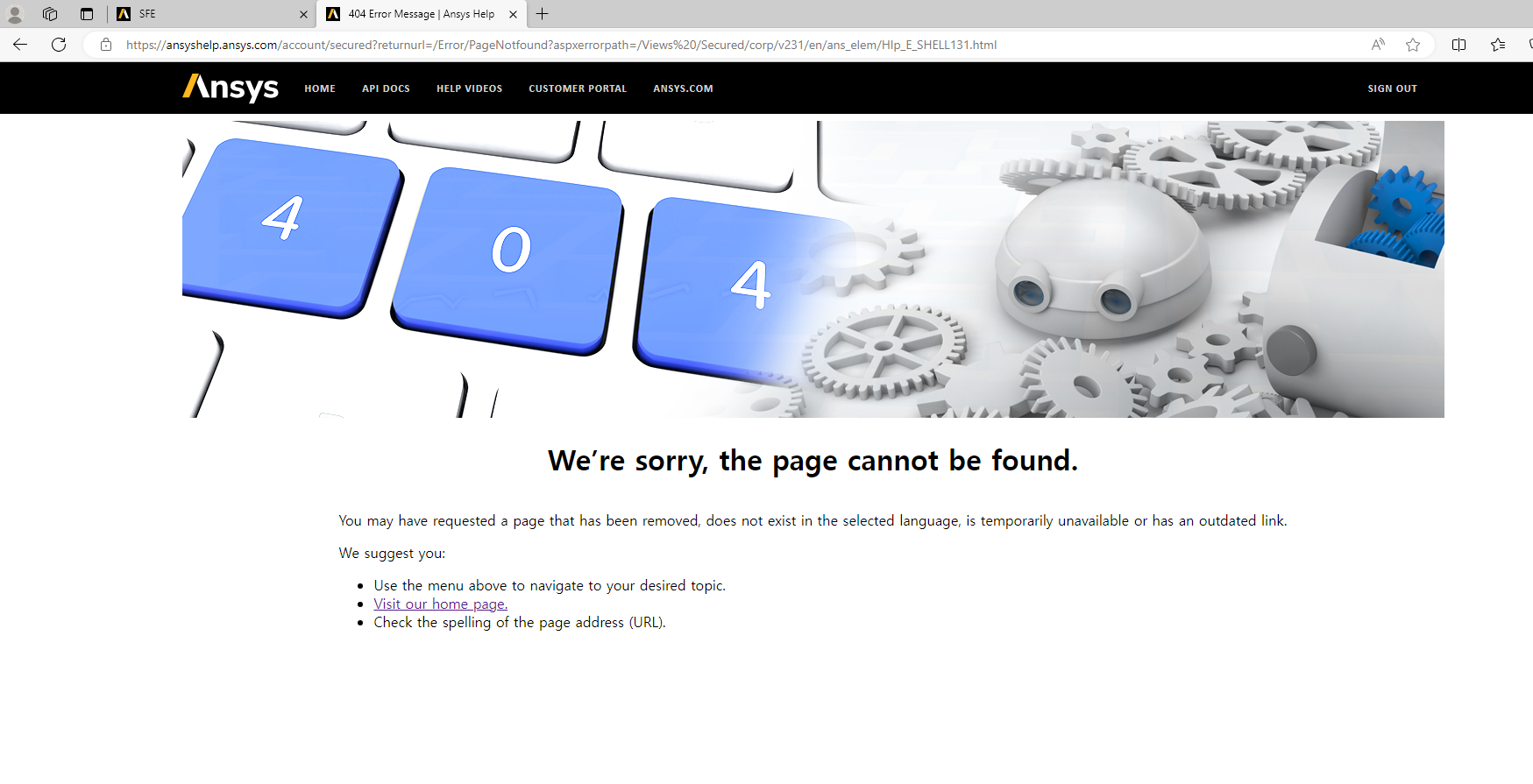

          https://ansyshelp.ansys.com/account/secured?returnurl=/Views /Secured/corp/v231/en/ans_elem/Hlp_E_SHELL131.html

        • Sampat Kumar
          Ansys Employee

          Hi Ji,
          I have checked at my end and it’s working. I have attached the link again, Please try.

          https://ansyshelp.ansys.com/account/secured?returnurl=/Views/Secured/corp/v231/en/ans_cmd/Hlp_C_SFE.html
          https://ansyshelp.ansys.com/account/secured?returnurl=/Views/Secured/corp/v231/en/ans_elem/Hlp_E_SHELL131.html

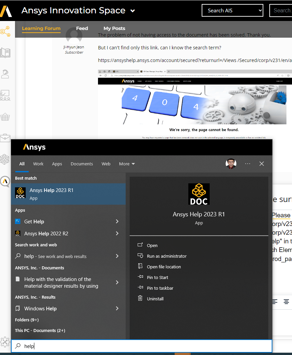

          If you are not able to open the above-mentioned link then you can write “help” in the start window and then open the ansys help documents–> Command Reference–> SFE Command and Similarly search Elemement reference–> Element library–> shell131

          https://ansyshelp.ansys.com/account/secured?returnurl=/Views/Secured/prod_page.html?pn=Mechanical%20APDL&pid=MechanicalAPDL&prodver=22.2&lang=en


          Regards,
          Sampat



    • Ji-Hyun Jeon
      Subscriber
      Thanks to your help, I was able to read the document.

      But it's my first time writing a command, so I don't know how to start it. I want to give Heat flux to face 2 (top), Heat flux 2 to face 1 (bottom), and each Radiation to face 1 and 2 (top, bottom). Is there an example to look at and refer to?

      Please help me. Thank you.

      • Sampat Kumar
        Ansys Employee

        Hi Ji
        You can follow the following link that might be helpful for you.
        /knowledge/forums/topic/how-can-you-apply-convection-on-both-sides-of-a-shell/

        Regards,
        Sampat

Viewing 2 reply threads
  • The topic ‘How to select each side of the surface body’ is closed to new replies.
