how could I make the inport CAD(stp.) to be solid? the original CAD is designed by NX CAD. However, after importing to ansys(2022 R1) Geometry, the model will be non-solid, and it will be made by several surface.





[dorischen]

Also, due to the non-solid model, i could only use face meshing to do mesh

how to modify this model? (Plz

[Nikhil N]

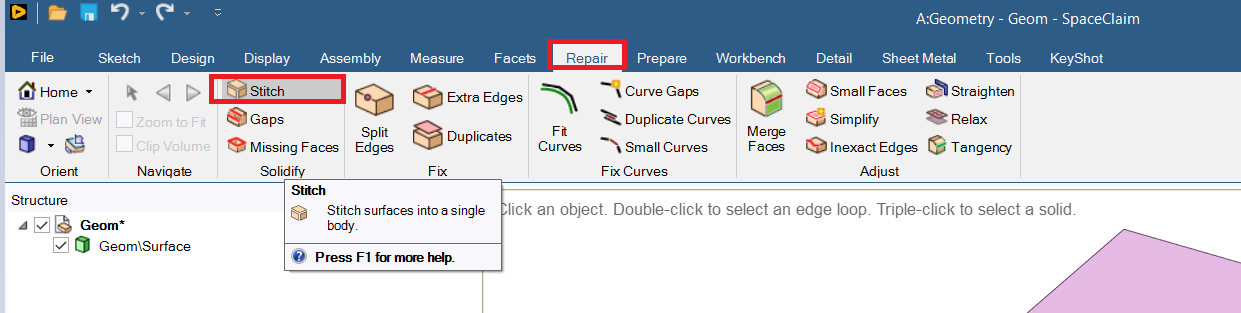

Can you try using 'Stitch' command from the Repair tab in SpaceClaim or Discovery to create a body out of the surfaces.



Regards,

Nikhil

[dorischen]

Hi team,

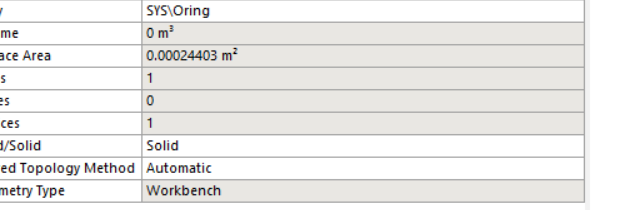

if I use designmodeler (DM) import 3D to geometry, how could i fix the components that don't have volume, shown as below

also, i used 'Stitch' command to repair the model, then it keeps non-solid ?

[Akshay Maniyar]



Hi,

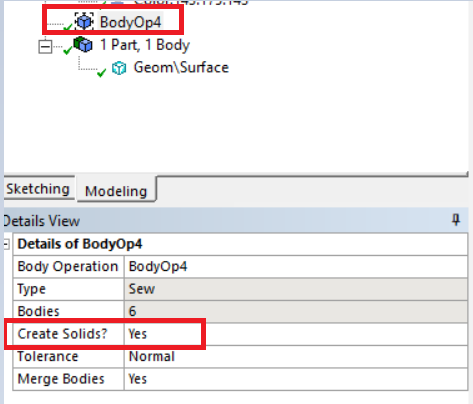

Can you try using ‘Body operation’ option under ‘Create’ Tab in DM? Also, make sure that ‘Create solid’ option is set to yes.

Also, as Nikhil suggested you can use ‘Stich’ option under spaceclaim to stich the surfaces and convert the surface bodies to solid body.

Thanks,

Akshay Maniyar
