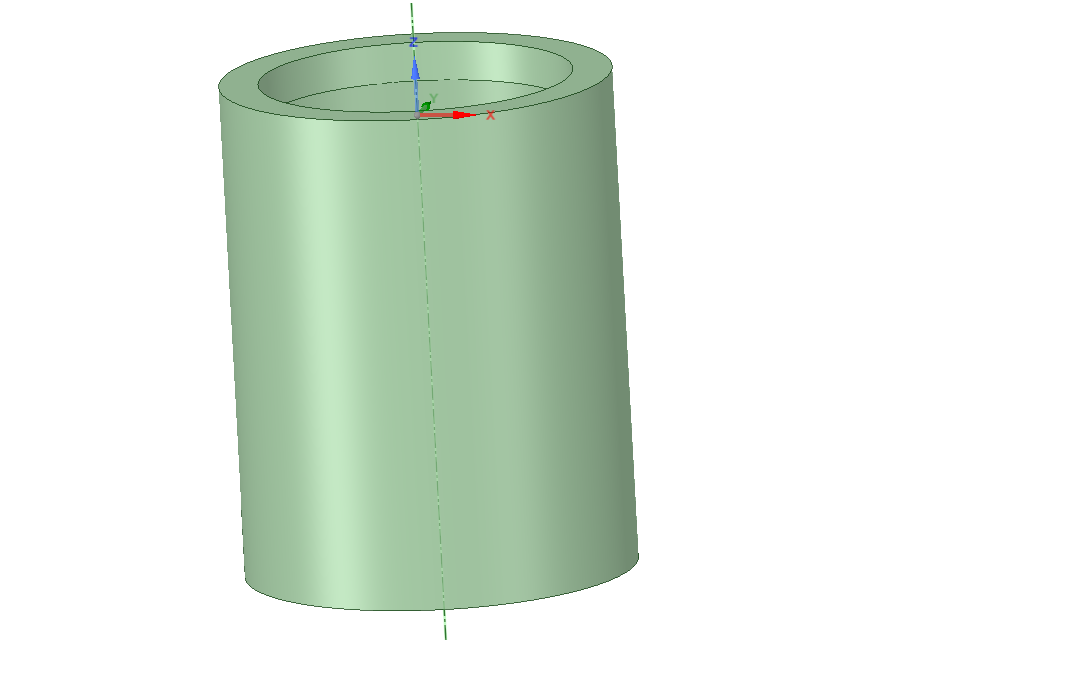

How to draw circle of a specific radius on curved section of a cylinder?

    • _aryaman
      Subscriber
    • Akshay Maniyar
      Ansys Employee

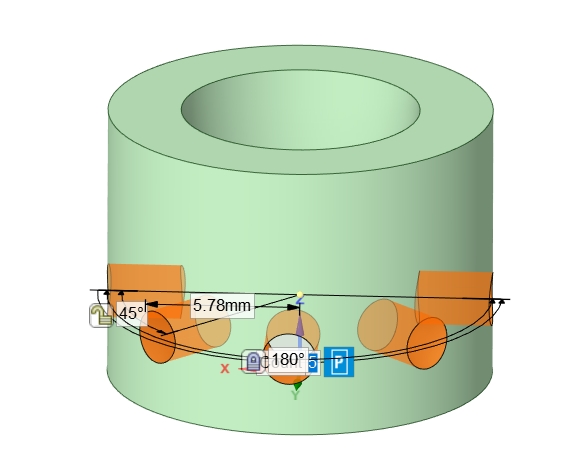

      If you can create one hole properly , and then use circular array for that hole with respect to central axis(by changing angle and number of holes). You can get the pattern as you showed.

      regards amaniyar
    • _aryaman
      Subscriber
      It worked, Thankyou very much.
