I have imported a meshed model keyword(.k) file to LS Dyna Prepost. I have to check the mesh quality such as:

• Skewness
• Aspect Ratio
• Jacobian

And I want to check few mesh properties such as number of quadmeshes, tetrahedral etc..

Where can I found this option in LS Dyna to check the mesh quality and its properties.



Thank You.

[Reno Genest]

Hello,

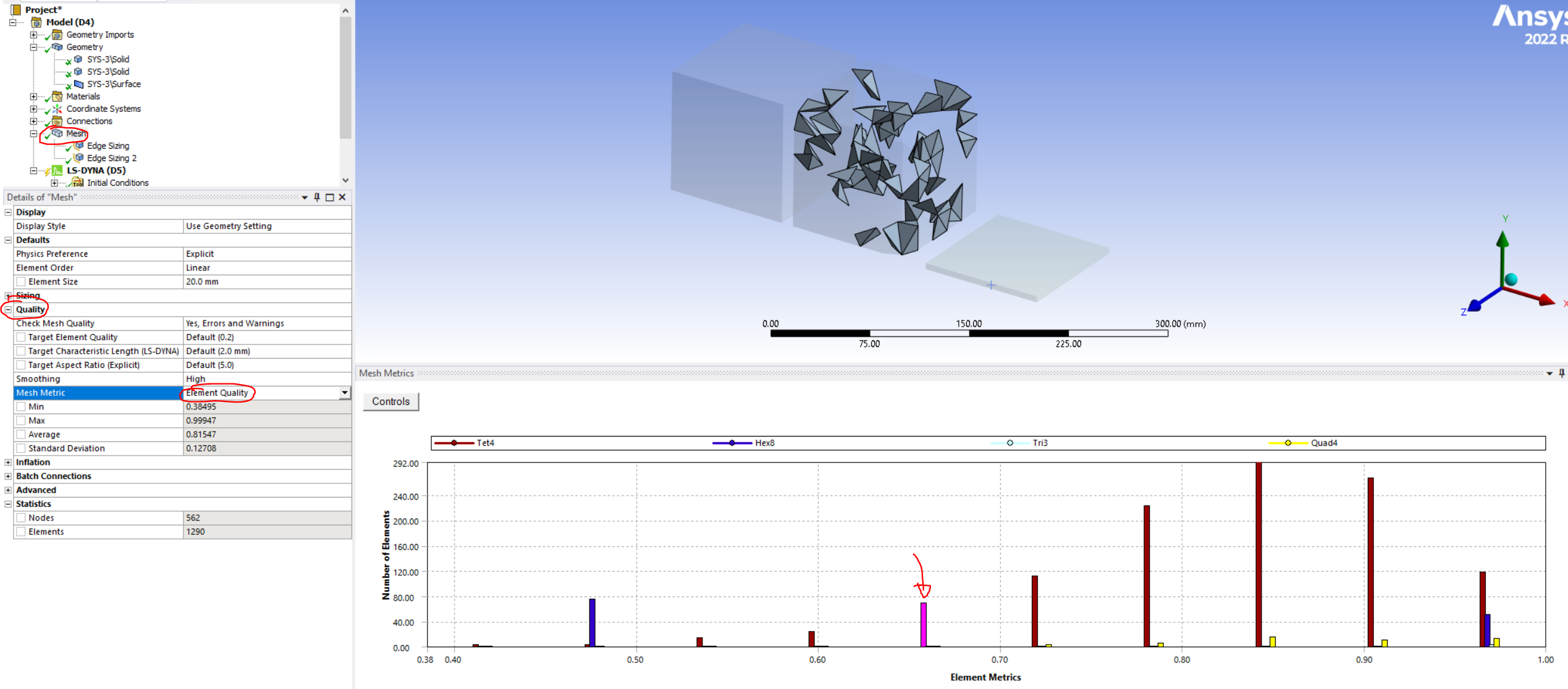

This is something you can easily do in Workbench LS-DYNA:

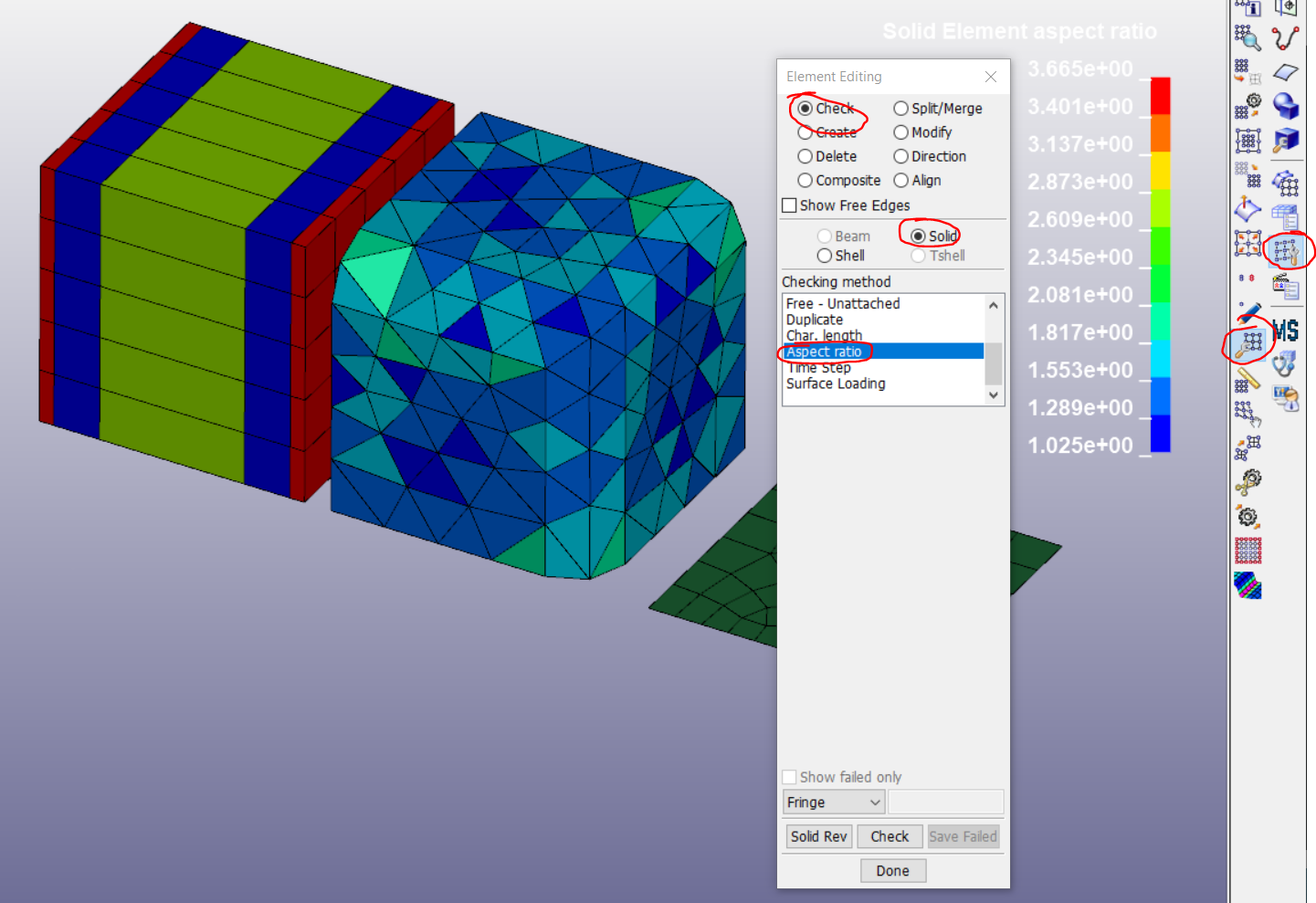

In LS-PrePost, you can check the element quality as follows:

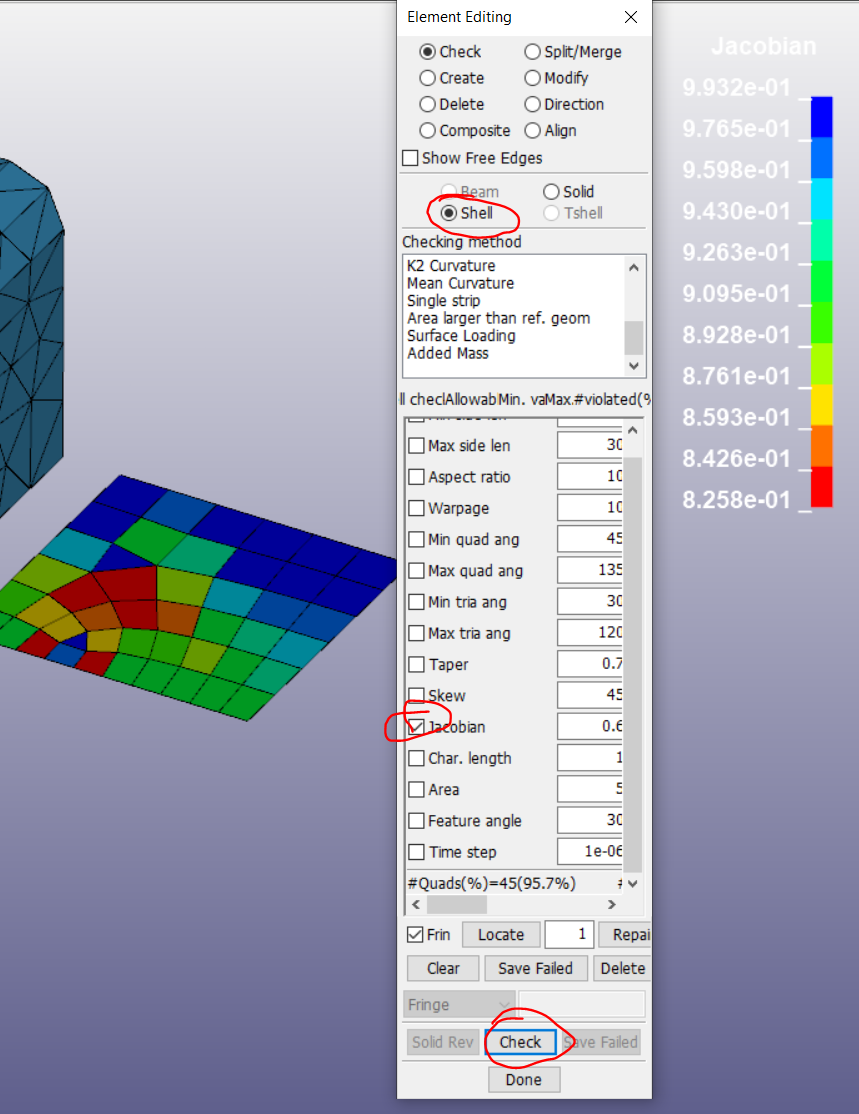

Note that you will have different mesh quality metrics based on the element type (solid or shell) selected.



You can count the number of hex elements vs tet elements by looking at the element formulation (elform):



Solid elform=1 are hex elements while solid elform=10 are tet elements.

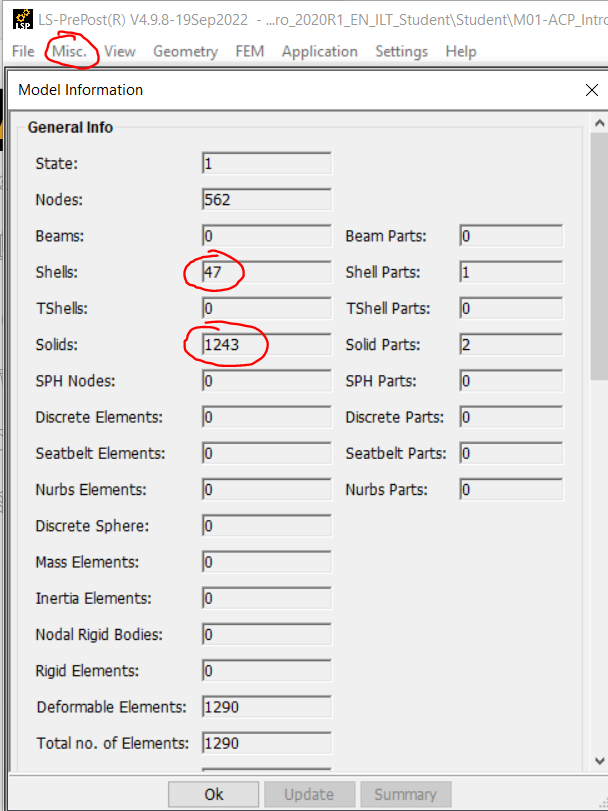

You can get the number of solid vs shell elements in LS-PrePost by clicking Misc. > View Model Info:
