For export my work in Keyshot, I need to re-oriented my work in XYZ. I can't do it with CONCEPTION and the icon Created. What is the good way to fix it ?

[Gaurav Sharma]

Hi Vincent Rouillot

Are you looking to replace the default orientation of coordinate system? For instance, by default, Z is vertically upwards and if you want to have X as default vertical?

I could not understand what you intend to say by "Concption and the icon created" . Please provide more insight into your problem for me to help you better.

Thanks,

Gaurav

[vincent.rouillot]

hello Gaurav_ANSYS

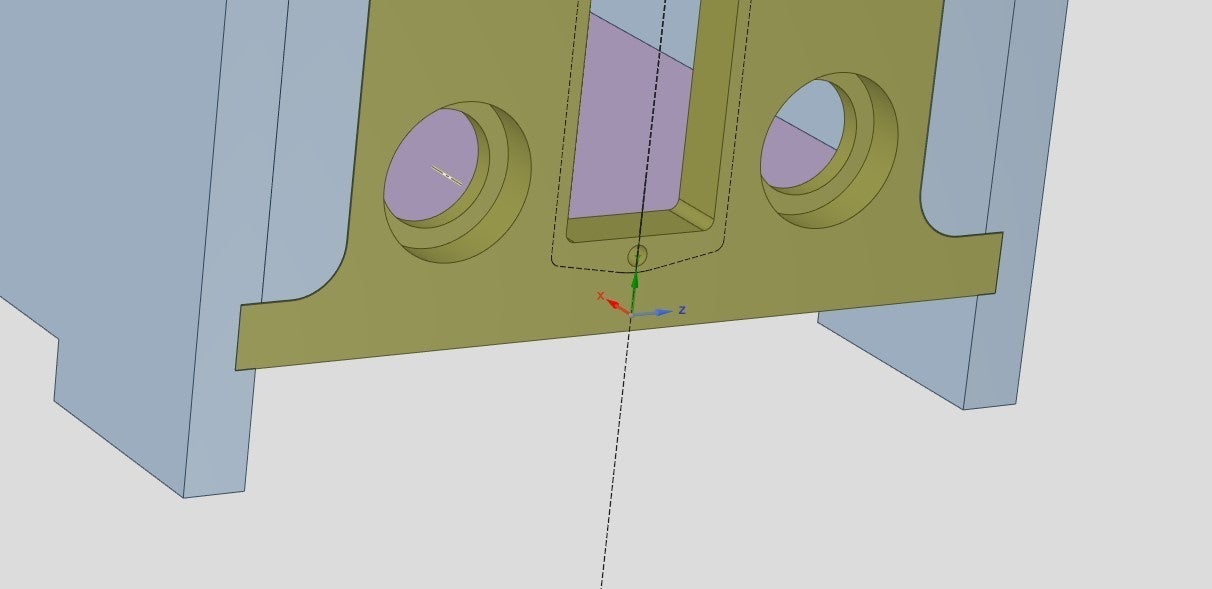

Unfortunately, I was lost the axis with z in vertically. I can turn all my model in 90° degree but in my case it’s my origin who isn’t the good direction. How I use the function origin to turn it ?



[vincent.rouillot]

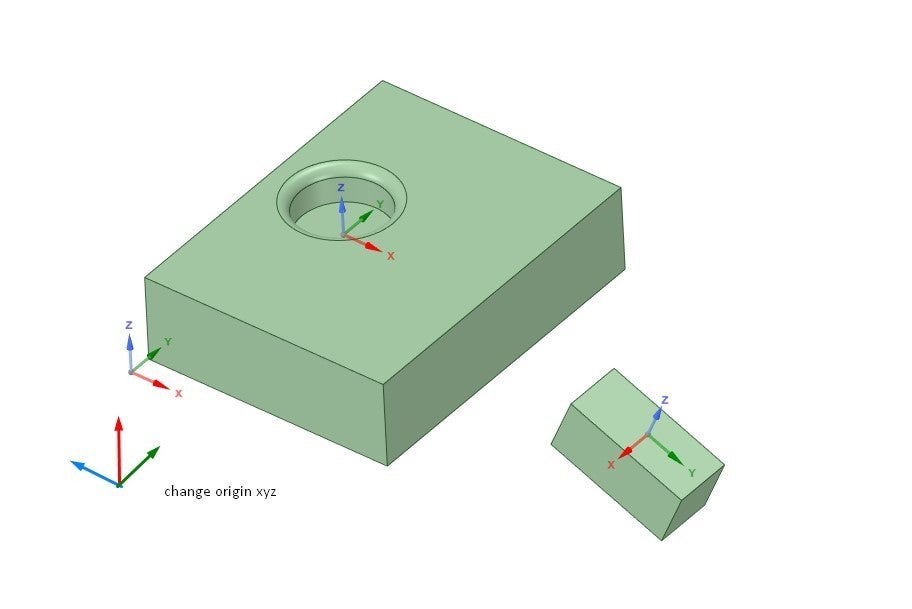

Yes, it's not easy to express myself today, "Conception and the icon created", it's mean The function origin, with the icon xyz bleu, red, green can create the origin but not manipulate the first origin. The way to fix my problem is turn all the object... but it's difficult with assembly constraints.

[Gaurav Sharma]

Vincent Rouillot

I can somewhat understand your concern. Thanks for elaborating it for me.

There are several ways in which the point of creation of origin can be controlled. These are listed here in Help manual. Please have a look and I hope this will help you perform your intended task.

In case you still have a requirement that is not fulfilled, I request you to please create an example mentioning what you intend and what the program is offering. It will be easier for me to provide precise suggestions in that case.

Thanks,

Gaurav

[vincent.rouillot]

Gaurav_ANSYS Thank for your reply, but I can't visit your link. I did not know my client ID to log in. I waiting a email from Ansys. (it's different to the forum).

But for me, You didn't touch or transform the primary origin.

[Gaurav Sharma]

Vincent Rouillot

If you have access to SpaceClaim, place your cursor over “origin” icon and hit “F1” on your keyboard. The corresponding help page should open for you:

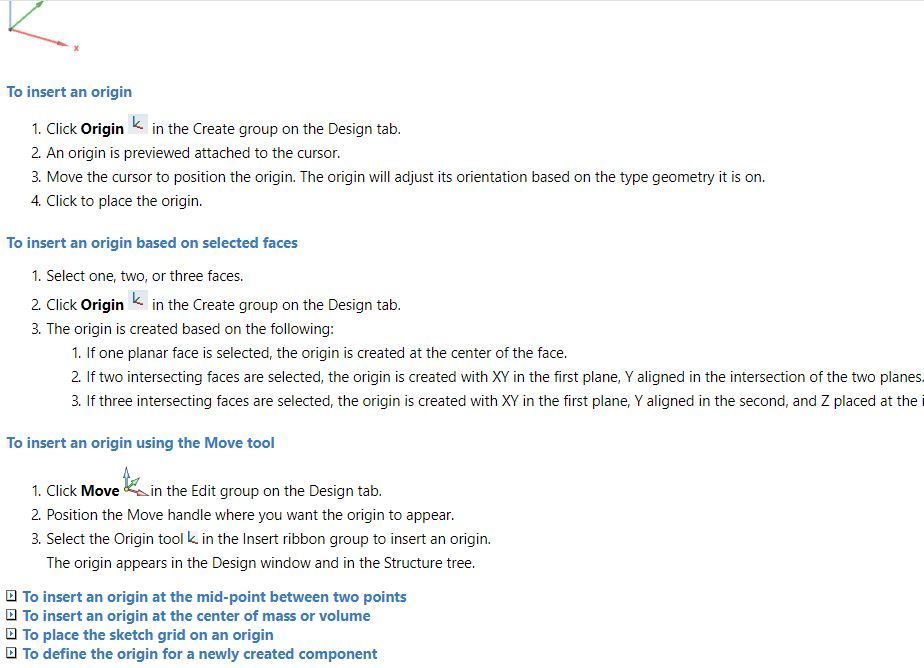

This is how the page looks like:

As mentioned in my previous mail, the help document consists of several ways to manipulate the origin. Which among them is best suited for you, depends on your application/requirement. I am still unable to understand what is your specific problem i.e. what do you desire to achieve by manipulating origin. What steps you are following and what observations are you having. If you can please provide me with more details, I may help you better.

Thanks,

Gaurav
