How can I activate the ACP orientation visualisation icons?

- June 11, 2019 at 7:15 pm

  Mohin
  Subscriber

  Hi,

  When I am clicking on the orientation visualization icons, such as show fiber direction, show orientation, etc., those are not working. How can I activate those icons (shown in picture)?

  Thanks in advance.

  Mohin
- June 11, 2019 at 8:11 pm

  Wenlong
  Ansys Employee

  Hi Mohin,

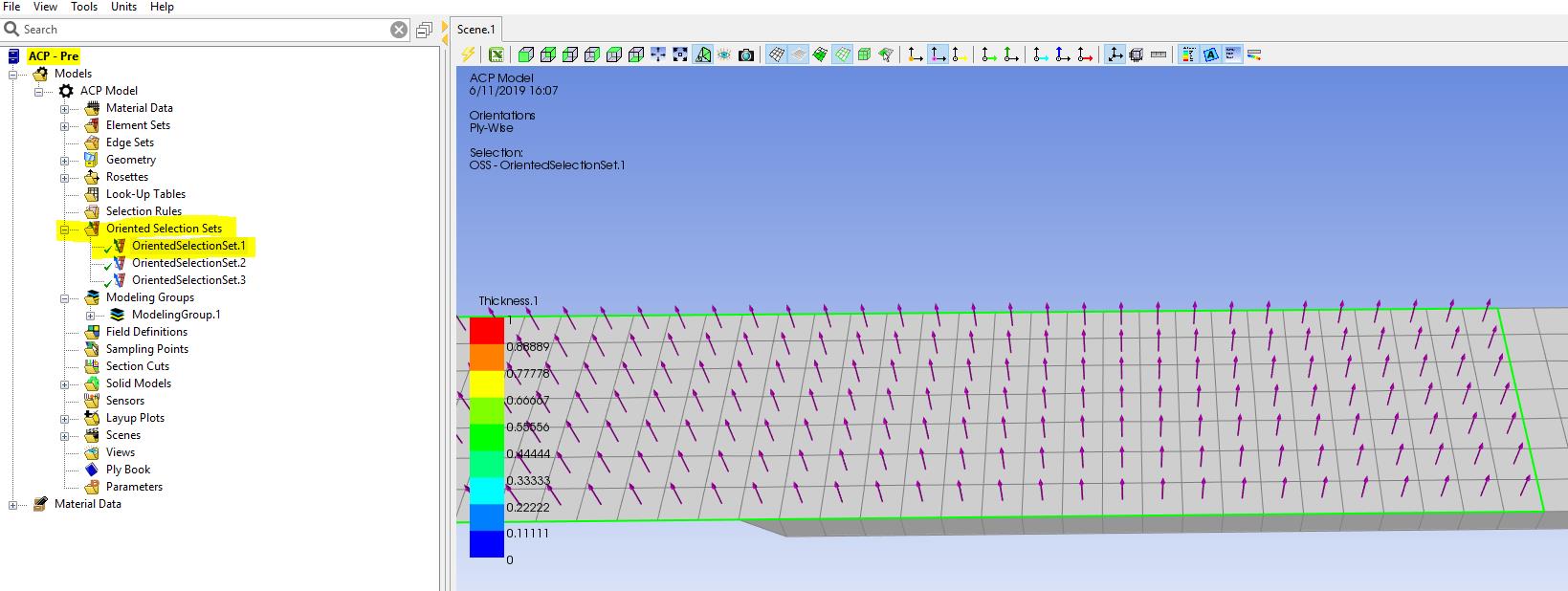

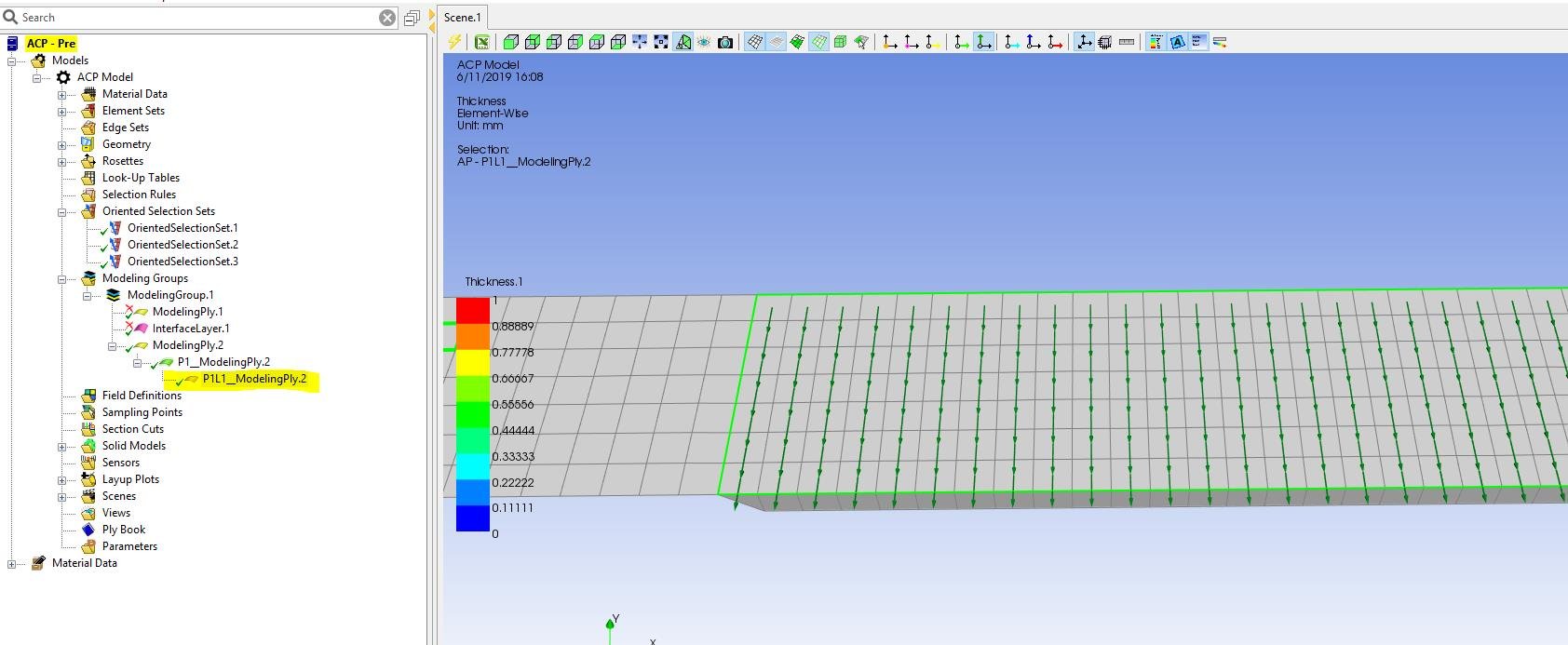

  To highlight the orientation direction or fiber direction, you need to click on the orientation or ply at the left tree (Shown below).

  Bests,

  Wenlong
- June 13, 2019 at 8:39 am

  Mohin
  Subscriber

  Hi Wenlong,

  Thanks for your help. Its working now.

  Regards,

  Mohin
- May 20, 2020 at 6:57 pm

  manmorcan
  Subscriber

  Hi there,

  I have a problem related to that. I did that but it doesn't show the fiber directions.

  Could you help me?

  Thank you
- May 20, 2020 at 7:00 pm

  manmorcan
  Subscriber

  In case I click on orientacion, I doesn't show it neither. I got the same result.
- May 20, 2020 at 7:24 pm

  Mohin
  Subscriber

  Hi manmorcan,

  To highlight the orientation direction or fiber direction, you need to click on the orientation or ply at the left tree.

  Thanks,

  Mohin
