hole in geometry model
-
-
-
Hello,
Could you elaborate on the model? For instance, does your model include an existing hole, and is your goal to leverage symmetry by modeling only a portion, such as 1/4 of the geometry (Please refer to the picture below.)
-

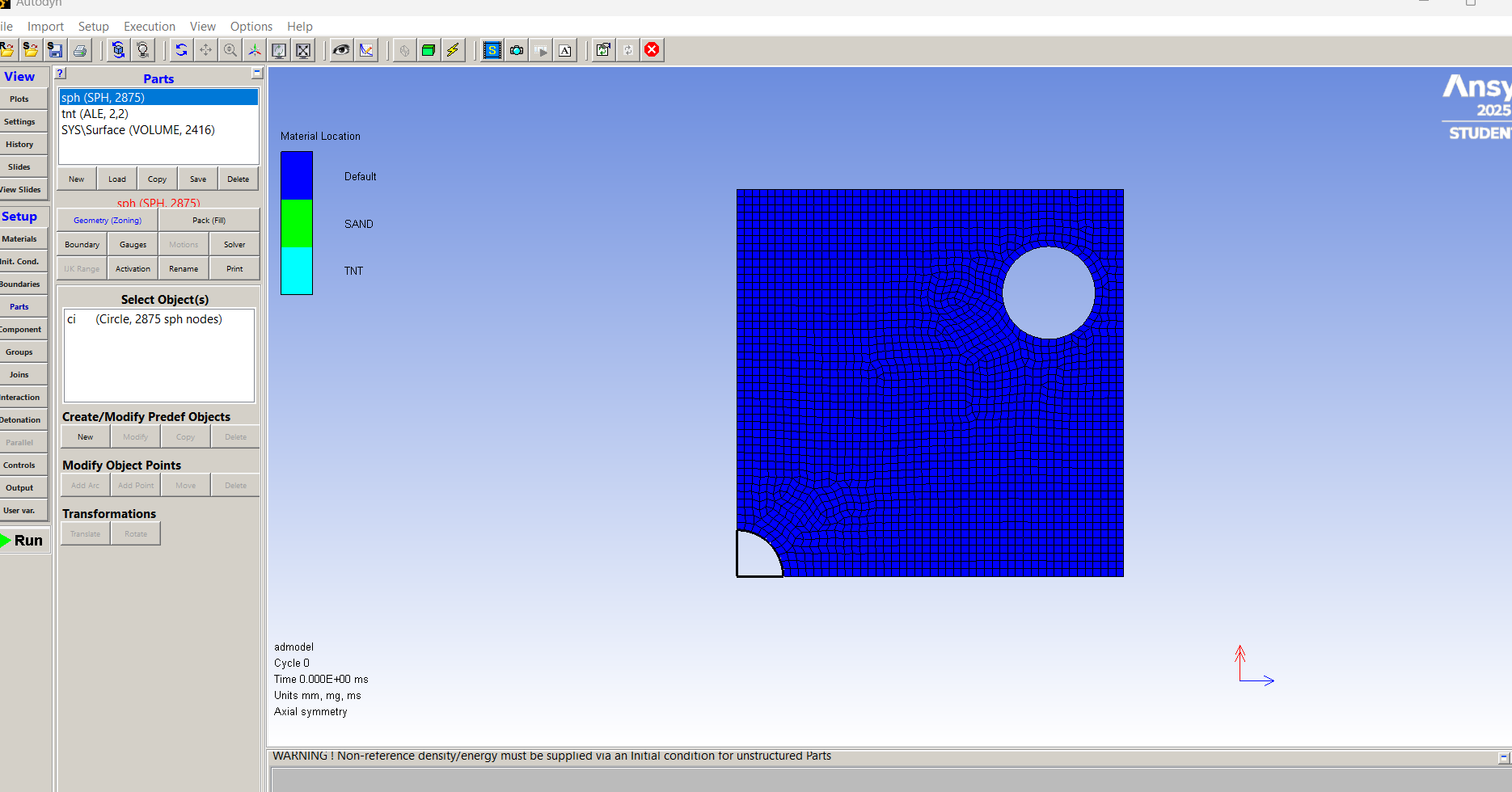

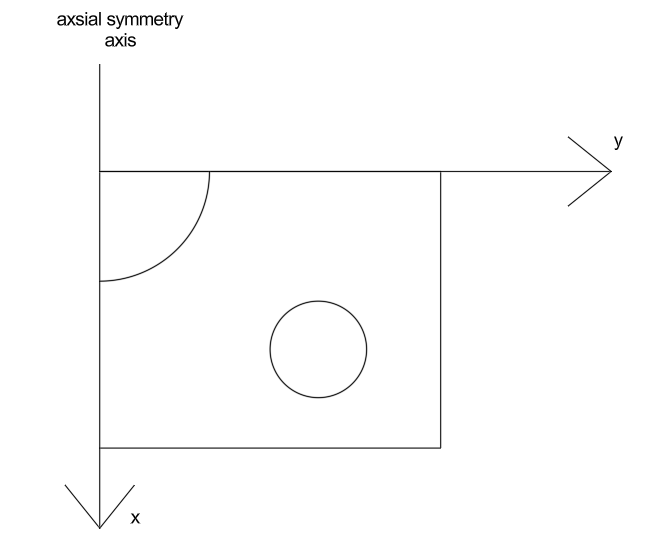

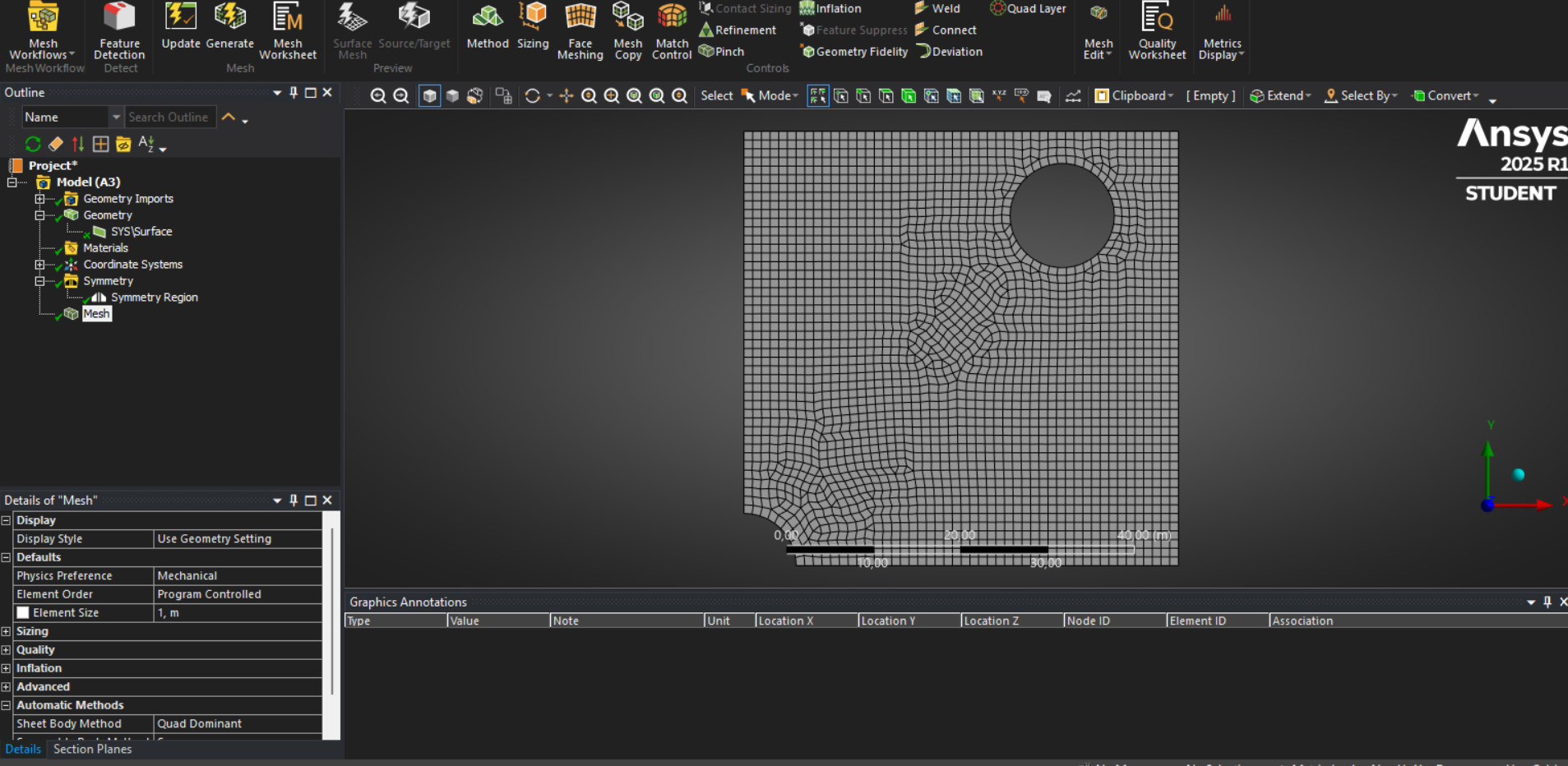

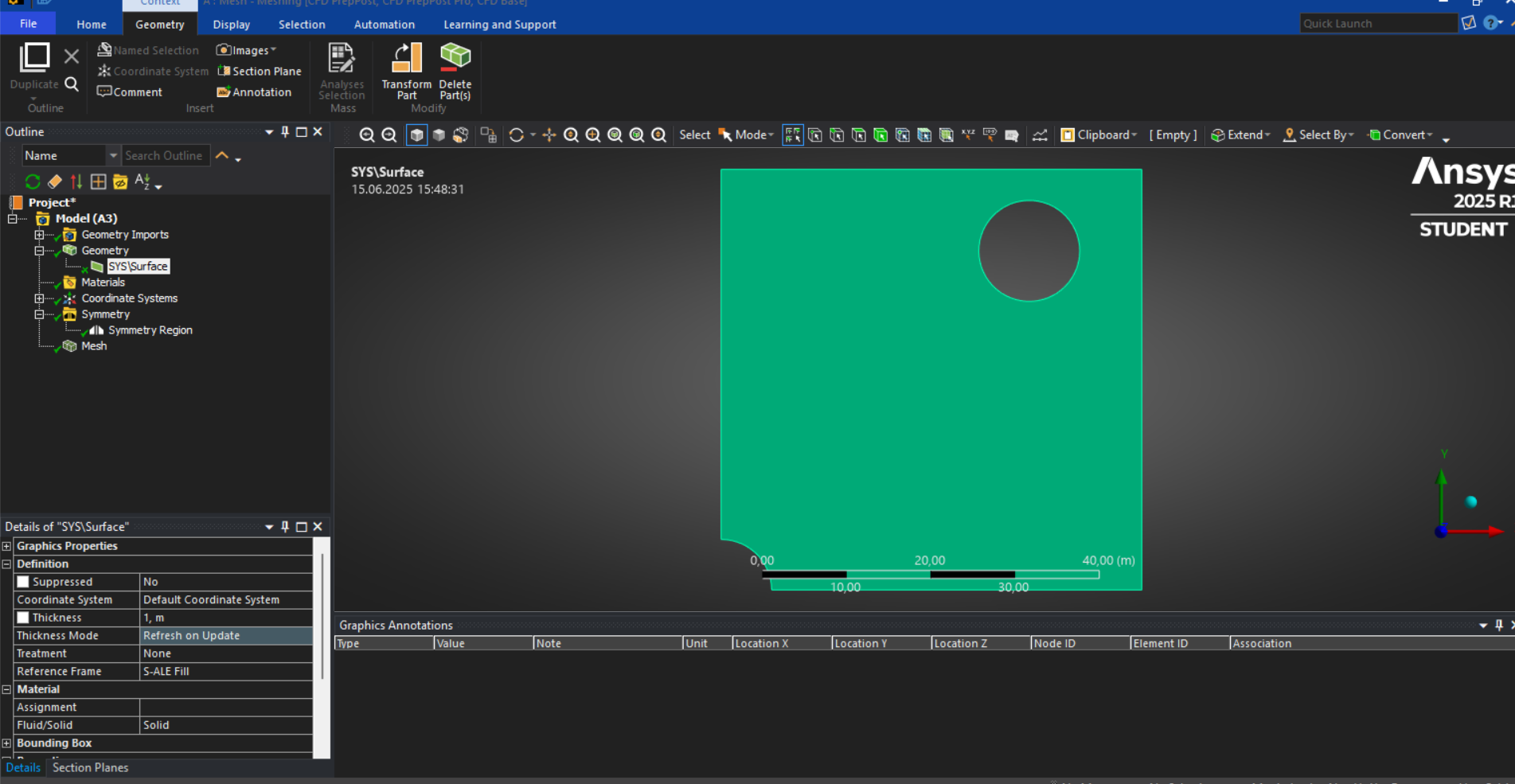

Hi, I want to do circle holes in ma rectangular 2D geometry, bellow I attach a schem. In upper part i am going to do 1/4 cirle hole and use axial symetry.
-

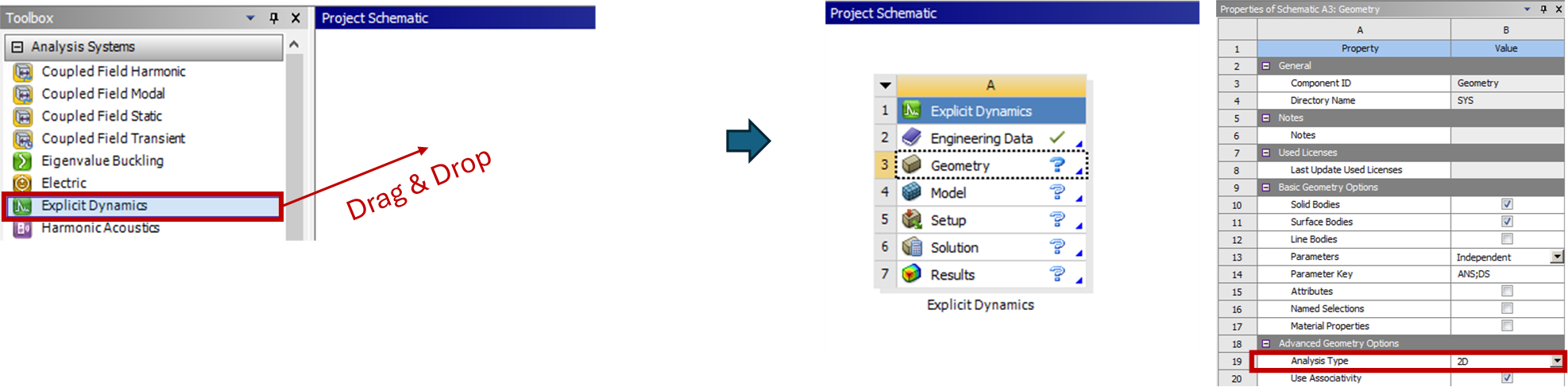

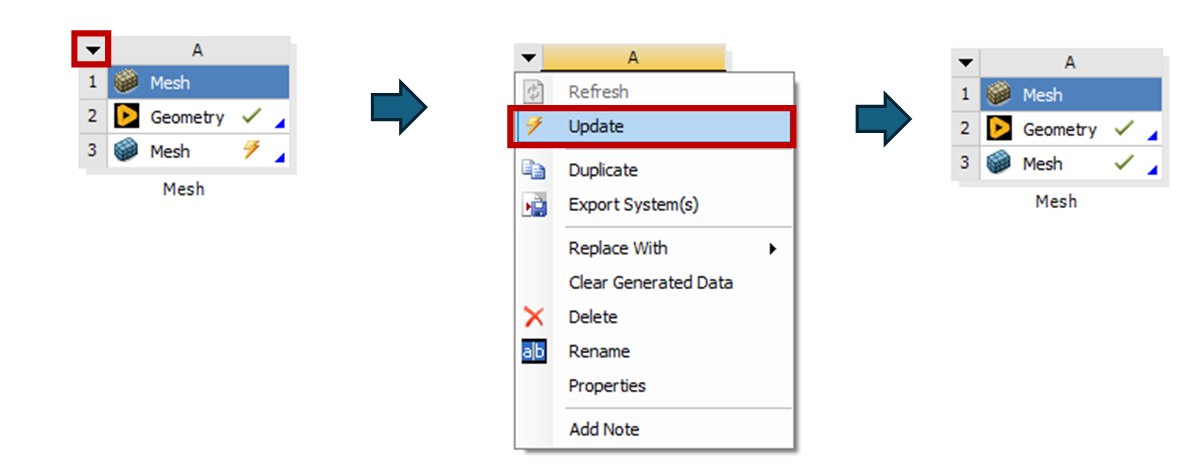

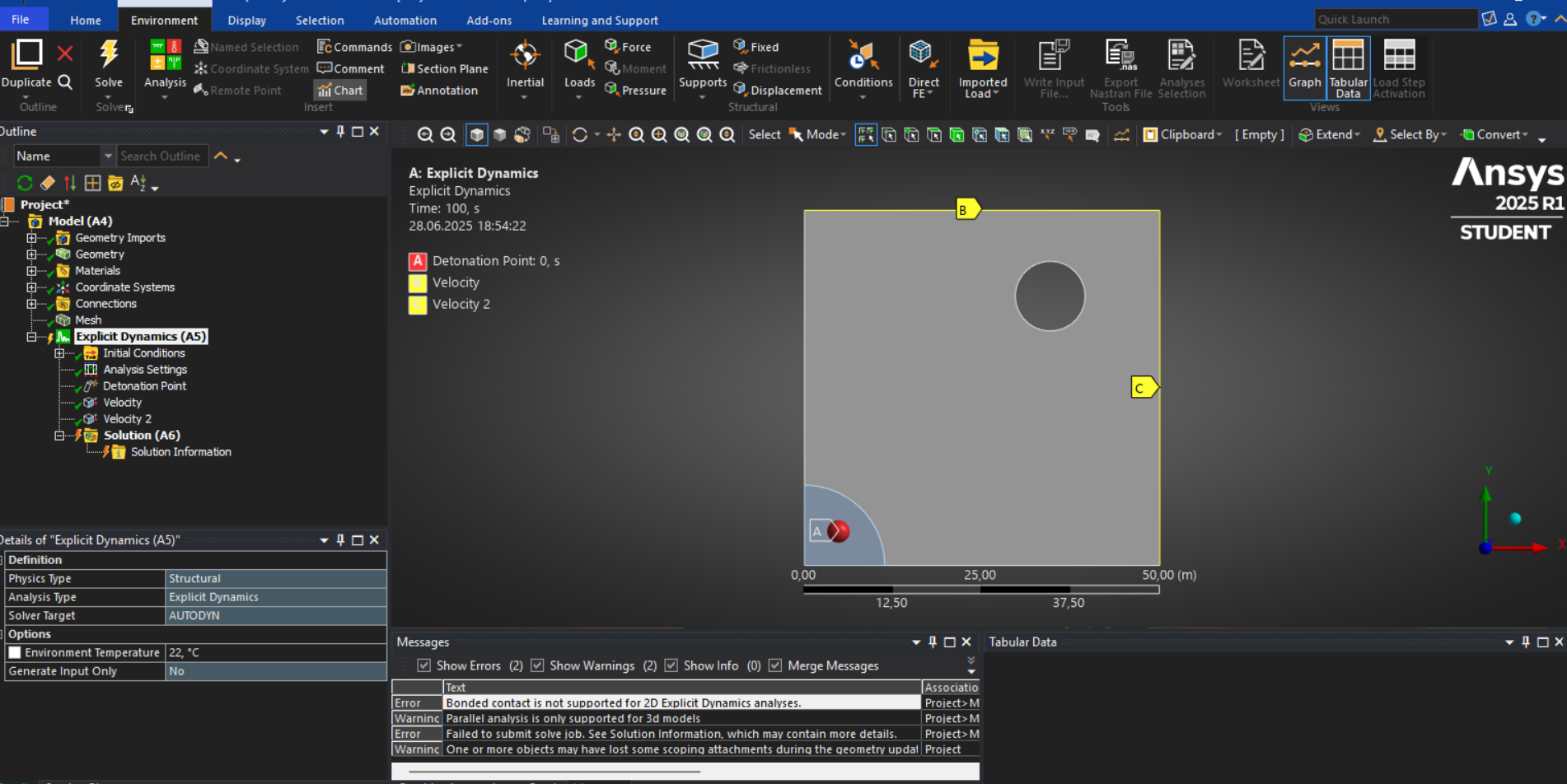

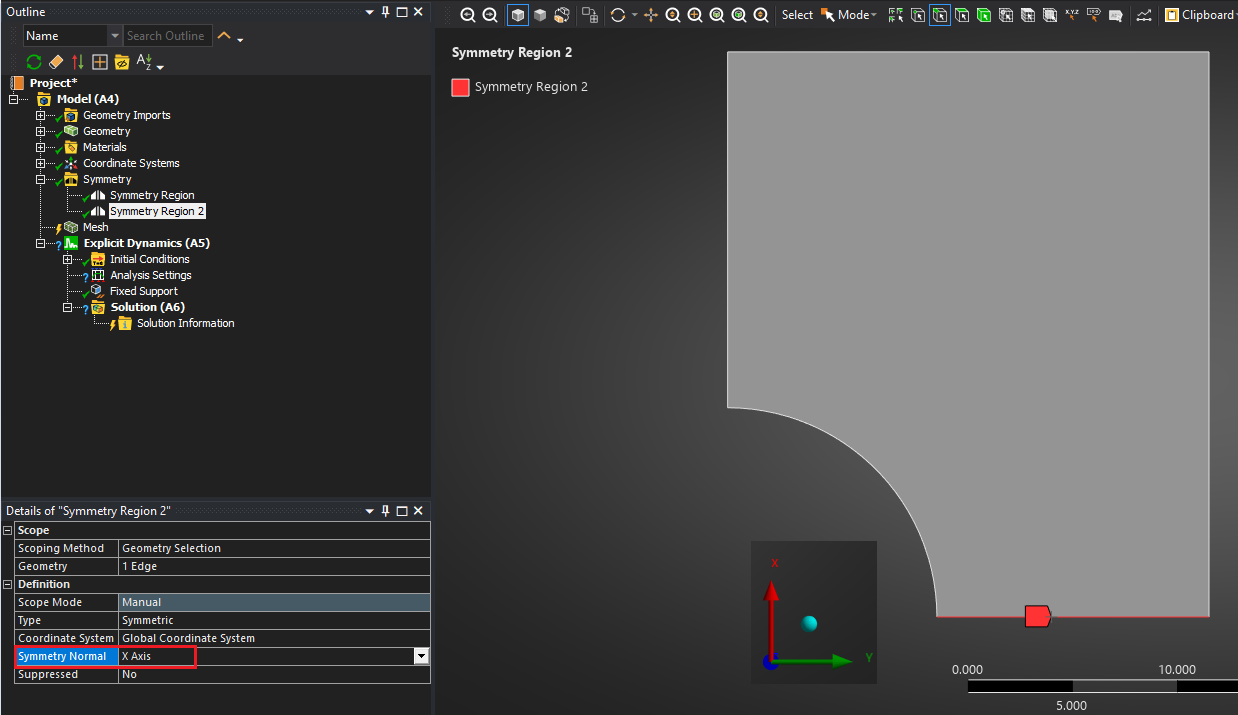

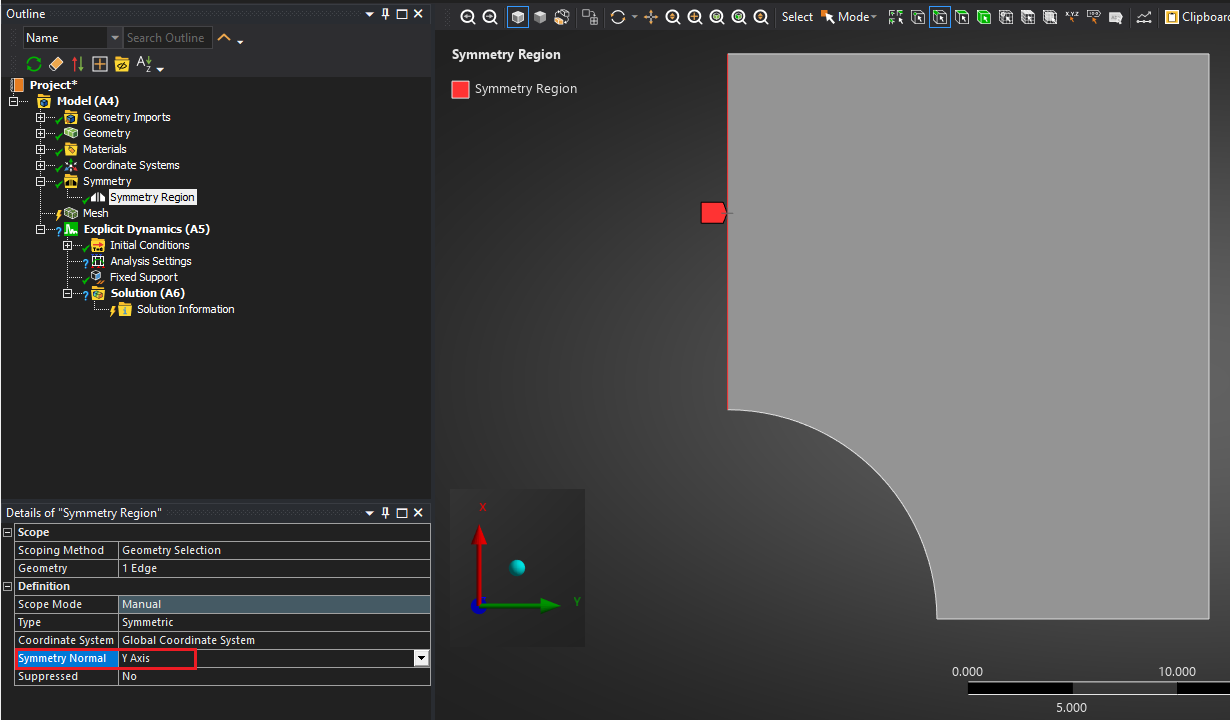

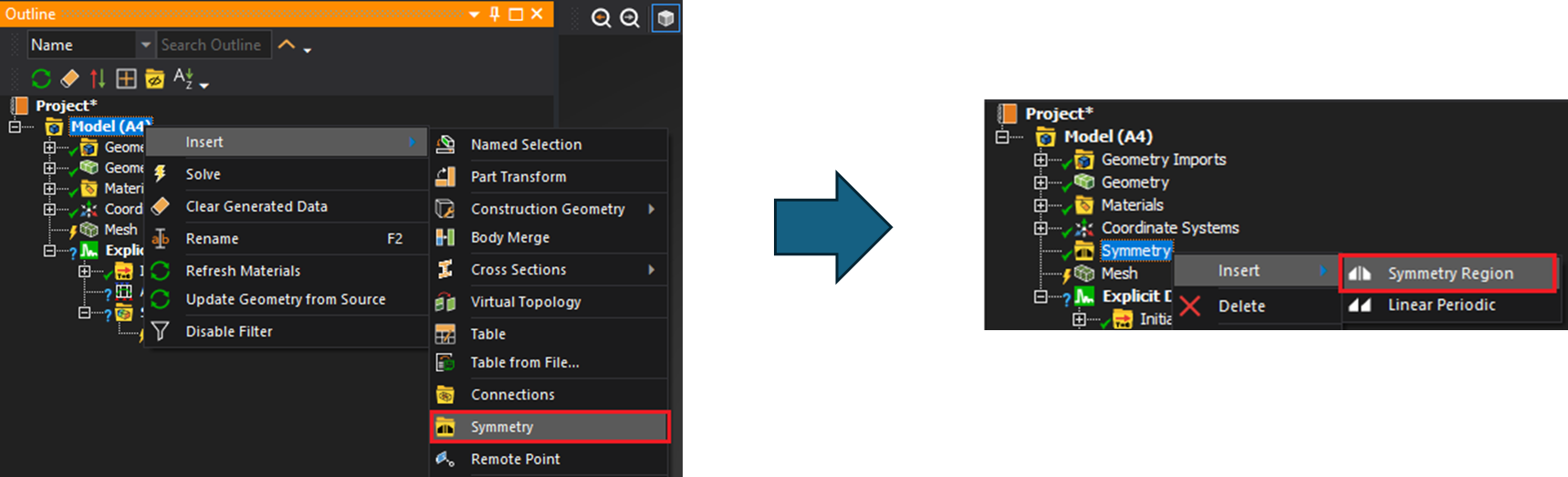

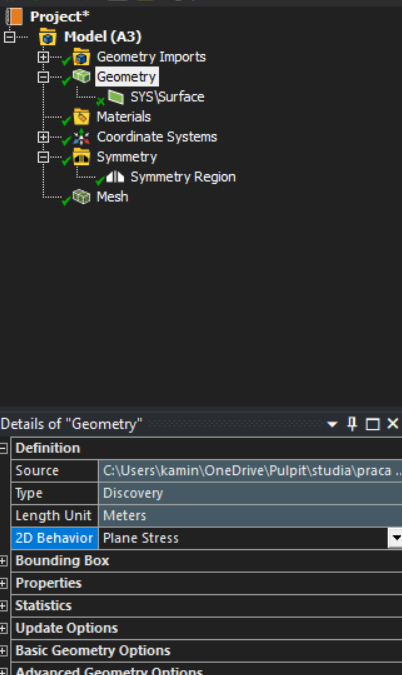

Please refer to the screenshot below for instructions on how to insert a 'Symmetry Region' and assign it to the appropriate edges of the model. Note that the 'Symmetry Normal' must be selected carefully to ensure proper consideration of symmetry.
-
Viewing 3 reply threads
