Face split in design modeler scripting

    • Hussam Khresat
      Subscriber

      Hi all,

      I am trying to apply a face split command to an extruded skecth using design modeler scripting and I am not sure how to do so.

      Attached is my code to create the sketch and extrude it.

      Any help will be greatly appreciated

      //DesignModeler JScript, version: Ansys DesignModeler 2021 R2 (Jun 1 2021, 09:34:08; 21,2021,151,1) SV4
      //Created via: "Write Script: Sketch(es) of Active Plane"
      // Written to: C:\Users\47111601\Downloads\HK_Ansys\HK_Ansys2021\SYS-2.js
      // On: 02/06/24, 23:16:48
      //Using:
      // agb ... pointer to batch interface

      //Note:
      // You may be able to re-use below JScript function via cut-and-paste;
      // however, you may have to re-name the function identifier.
      //

      function planeSketchesOnly(p) {

          //Plane
          p.Plane = agb.GetActivePlane(); // Retrieve the YZ plane
          var YZPlane = agb.GetYZPlane();

          // Set YZ plane
          p.Plane = YZPlane;
          p.Origin = p.Plane.GetOrigin();
          p.XAxis = p.Plane.GetXAxis();
          p.YAxis = p.Plane.GetYAxis();

          //Sketch
          p.Sk1 = p.Plane.NewSketch();
          p.Sk1.Name = "Sketch1";

          //Edges
          with(p.Sk1) {
              p.Ln7 = Line(0.00000000, 6.00000000, 0.20465000, 6.00000000);
              p.Ln8 = Line(0.20465000, 6.00000000, 0.20465000, -6.00000000);
              p.Ln9 = Line(0.20465000, -6.00000000, -0.20465000, -6.00000000);
              p.Ln10 = Line(-0.20465000, -6.00000000, -0.20465000, 6.00000000);
              p.Ln12 = Line(0.00000000, 6.00000000, -0.20465000, 6.00000000);
          }

          //Dimensions and/or constraints
          with(p.Plane) {
              //Dimensions
              var dim;
              dim = HorizontalDim(p.Ln7.Base, 0.00000000, 6.00000000,
                  p.Ln7.End, 0.20465000, 6.00000000,
                  0.35164860, 8.54551913);
              if (dim) dim.Name = "H1";
              dim = HorizontalDim(p.Ln9.Base, 0.20465000, -6.00000000,
                  p.Ln9.End, -0.20465000, -6.00000000,
                  0.02566448, -7.24440432);
              if (dim) dim.Name = "H4";
              dim = VerticalDim(p.Origin, 0.00000000, 0.00000000,
                  p.Ln7.End, 0.20465000, 6.00000000,
                  0.88851166, 5.68672685);
              if (dim) dim.Name = "V2";
              dim = VerticalDim(p.Ln8.Base, 0.20465000, 6.00000000,
                  p.Ln8.End, 0.20465000, -6.00000000,
                  1.32459557, 0.28560604);
              if (dim) dim.Name = "V3";

              //Constraints
              HorizontalCon(p.Ln7);
              HorizontalCon(p.Ln9);
              HorizontalCon(p.Ln12);
              VerticalCon(p.Ln8);
              VerticalCon(p.Ln10);
              CoincidentCon(p.Ln7.Base, 0.00000000, 6.00000000,
                  p.YAxis, 0.00000000, 4.48815214);
              CoincidentCon(p.Ln8.Base, 0.20465000, 6.00000000,
                  p.Ln7.End, 0.20465000, 6.00000000);
              CoincidentCon(p.Ln9.Base, 0.20465000, -6.00000000,
                  p.Ln8.End, 0.20465000, -6.00000000);
              CoincidentCon(p.Ln10.Base, -0.20465000, -6.00000000,
                  p.Ln9.End, -0.20465000, -6.00000000);
              CoincidentCon(p.Ln12.Base, 0.00000000, 6.00000000,
                  p.Ln7.Base, 0.00000000, 6.00000000);
              CoincidentCon(p.Ln12.End, -0.20465000, 6.00000000,
                  p.Ln10.End, -0.20465000, 6.00000000);
              EqualLengthCon(p.Ln10, p.Ln8);
          }

          p.Plane.EvalDimCons(); //Final evaluate of all dimensions and constraints in plane
          // Extrude the sketch only in the X-direction
          var ext1 = agb.Extrude(agc.Add, p.Sk1, agc.DirX, agc.ExtentFixed, 72, agc.ExtentFixed, 0.0, agc.No, 0.0, 0.0);
          agb.Regen(); // Regenerate the model to ensure validity

          return p;
      } //End Plane JScript function: planeSketchesOnly

      //Call Plane JScript function
      var ps1 = planeSketchesOnly(new Object());



    • mjmiddle
      Ansys Employee

      DesignModeler is in maintenance mode. Have you considered using SpaceClaim to do your geometry modifications inside Ansys applications?

      The only script type that DM records is jscript and only in sketch mode. When they were first implementing sripting in workench application, they decided on python interpreter. And they started implementing python scripting in DM, but it was soon-after placed into maintenance mode, so they stopped the work on python scripting implementation DM. So there is some python scipting ability in DM, but it's not developed to the degree of Mechanical, SpaceClaim, or workbench. This is an old course in the Ansys Learning Hub:

    • mjmiddle
      Ansys Employee

      You can have a python script and run your jscript code:

      Must be in an extension scope when running from the ACT console for the ExecuteCommand to exist. Example:
      ExtAPI.Application.ScriptByName("jscript").ExecuteCommand(jscript_command_string)

    • mjmiddle
      Ansys Employee

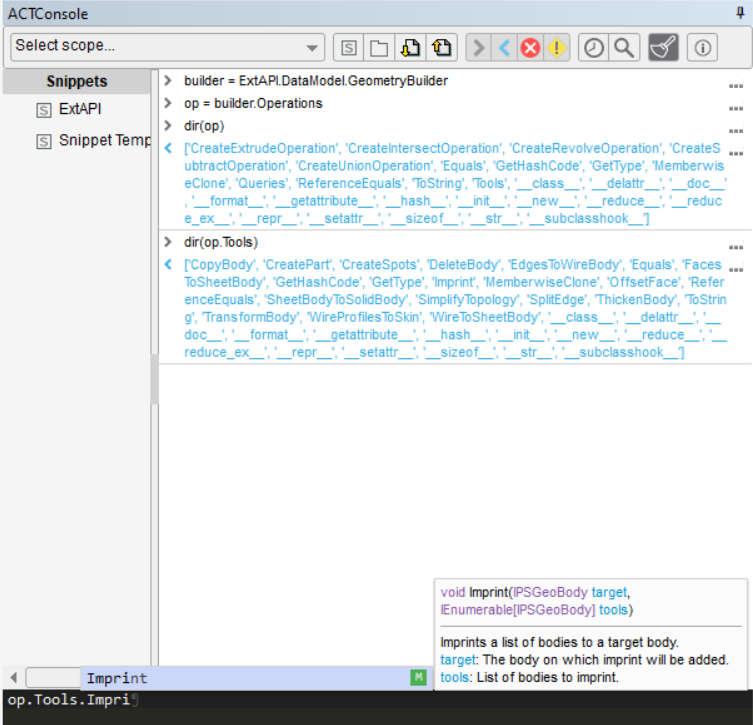

      Within an ACT extension inside DM, it may be possible to split a face using the imprint under ExtAPI.DataModel.GeometryBuilder.Operations.Tools:

      Or maybe the face split could be done as a slice.

      The only way to do a slice in batch, as part of a user-defined feature in an ACT extension, is to do it as part of an extrude or sweep operation, since you can choose the option to slice while extruding or sweeping:
      feature.MaterialType = MaterialTypeEnum.Slice
      Example called by :

      def generateSlice(feature, fct):
          builder = ExtAPI.DataModel.GeometryBuilder

          bodies=[]
          squarePri = builder.Primitives.Sheet.CreatePolygon([0.,0.,0.,1.,0.,0.,1.,0.,1.,0.,0.,1.])
          # You can apply the extrude to a sketch, line body, face, or surface body
          squareBody = squarePri.Generate()
          feature.MaterialType = MaterialTypeEnum.Slice
          extrudeOperation = builder.Operations.CreateExtrudeOperation([0.,1.,0.],15.)
          #extrudeOperation.Depth
          #extrudeOperation.Direction
          #extrudeOperation.Walled
          extrudeBodies = extrudeOperation.ApplyTo(squareBody)
          # doesn't seem to be a way to slice through only target bodies
          bodies.extend(extrudeBodies)
          feature.Bodies = bodies
          return True

      Or it may be possible to make some python commands to insert the native "Face Split" feature you would see in the Outline and set selections and any other necessary options, but I don't see an examples of this done yet.
