Face-Face Inconsistency

- March 6, 2019 at 8:27 am

  Harshit Pandey
  Subscriber

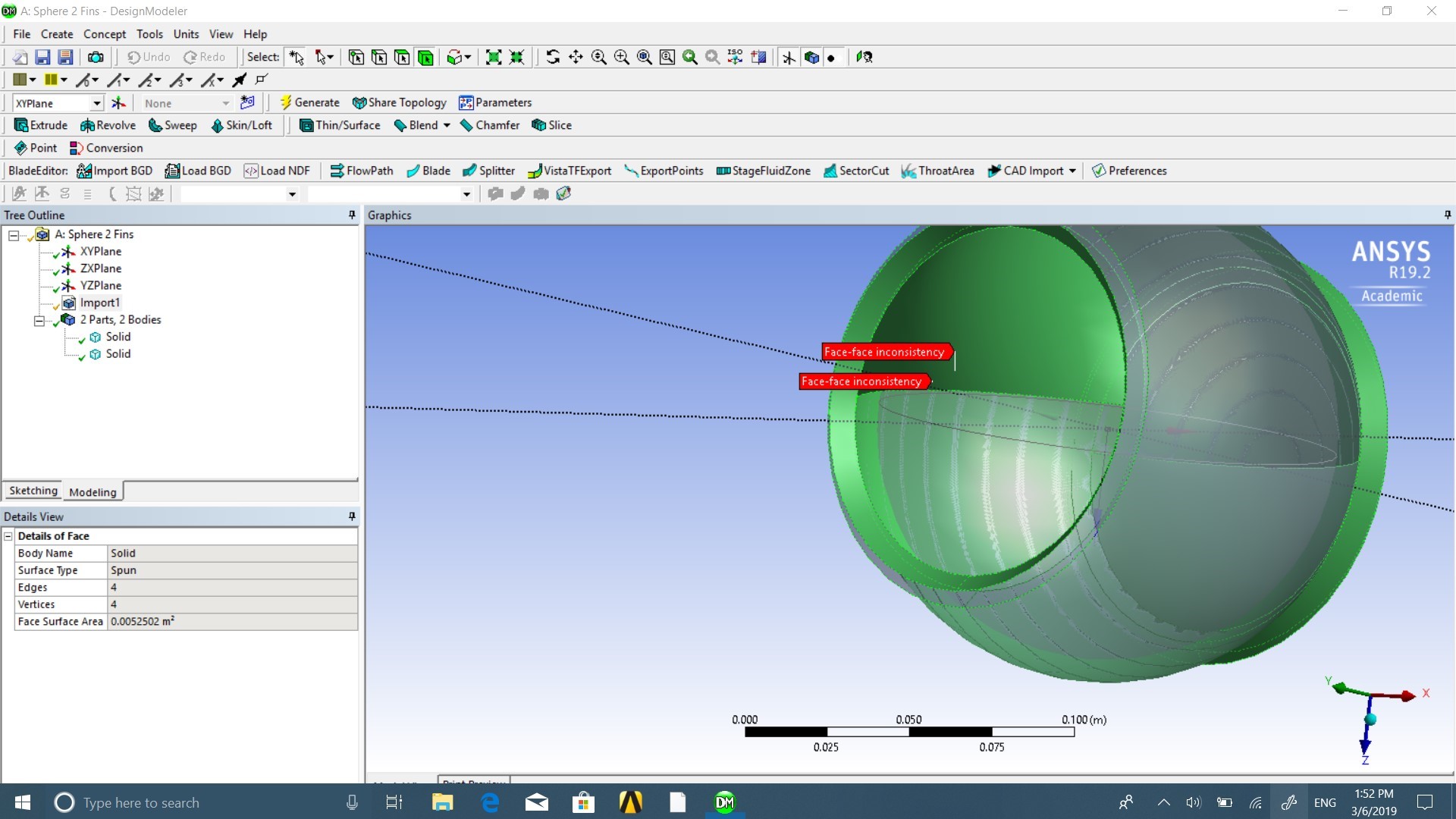

  As shown in the image, this geometry has been imported from Solidworks in IGES format. It shows Face-Face inconsistency while I import it in Ansys Academic'19 in Design Modeler. Please tell me possible issues and solution for it?

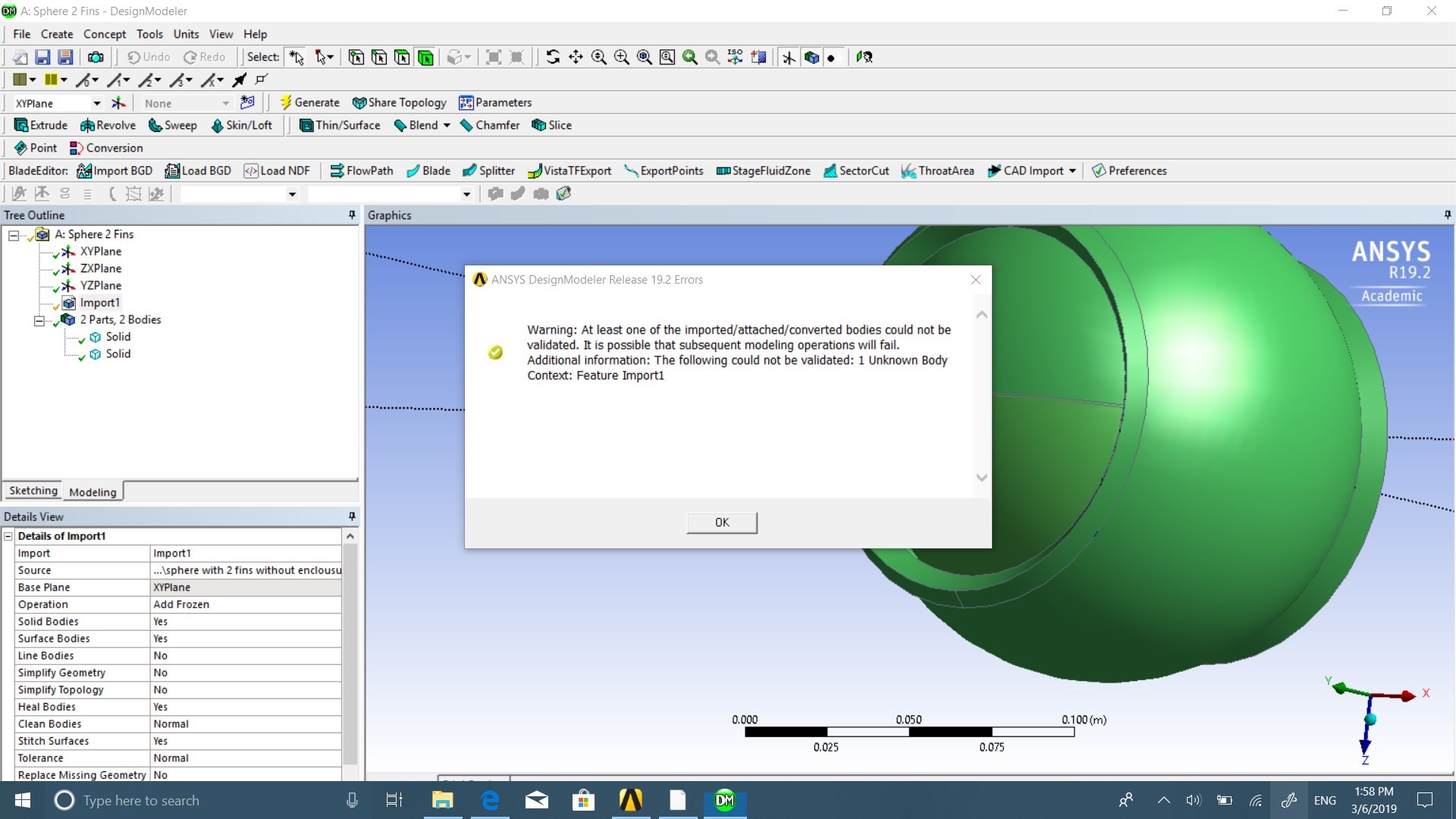

  It shows following message:

  The figure consists of Sphere with 2 fins around it.
- March 6, 2019 at 10:14 am

  Rob
  Forum Moderator

  You've got two solid bodies there, and may have lost the fins. The warning means something isn't "correct" but you'll need to look very carefully to see if there's anything missing or mangled by the CAD translators.
- March 6, 2019 at 12:26 pm

  peteroznewman
  Subscriber

  Don't use IGES. Save As Parasolid from SolidWorks and Import that into DM, then there will be no translation issue.

Viewing 2 reply threads

The topic ‘Face-Face Inconsistency’ is closed to new replies.
