Extracting Nodal results along the path

- May 20, 2022 at 5:41 pm

  Sand_1234
  Subscriber

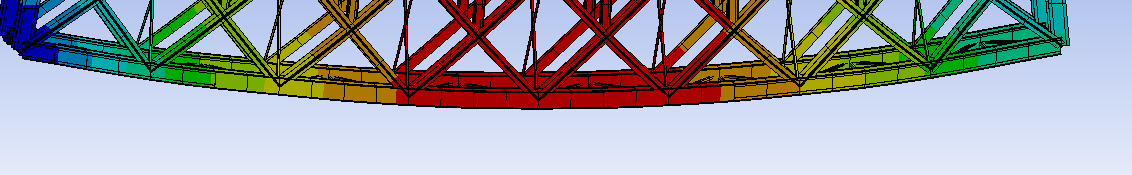

  Hi all My model is constructed with a line body. Please see attached bottom chord of the truss bridge model.
  I want to extract nodal displacement result along the path from left to right (bottom chord). Could someone please help me. I am using Ansys Mechanical 2021.
  Thank you.
- May 20, 2022 at 5:49 pm

  ErKo
  Ansys Employee

  Hi

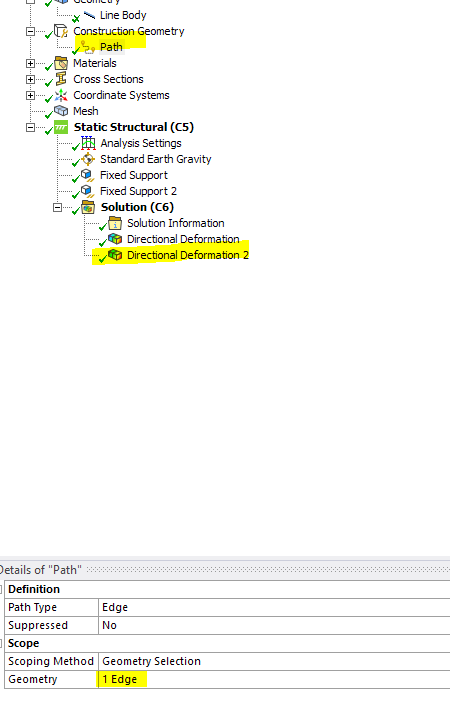

  Define a path as shown and scope it to the edges:

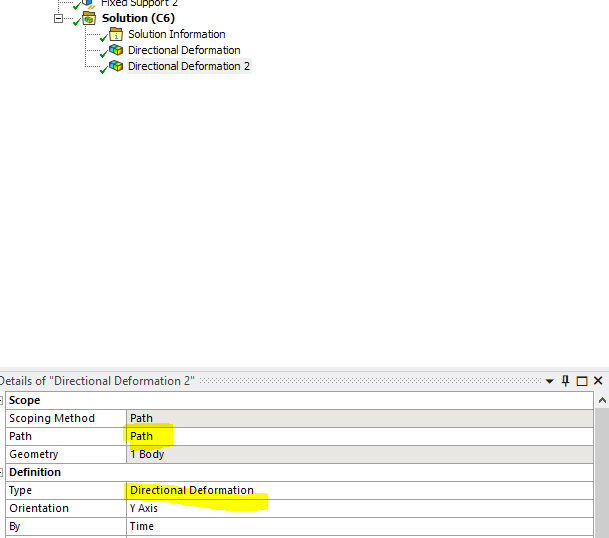

  Then scope the path in the results:

  Erik
- May 23, 2022 at 3:02 pm

  Sand_1234
  Subscriber

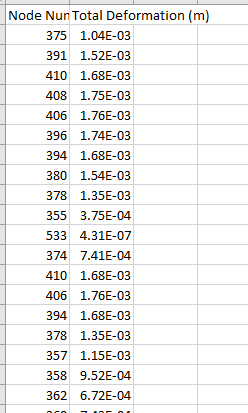

  Hi Erik Thank you for the information. I was able to extract the results along the length. Now I want to extract the nodal results from left to right (393-390-392........). The node umbers are not in order from left to right in the result I extracted. Please see attached figures.
  Sand
- May 24, 2022 at 6:45 am

  ErKo
  Ansys Employee

  Hi

  See if this helps (exports nodal coordinates with results).
  Then in excel do a custom sort based on the column with the coordinate of interest and sort all the results.

  If this does not work you would need to script something in either act or apdl/snippets.
  All the best

  Erik
