Hi all,

I got an error regarding importing CAD file into Fluent meshing.

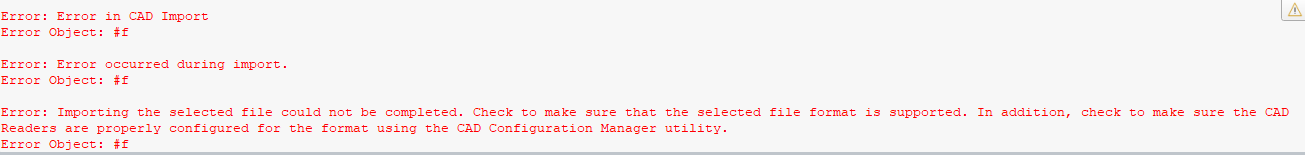

hat I did is to make a model using SpaceClaim and imported that file into Fluent meshing so that I could make an appropriate number of meshes and run a simulatison. But, the problem is when I import model file, I got an issue shown below.

[pyg0511]

I don't know why there are lots of typos. But maybe can understand what I am dealing with.
Best wishes.
Younggi

[Keyur Kanade]

Please check geometry in SpaceClaim.
Select geometry in structure tree --> Use right click --> Select Check Geometry. (Or Tools - Fault Detection in DM)
The geometry should be error free to proceed.
If geometry has any errors, please modify/recreate geometry at those places.
The error may be due to CAD configuration is not done correctly.
You can check following links
CAD Configuration Manager not installed ÔÇö Ansys Learning Forum
CAD Configuration Manager (ansys.com)
Regards Keyur
How to access Ansys Online Help Document
Guidelines on the Student Community

[Rob]

Can you also post the rest of the error message. I've seen a licence problem with SpaceClaim, but Step files import OK.
