Hi,

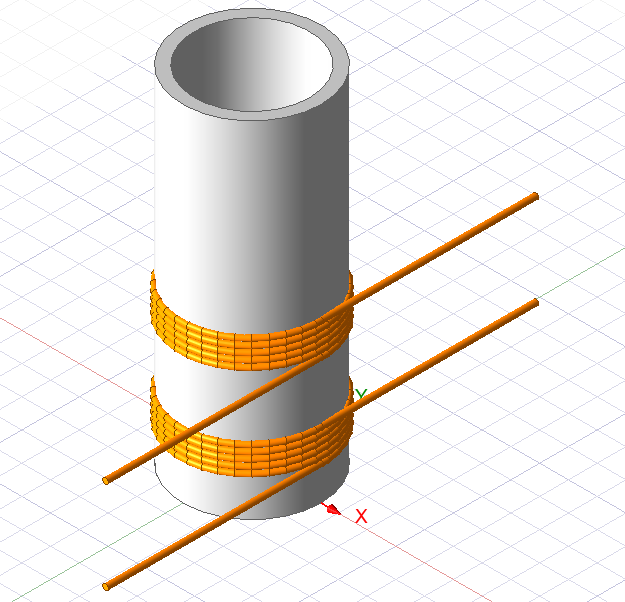

I am trying to make a design where copper coils are wrapped around a cylindrical Iron tube. the outer radius of the Iron tube is 12mm and the Helix Radius of the copper wire is 12mm. Real-life application would require the copper to be physically in contact with the iron core tube. How can I solve this error? Thanks

*Global - Messages
  [info] GRPC server running on port: 50051.
Permanent Magnet Analysis ONLY 1 (C:/Users/user/OneDrive - National University of Ireland, Galway/Documents/Ansoft/)
  Maxwell3DDesign1 (Magnetostatic)
    [error] Parts Cylinder6 and Cylinder8 intersect. (10:28:02 AM  Jan 15, 2025)
    [error] Parts Cylinder4 and Cylinder8 intersect. (10:28:02 AM  Jan 15, 2025)

[Ivonne Marti]

Hi, Based in your description both objects will intersect at 12mm, I would advise to have a small gap between the tube and the wire. This space can be small, like 0,1 or 0,05mm, ensuring that both will not intersect.

I hope it helps

Ivonne

[J.MURPHY104]

Hi Ivonne, thank you for the swift reply.

Will thee simulation still be accurate if it is not modelled as it will be in real life? i.e. That the copper coils with current running through them to create an electromagnet will be enhanced by the iron core tube as they are in direct contact vs them not being in contact.

Thanks

[Ivonne Marti]

Hi,
