Creating a curve line along the wavy fin wall surface, to plot pressure graph on that line.

- February 28, 2022 at 5:06 pm

  Shubham Sathe
  Subscriber

  Hello,

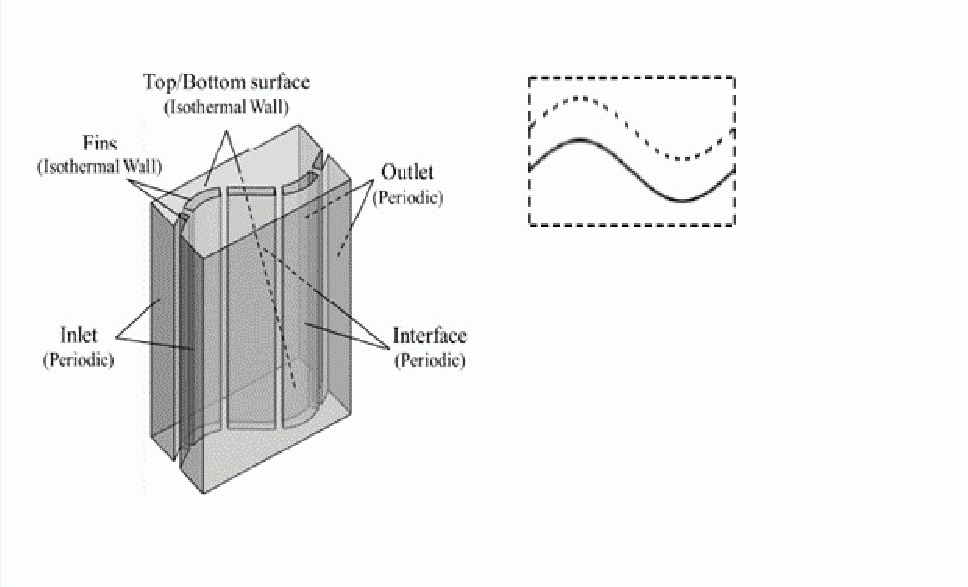

  I am simulating, a wavy fin channel. The boundary conditions are shown in the figure below.
- March 1, 2022 at 12:42 pm

  Nikhil N
  Subscriber

  Hello,

  Can you share the screenshots directly and not attached the image files? Ansys employees are not permitted to download any attachments.
  However, plotting on curved line is possible in CFD Post by creating a 'Polyline'. For more details, refer to the link: 12.1.10. Polyline Command (ansys.com)

  Nikhil
- March 1, 2022 at 4:11 pm

  Shubham Sathe
  Subscriber

  Thank you so much for the response.
  I need to plot a graph showing the pressure, along the fin wall at the midplane represented by the dark line in the right image below: The left images shows the boundary line. Can this be done by polyline command?

  Once again thank you so much for the help.
- March 1, 2022 at 4:33 pm

  Rob
  Forum Moderator

  In Fluent if you pick the wall when creating an iso-surface you'll get a line that's the intersection. Depending on the labelling that should get you what you want.

Viewing 3 reply threads

The topic ‘Creating a curve line along the wavy fin wall surface, to plot pressure graph on that line.’ is closed to new replies.
