Contours on the planes

- March 15, 2022 at 12:55 pm

  Lukas
  Subscriber

  Hello,

  I see in the release notes for 2022R1, that I can create contours on the planes. However I am not able to utilize it in the software. When I create a plane, I do not see any colorful circle in the model tree. What is the correct step by step procedure to do that? Thank you.

  Best Regards

  Lukas Krupa
- March 15, 2022 at 1:16 pm

  subashni.satish
  Forum Moderator

  Hello Lukas

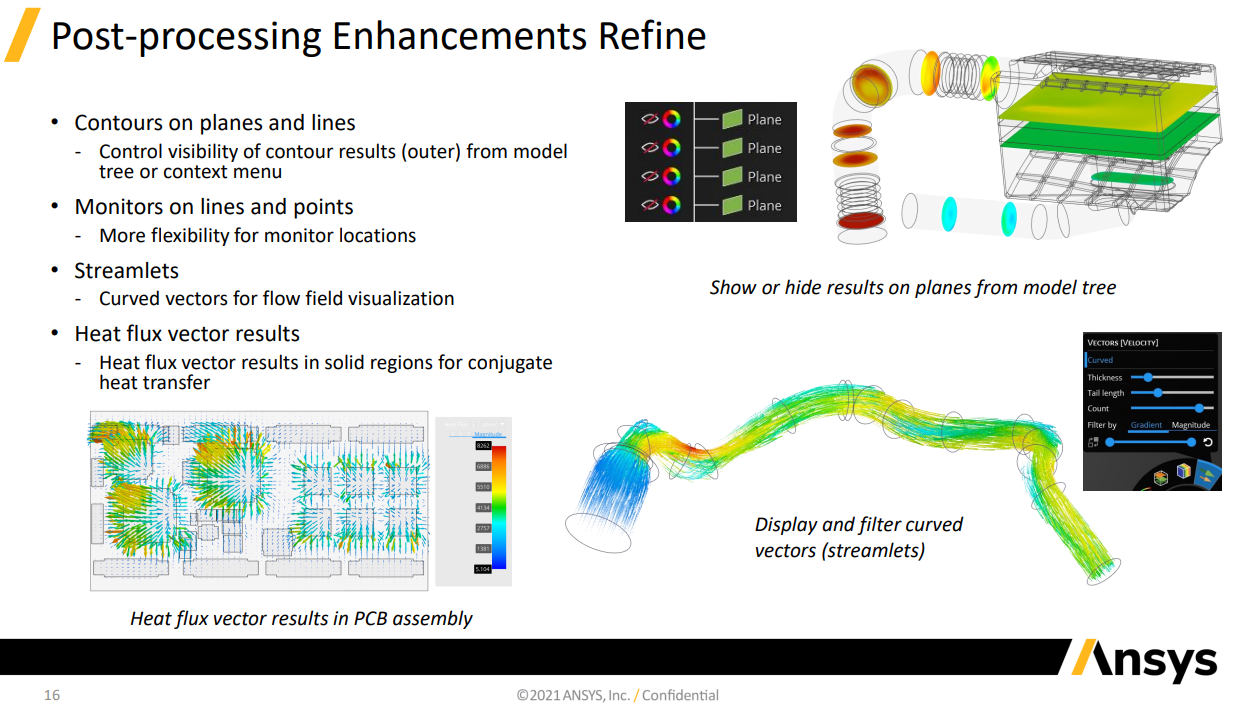

  Please check the #2 Quick Tip in the What's New in Discovery 2022 R1 page on Results on Lines and Planes.

  The little circle on the Structure tree appears only when the simulation is complete.
  The circle allows you to turn on/off the result display for each individual component on the Structure tree.

  Let me know if you still face an issue seeing the result display circles in the Structure tree.
- March 15, 2022 at 1:26 pm

  subashni.satish
  Forum Moderator

  Also please note, this feature is available only in the Refine mode.
  - March 15, 2022 at 1:50 pm

    Lukas
    Subscriber

    Subashni ok, that´s explanation. My fault, it´s written on the slide ;)
